Help CenterExpress Dump Tipping Trailer 30 M3/ Agricultural Tractors Trailers
Related Products
-
Tractors Dump Tipping Trailer 30 M3/ Tractor TrailerUS$ 1,200 - 2,500MOQ: 10 Sets -
Leader Factory on Line Tandem Box Trailers/ Dump Container TrailerUS$ 1,200 - 2,500MOQ: 10 Sets
-
Professional Dump Tipping Trailer 30 M3/ Farm Trailer | Tipping Trailer |10tons TrailerUS$ 1,200 - 2,500MOQ: 10 Sets
-
7CX-4.0farm Tipping Trailer for WholesalesUS$ 500 - 8,000MOQ: 1 Set
-
7CBX-3.0 Farm Tipping Trailer Made in ChinaUS$ 500 - 8,000MOQ: 1 Set
Dump trailers
Trailer apply to the plains, mountains, swamps, hills, farmland job, and the use of different areas, such as the environment of road transport,of different forms and different types of supporting the use of tractors,
making full use of and played a tractor traction capabilities,in the trailer on the basis of,
I broaden the company produces various types of machinery and hydraulic tipping trailer, improved operating efficiency.With good facilities, structure, strong, handsome in appearance, reliable braking, using a secure, stable running, great potential for loading, easy maintenance and durability, set field operations and road transportation in one, a good tool to get rich plains, mountains..

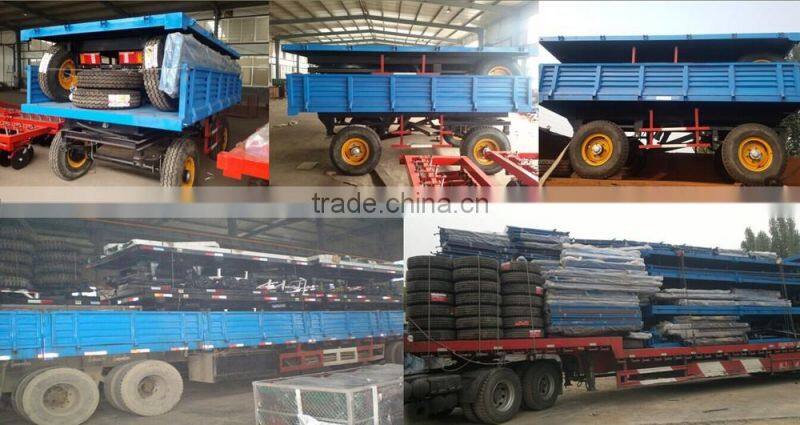

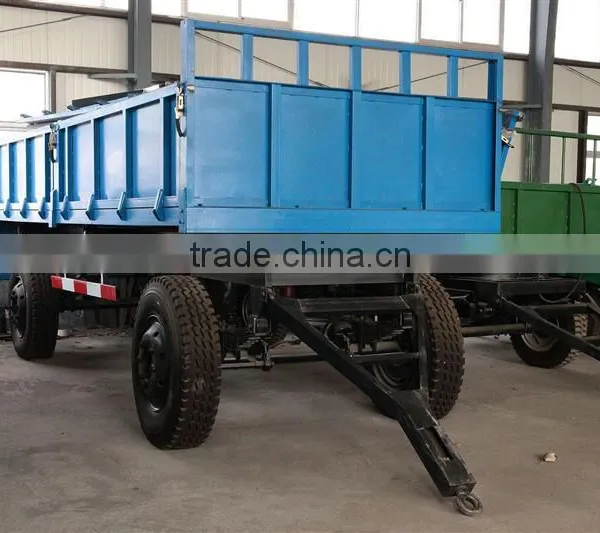

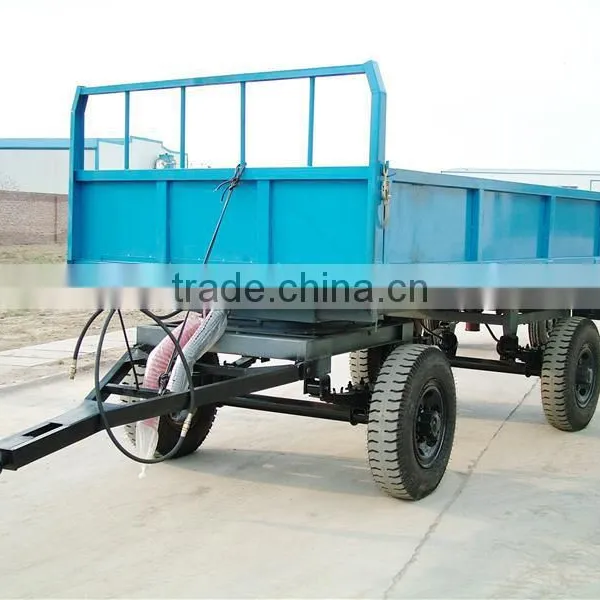

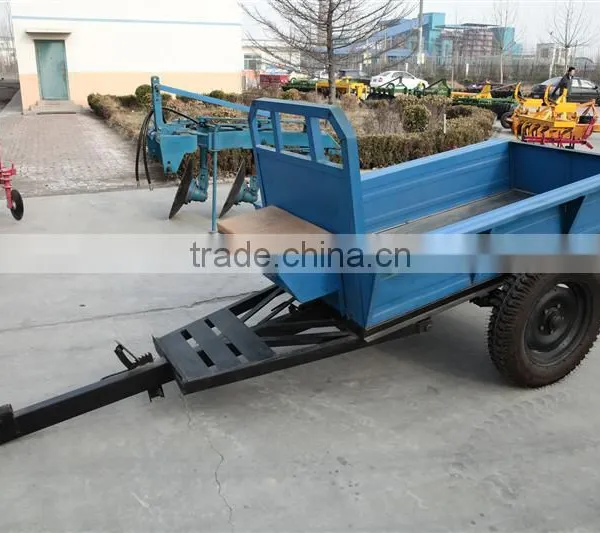

alibaba express dump tipping trailer 30 m3/ agricultural tractors trailers
Technical parameters:
| Model | 7CBX-2.0 | 7CX-3.0 | 7CX-5.0 | 7CX-7.0 | 7CX-9.0 |
| Rated load (kg) | 2000 | 3000 | 5000 | 7000 | 9000 |
| Matched power (kw) | four-wheel 8.8-22 | four-wheel 18.3-36.7 | four-wheel 36.7-53 | four-wheel 36.7-59 | four-wheel 36.7-66 |
| Overall dimensions(L×W×H) (mm) | 3100×1680×1580 | 4800×1680×2080 | 5500×2180×2280 | 6400×2230×2280 | 6200×2230×2280 |
| Weight (kg) | 460 | 1450 | 2100 | 2450 | 2650 |
| (l×w×h) Carriage size (mm) | 2000×1000×500 | 3400×1600×450 | 3900×2100×500 | 4900×2150×550 | 5600×2150×600 |
| Carriage capacity(L) | 1000 | 2600 | 4100 | 5800 | 7000 |
| Height of loading (mm) | 950 | 1030 | 1200 | 1300 | 1300 |
| Height of traction (mm) | 480 | 660 | 750 | 820 | 820 |
| Number of wheels | 2 | 4 | 4 | 4 | 8 |
| Wheel spacing (mm) | 1370 | 1380 | 1880 | 1880 | 1980 |
| Axle spacing (mm) | - | 1640 | 1640 | 1830 | 1830 |
| Specification of tire | 7.50-16 | 6.50-16 | 8.25-16 | 9.00-20 | 8.25-16 |
| Way of braking | mechanical braking | air braking | air braking | air braking | air braking |
| Angle of tipping | 45· | 45· | 45· | 45· | 45· |
| Way of tipping | Hydraulic tipping | ||||
| Direction of tipping | towards the back, left or right | ||||
dump tipping trailer 30 m3
