BT40, 8000rpm, 5kw, 350v, 150mm Water Cooling Engraving and Milling Spindle Motor

BT40, 8000rpm, 5kw, 350v, 150mm Water Cooling Engraving and Milling Spindle Motor thumbnail-1
BT40, 8000rpm, 5kw, 350v, 150mm Water Cooling Engraving and Milling Spindle Motor photo-1
US$ 2,300 - 3,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
WF
Model Number:
XD150Z8/5BT40
Application:
Milling
Contact Supplier Request Quote Chat Now
Anyang Wanfeng Industrial & Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WF
Model Number XD150Z8/5BT40
Application Milling
Maximum Torque 0.72nm
Drive Motor
Operating Speed 8000r/min
Product Description

                 BT40, 8000rpm, 5kw, 350v, 150mm water cooling engraving and milling spindle motor



Spindle Model XD150Z8/5BT40
Speed 8000rpm
Rated Power 5kw
Voltage 350v
Current 10A
Dimension see the drawing
Cooling water cooling
Collet BT40



Spindle Merits:

1.High precision, high speed, high stability, tight structure, low noise, low vibration.

2.Wide application: turning, grinding, milling, carving, drilling and so on.

3.The step-less variable speed in the range of the rated running speed is available to suit the request of various conditions and loads.

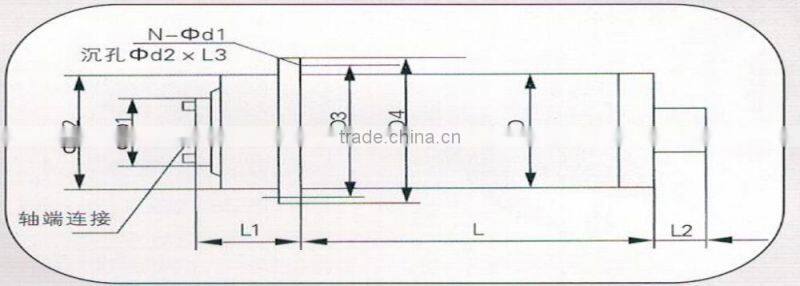

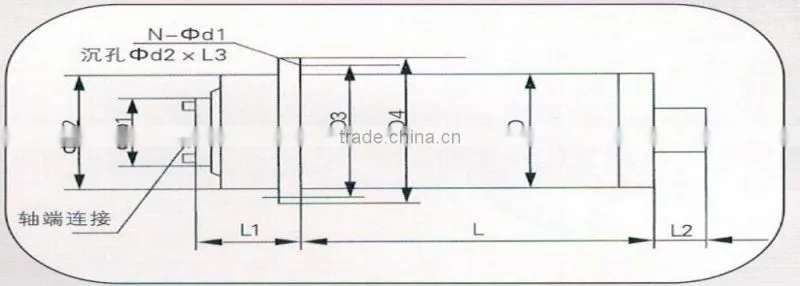

Sketch to show the dimensions





BT40, 8000rpm, 5kw, 350v, 150mm water cooling engraving and milling spindle motor

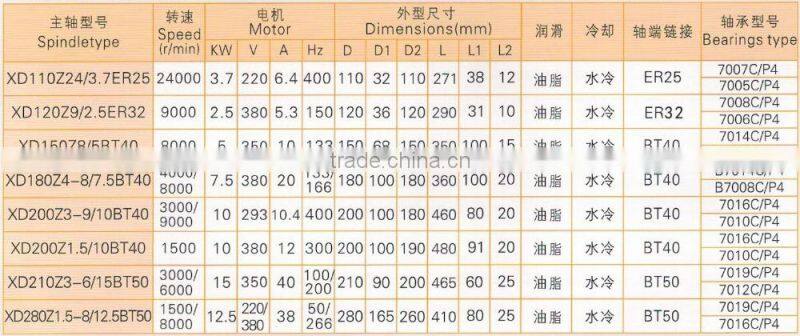

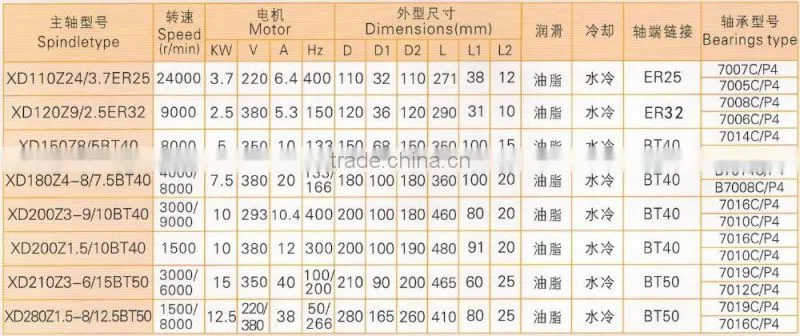

Technical data



BT40, 8000rpm, 5kw, 350v, 150mm water cooling engraving and milling spindle motor

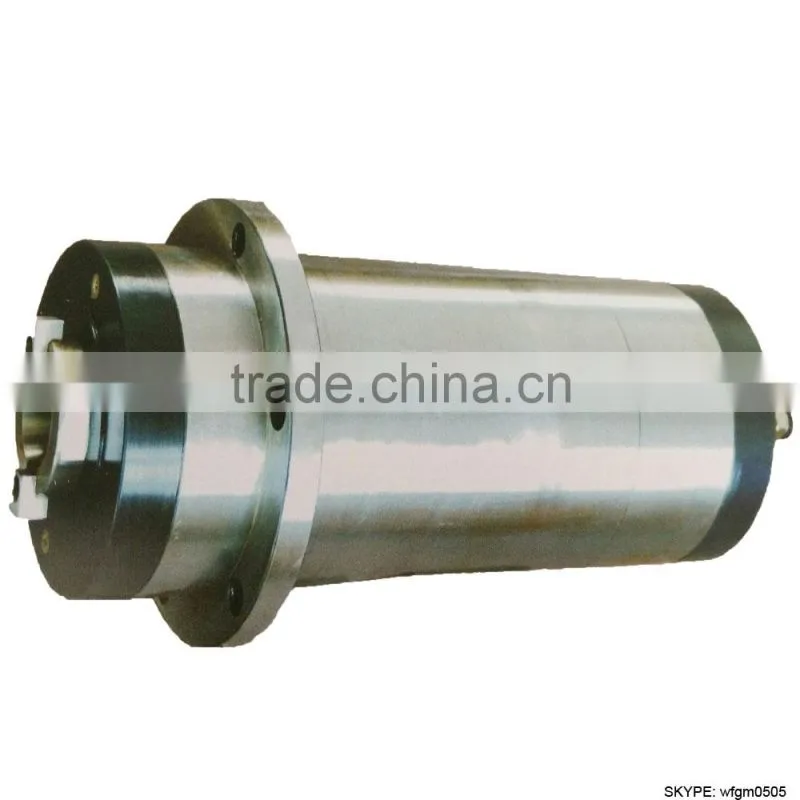

Product show



BT40, 8000rpm, 5kw, 350v, 150mm water cooling engraving and milling spindle motor



How to use



BT40, 8000rpm, 5kw, 350v, 150mm water cooling engraving and milling spindle motor
