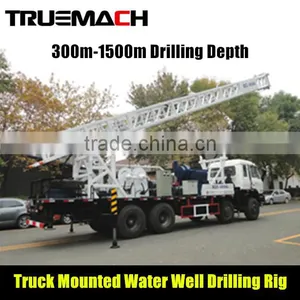

600m Deep Truck Mounted Water Well Drilling Rigs

Name: 600m Deep Truck Mounted Water Well Drilling Rigs
Brand: TRUEMACH
SKU: 140295672
Availability: InStock

US$ 100,300 - 105,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Diesel

Luoyang Truemach Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Power Type Diesel

Brand Name TRUEMACH

Model Number LTC600CCA water well drilling rig

Usage Water Well

Voltage 380V

Power(W) 191kW

Dimension(L*W*H) 11140x2480x13750mm

Weight 27500kgs

Certification ISO CE

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

LTC600CCA 600m Deep Truck mounted Water Well Drilling Rigs

Drilling depth(M)			600
Drilling diameter(mm)			500
Speed of turntable(r/min)			117;102;60;38;22;13;16(reverse)
Torque of turntable(KN.m)			5.4----50
Single rope lifting capacity of main windlass(KN)			50
Maximum lifting capacity of main windlass(KN)			300
Single rope lifting capacity of assistant windlass(KN)			60
Single rope lifting capacity of assistant windlass(KN)			240
The height of drilling tower (mm)			12000
Drill pipe	Kelly bar(mm)		108×108×7500
	Assistant pipe (mm)		Ø89×10×5500
3NB-130 plunger pump	Diameter of cylinder (mm)		100 110 120 130 140
	Stroke of piston (mm)		160
	Theoretical flow (L / min)		505 620 730 860 1000
	Rated pressure (Mpa)		10 8 7 6 5
	Diameter of suction tube (mm)		152
	Diameter of drain tube (mm)		65
	Input power (kw)		95
Truck chassis	Drive form		8×6
	Engine	Model	YC6A260-33YC water -cooled four strok diesel engine
		Rated power(KW)	191
		Speed (r/min)	2300
	Size (LWH)(mm)		1151024802800
Electric generator	Model		MF
	Rated power (kw)		15 / 30
	Rated voltage(v)		380
	Rated current(A)		27
	Speed (r/min)		1500
	Frequency(Hz)		75
The highest speed(Km/h)			75
