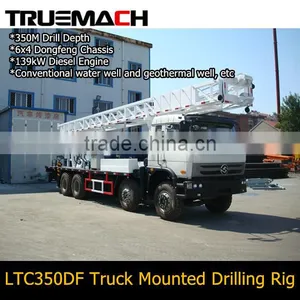

Help CenterLTC350DF 350m Truck Mounted Drilling Rig
Related Products
-
LTC350ZYII 350m Truck Mounted Drilling RigUS$ 111,000 - 130,000MOQ: 1 Unit -
LTC400ZYII 400m Truck Mounted Drilling RigUS$ 112,000 - 130,000MOQ: 1 Unit
-
LTC500BDF 500m Truck Mounted Drilling RigUS$ 120,000 - 130,000MOQ: 1 Unit
-
LTC600BZY 600m Water Well Truck Mounted Drilling RigUS$ 130,000 - 150,000MOQ: 1 Unit
-
LTC600CLCA 600m Well Truck Mounted Drilling RigUS$ 150,000 - 170,000MOQ: 1 Unit
LTC350CA 350M Truck Mounted Drilling Rig
Applications
The rotary table of this truck mounted drilling rig comes with large torque and as a result the drill equipment makes a hole quickly. Currently, our vehicle mounted drilling rig has found applications in water conservation projects, the drilling of industrial deep well, conventional water well and geothermal well, etc., and national defense fields, to name a few. It is applicable for drilling into clay, sand, bed rock, basalt strata, and more.
Design advantages
1. LTC350DF is a kind of rotary drilling machine designed for drilling water wells, and more.
2. This truck mounted drilling rig is equipped with DONGFENG special truck chassis, and the transfer case, main drive, gearbox, dual-winch, slurry pump, rotary table, drill tower and steel wire feeding system are all mounted on the chassis.
3. Driving systems This water well drilling rig is primarily mechanical driven. The drill tower and the four levelling legs are hydraulically controlled. The transfer case and the slurry pump's valves are pneumatically controlled.
4. Drilling method A standard LTC350DF drilling equipment adopts directional circulation drilling method. Equipped with BW850/2A slurry pump, it adopts slurry as the drilling fluid, and finally achieves direct circulation drilling with the help of the high pressure plunger pump. If equipped with proper drilling tools, the drilling rig can also achieve other drilling methods.
5. LTC350DF is equipped with dual-winch and drill tower pulley block, etc. which functions to increase the drilling pressure and assists the water well drilling rig in drilling into mud rock, and bed rock, etc. This design is very effective in improving drilling efficiency.
6. Power system LTC350DF truck mounted drilling rigs has two different diesel engines, one diesel engine (139kw) for chassis, and the 100kw diesel generator for drilling rig.
Configuration options
1. According to customers' requirements, our truck mounted drilling rig can be equipped with air compressors from different manufacturers, like America's SULLAIR, Sweden's ATLAS COPCO, China's KaiShan Group and HongWuHuan Group. Thus, the equipment can achieve pneumatic down-the-hole hammer drilling.
2. If equipped with air water separator, dual-wall drill pipe and other related devices, the rotary drilling rig is also able to achieve reverse circulation drilling.
3. If equipped with drill tools like hydraulic down-the-hole hammer, and 850/2A mud pump, the vehicle mounted drilling rig can realize hydraulic DTH drilling.
Technical Parameters
| Drilling depth | 300m |
| Bore diameter | 500mm |
| Rotary table speed (reverse) | 50/75/114 (r/min) |
| Rotary table torque (reverse) | 13.2/8.8/5.8 (kN.m) |
| Pull force of the main winch (with single winch rope) | 30 kN |
| Max. pull force of the main winch | 180 kN |
| Pull force of the auxiliary winch (with single winch rope) | 30kN |
| Max. pull force of the auxiliary winch | 120kN |
| Elevating capacity of the hook | 180kN |
| Carrying capacity of the drill tower | 180kN |
| Drill tower height | 11900mm |
| Load bearing capacity | 25 Ton |
| Drill stem (Main/Second) | Ø108x108x7500mm/Ø89x10x5500mm |
| Slurry pump(Mud pump) | Model: BW850/2A |
| Weight:1.5Ton | |
| Overall dimensions:2000x1030x1400mm | |
| Input power: 40kW | |
| Rotation speed: 470r/min | |
| Suction pipe diameter: 127mm | |
| Theoretical flow rate:600-850L/min | |
| Piston travel:180mm | |
| Cylinder sleeve diameter:150mm | |
| Rated pressure: 32MPa | |
| Storke frequency: 58-82 min-1 | |
| Drain pipe diameter:64mm | |
| Matching Power Unit | Diesel engine: B190 33 water cooled, 6-stroke, intercooled supercharged |
| Rated power: 139kW | |
| Rotation speed: 2500r/min | |
| Max. torque: 590N/m/1400-1700rpm | |
| Chassis Drive Type | 6x4, DFS1251GLJ8 |
| Drill engine | Diesel generator |
| Rated power:100kW | |
| Rated speed:1100r/min | |
| Max. truck travel speed | 75km/h |
| Hydraulic oil pump | CB-HP50/32Z, 50/32 ml/r, 20MPa, 2000r/min |
| Total weight | 21560kg |
Transport dimensions(lengthxwidthxheight) |
12400x2480x3700mm |
| Overll dimensions (lengthxwidthxheight) | 10900x4500x13600mm |
