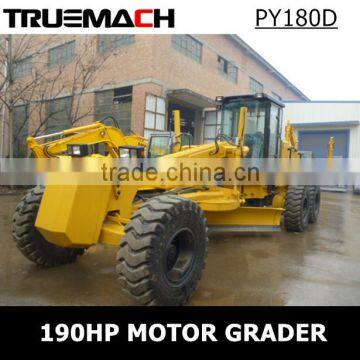

190HP Small Motor Grader Manufacturer For Sale

Overall Dimension

1

LengthxWidthxHeight

8585x2790x3340mm

2

Wheel base

6362mm

Main Technical Specification

1

Operating weight

16000kg

2

Blade lengthxheight

3965x610mm

3

Min. turning radius

7800mm

4

Traveling speed(Km/h), 6 forward and 3 reverse

1st gear forward

5.25

2nd gear forward

9.08

3rd gear forward

11.88

4th gear forward

20.02

5th gear forward

24.51

6th gear forward

38.23

1st gear reverse

5.25

2nd gear reverse

11.88

3rd gear reverse

                                    24.51

Diesel engine

1

Model

China Shanghai  diesel (Cat technology)

2

Type

Direct injection. Turbocharged. Water cooling

3

Rated output

140kW

9

Rated speed

2200(r/min)

10

Max. Torque

675(N.M)/1500(r/min)

Transmission System

Torque Converter

1

Model

ZFW320 (ZF technology)

2

Type

3-elements.single stage

3

Torque ratio

1.94

4

Cooling type

Pressure oil circulating

Transmission case

1

Model

6WG180

2

Type

power shift, single-shift lever, natural-shift lock device

3

Gear shift position

 6 Forward and 3 reverse gears

Axle and Tire

1

Type of main reducer

spiral bevel gear, single stage

2

Gear ratio of main reducer

3.583

3

Type of final reducer

Single stage chain-drive

4

Gear of ratio of final reducer

3.75

5

Gear ratio

13.436

6

Tandem drive

Double row roller-chains

7

Size of tire

17.5-25-PR14

14.00/1.5-25TB(wheel rim)

Working Device Hydraulic System

1

Model of oil pump(include steering pump)

CBGj2045/1025

2

System pressure

175(kgf/cm²)

3

Model of distribution valve

HUSCO5000-D

4

Hydraulic lock

KAYABA technology

5

Model of oil motor

EATON, JS-130

Steering  System

1

Type

Fore Tire complexion

2

Model of steering gear

BZZ1-E160B/ FKA-163022

3

System pressure

18MPa

Brake System

1

Type of traveling  brake

Hydraulic Assisted inner-expanding brake

2

Oil pressure

120(kgf/cm²)

3

Type of parking brake

Mechanical and  inner expand hoof brake
