2.5tonne Rough Terrain Forklift With Japan Engine

2.5tonne Rough Terrain Forklift With Japan Engine thumbnail-1
2.5tonne Rough Terrain Forklift With Japan Engine photo-1
US$ 17,500 - 21,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
TRUEMACH
Contact Supplier Request Quote Chat Now
Luoyang Truemach Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Tianjin/Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Henan, China
Brand Name TRUEMACH
Model Number CPCD30 3Ton cheap terrain pallet jack
Type Powered Pallet Truck
Power Souce Diesel Engine
Rated Loading Capacity 3ton
Max. Lifting Height 6000mm
Min. Lifting Height 120mm
Fork Length 1070mm
Fork Width 125mm
Overall Dimensions 4650*2342*2452mm
Certification CE Certificate
After-sales Service Provided Engineers available to service machinery overseas
Product Description

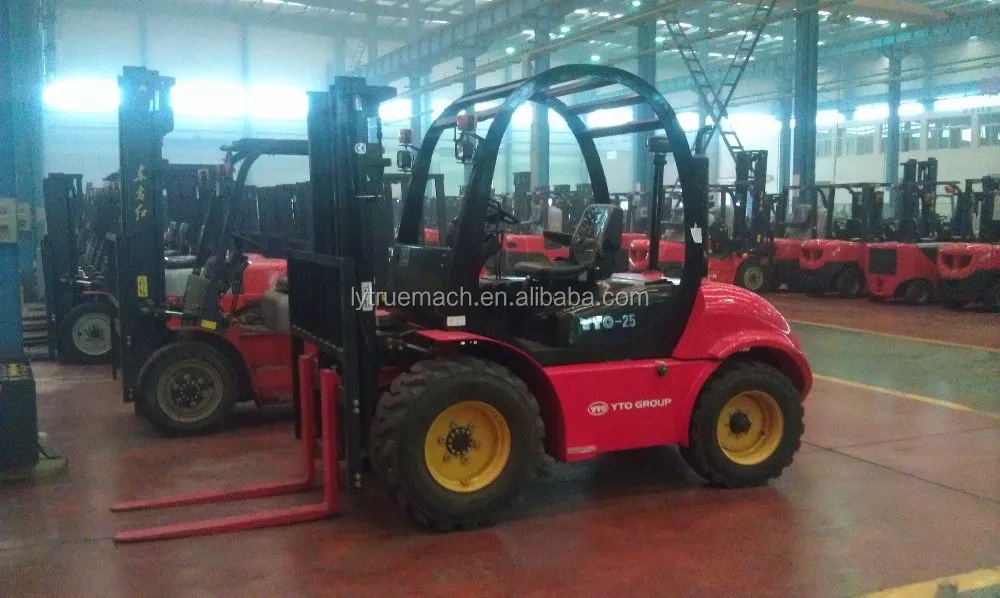

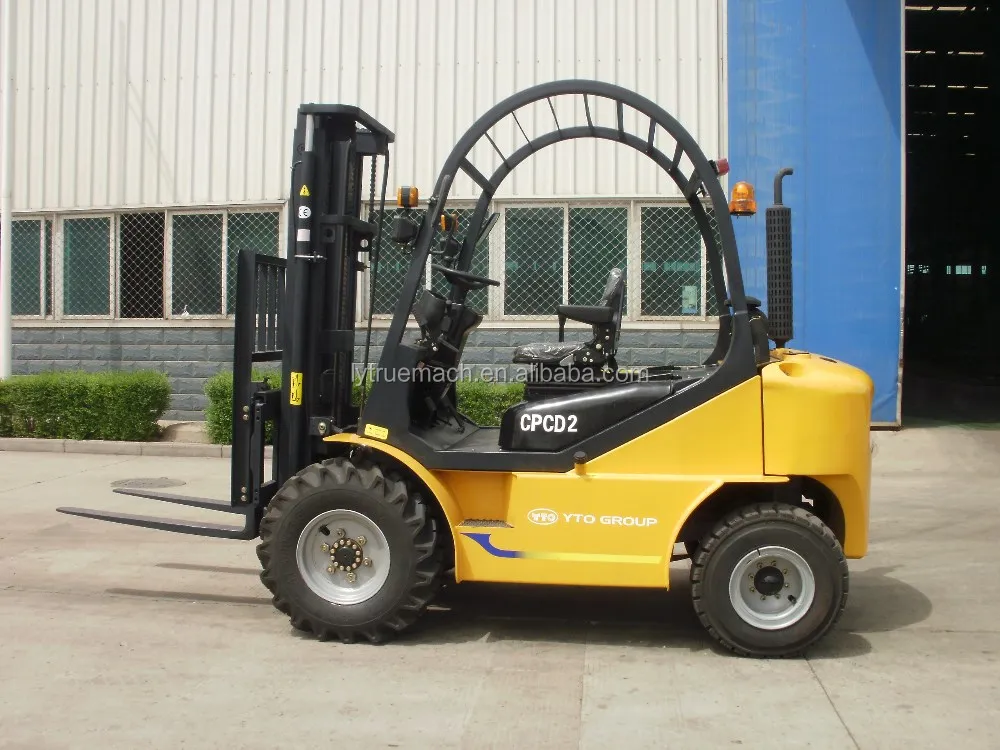

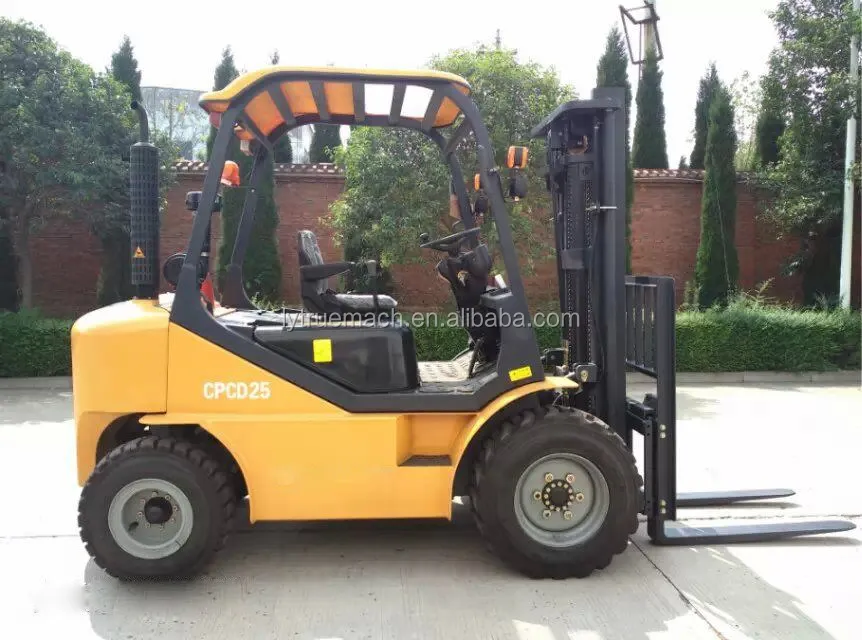

2.5tonne rough terrain forklift with Japan engine


ROUGH TERRAIN FORKLIFT (4x2 type)

APPLICATION:

The 3ton terrain pallet jack with a wide range of applications :can be used in complex terrain .Sewage slope, curb, ditch,hole, muddy ground, slip roads and ramps,stairs, snow or frozen ground.

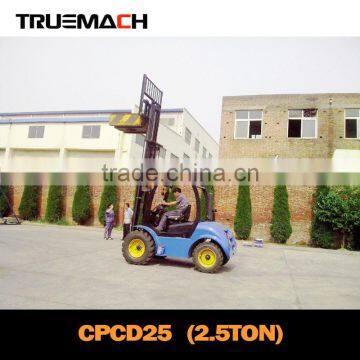

Model

CPCD25

WHEEL DRIVE

2WD

RATED CAPACITY

2.5TON

LIFT HEIGHT

3.3M

Free Lift

120mm

Fork Size L*W*T (mm)

1070*125*40

Min.ground clearance(center of wheel base）(mm)

315

Turning radius (mm)

2940

Overall dimension L(without fork)*W*H(mast lowered height)

2910*1480*2310

Tyre Specification (F/R)

12-16.5TL.NHS-14PR/27×10-12-12PR

Self weight (kg)

4300

Battery -voltage/capacity

12V/100Ah

Engine model & brand

4TNE98 / YANMAR

Power (kw)/rotation speed (r.p.m)

42.1 @ 2300

Transmission

F/R 1/1,hydraulic

Main Features

• Larger underground clearance of the chassis.

• Integral-type combination instrument

• Adjustable damping seat with safety belt

*Streamlined design,unique and morden shape.

* Fitted with desert filters,super air-purifying capacity.

• Drive wheel with the MPT multi-function tires, wide base and cross- country thread Pattern.

• The maximum speed of the design is about 23km/h, faster than the general industrial forklift.

• fast stability, efficient transportation in an uneven road surface .

*Standard with Chinese Xinchai diesel engine(45kw),Japan ISUZU engine optional.

Detailed Images

Powerful Engine


Brand: Japan ISUZU

Model: 4JG2

Power:44.9kw

Feature:Fuel saving,powerful

Emission: EURO-1

High Ground Clearance



Combine accurate instrument



Comfort Cooperation

Damped seat.4th valve available for option.


Warning Light


MPT Tyre

Specially used for rough terrain forklift.


Flat guard


Big view mast


Our Service

TRUEMACH WARRANTY:

We will provide replacement parts if fault happens during ultimate users’ normal using on account of unqualified material or manufacture. 12 months,which comes first , will be given as guarantee period to the following items:Engine, controller assembly, gear box; driving axle; steering axle; wheel hub;wheel rim; cylinder; arrester; high-pressure hose; Pump; control valve; Fork;chain; mast bearing; for more detailed guarantee terms, we will list it in contract.
Packing & Delivery
Packaging



Packaging Details

The normal package is in nude by complete packing .

1set/1x20'GP;

*Spare parts box&use manual included.

*.Customed packing accepted.
Related Photos

             Flat guard design



            Arch guard design



                     with Cabin
