20ton Hydraulic Electric Material Handler Grabbing Excavator

FOB Price

US$ 98,000 - 105,000 / Set

1 Set(Min. Order)

Port Shanghai Port China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China	Brand Name	BONNY
Model Number	WZYD20-6	Condition	New
Moving Type	Crawler Excavator	Operating Weight	20ton
Rated Speed	6/3.8 km/h	Certification	CE ISO
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

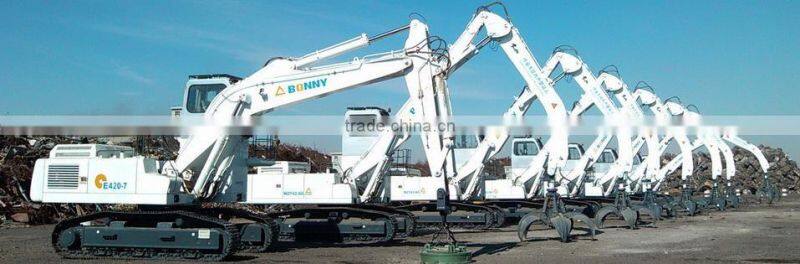

WZYD20-6 20ton hydraulic electric material handler grabbing excavator

Features:

WZYD20-6 electric hydraulic grapple feeder is suitable for loading and unloading scrap, loading and unloading materials, loading and unloading materials, scrap, etc.

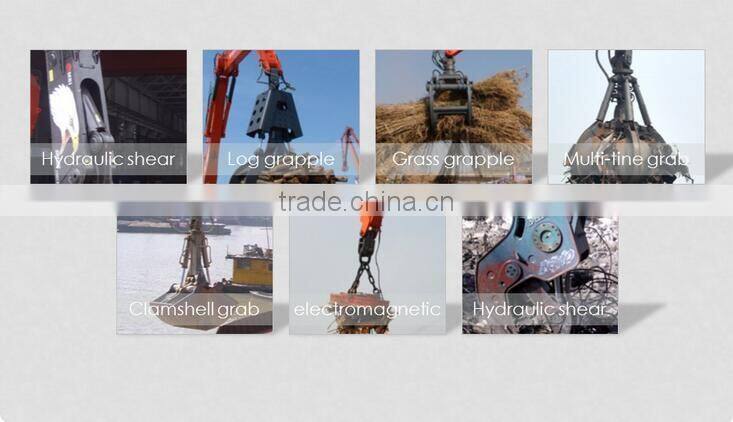

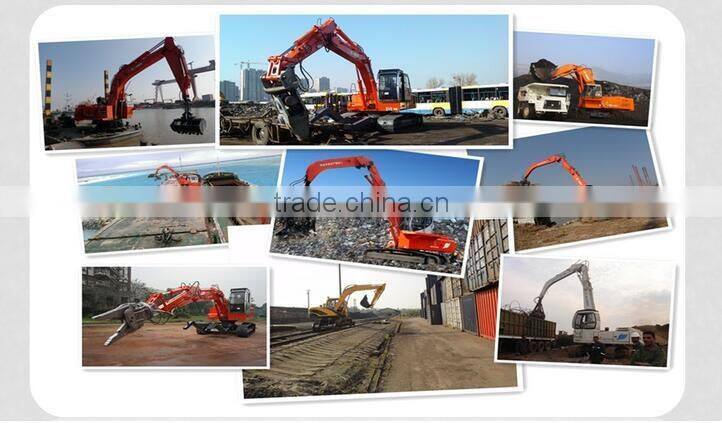

1.Can be equipped with a variety of work devices (grab) to achieve scrap, logs, wood chips, coal, forage and other materials, crawling, loading and unloading;

2.The use of international top-level configuration, to ensure high reliability of the system;

3.Electric hydraulic scraper can replace the same type of diesel-type equipment without difference, and the integrated operation cost is saved 50%;

4. The use of electric drive, clean energy, zero pollution, zero emissions, the effective protection of the natural environment;

5. The interior of the cab is spacious and comfortable, with wide field of vision, soundproof and dustproof, and large-capacity environmental protection air-conditioning system for comfortable and safe working environment.

Specifications:

Electric motor	55KW
Max grabbing reach	9498mm
Max grabbing depth	3911mm
Max grabbing height	7383mm
Max. lifting moment	300kN.m
Multi-tine grab capacity	0.5m3
Boom length	4800mm
Stick length	3700mm
Length of basic machine	4015mm
Height of basic machine	4024mm
Width of basic machine	3700mm
Platform width	2480mm
Distance from sprocket to idler	2894mm
Track length	3636mm
Center to center of tracks	2350mm
Track width	2850mm
Track pads width	500mm
Track height	856mm
Min. ground clearance	440mm
Tail swing radius	2190mm
Hood height	2684mm

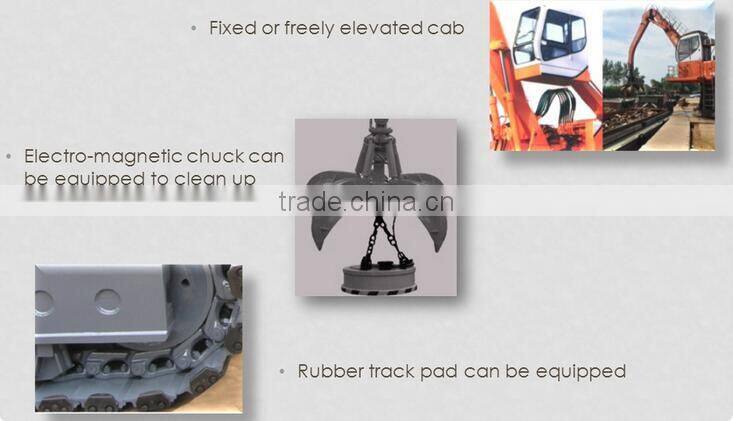

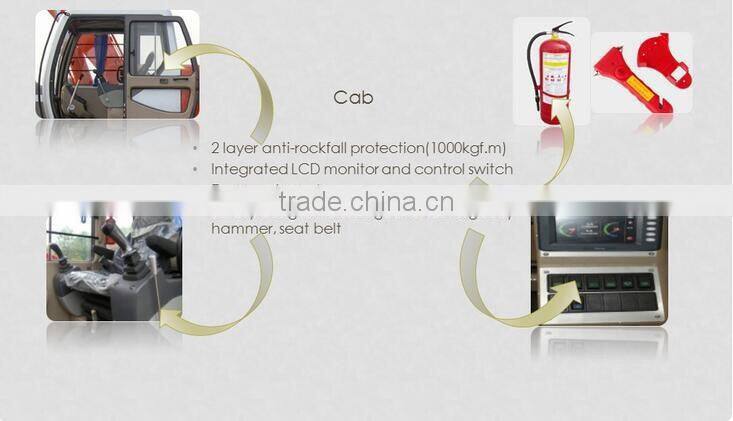

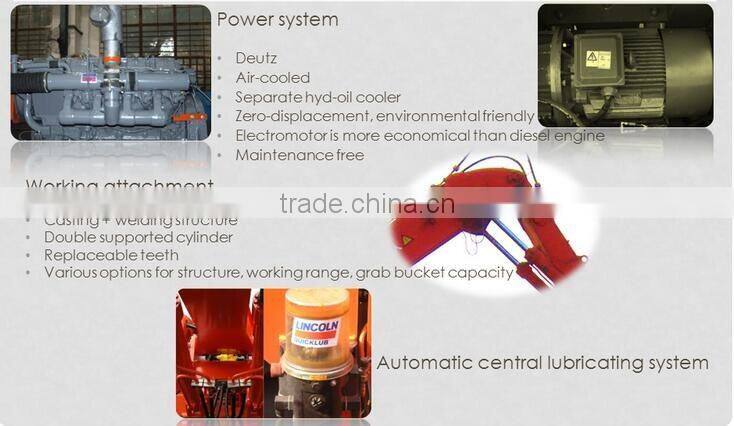

Pictures:
