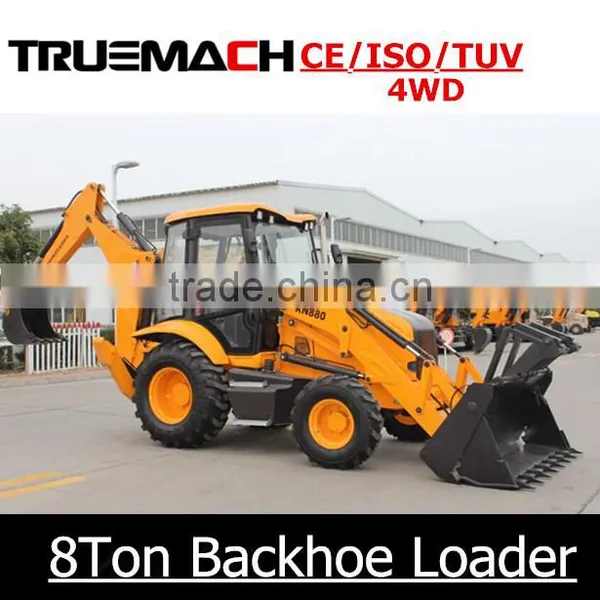

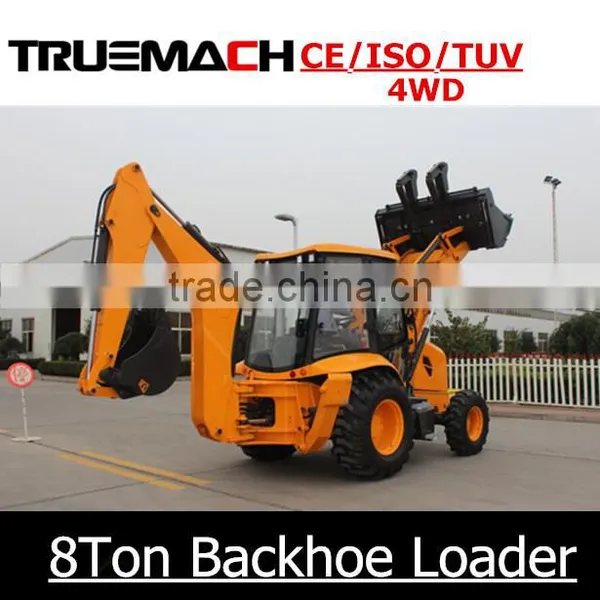

BACKHOE LOADER: XN880 WITH CE ISO TUV CERTIFICATE
8T, 4WD, Imported Cummins engine, USA PERMCO main hydraulic pump and filter, SKS pilot pump, Italy hydraulic pipe, Hydraulic torque converter transmission, USA EATON pilot Joystick, Italy CARRARO axle and transmission box, Spacious cab, 0.3m3 digging bucket, 1.15m3 loading bucket, whole machine lights are LED, with CD,MP3, Overall dimension: 7300x2260x2940 mm
Main features:
1. ORIGINAL CUMMINS ENGINE B3.3 (60kw), Low fuel consumption, low noise and strong power, more efficient and economical, the emission meet to EURO 3 standard.
2. USA PERMCO brand -high quality, long service.
3. USA EATON Pilot joystick handler, ensure the accuracy and flexibility of each movement.
4. Italy CARRARO front & rear axles helps steer easily, efficient hydraulic torque converter provides ease and great comfort of operation.
5. The super cab is designed with principle of ergonomics to provide the operator a low-noise environment, and possesses fine shock absorption.
6. Hydraulic accessories option: 4-in-1 bucket, 6-1 bucket, quick coupling plate, quick hitch, hydraulic hammer, narrow bucket, tilting bucket, auger, forklift etc
Engine | ||||||||||||||||||
Model |
Japan Cummins(B3.3) / China Cummins(QSF3.8) |
|||||||||||||||||
No. of cylinders, type |
4 cylinders in line, water cooled |
|||||||||||||||||
Bore and stroke |
95x115 (mm) |
|||||||||||||||||
Displacement |
3.3L |
|||||||||||||||||
Rated power/rotating speed |
60 kw (81.6hp) / 74 kw (100hp) |
|||||||||||||||||
Transmission system | ||||||||||||||||||
Transmission |
ITALY CARRARO |
Four gear synchronization,electric-hydraulic control forward/backward switch,shift and loading control handle have clutch splitting key. |
||||||||||||||||
Travel speed |
Gear |
Forward |
Backward |
|||||||||||||||
I |
6km |
6km |
||||||||||||||||
II |
10km |
10km |
||||||||||||||||
III |
21.3km |
21.3km |
||||||||||||||||
IV |
39.8km |
39.8km |
||||||||||||||||
Axle | ||||||||||||||||||
Axle type |
ITALY CARRARO |
|||||||||||||||||
Driving brake |
Individual brake on left or right wheel,caliper disc brake. |
|||||||||||||||||
Front axle track |
1990mm |
|||||||||||||||||
Front axle |
Swing turning,oscillating angle is 22° |
|||||||||||||||||
Rear axle track |
1825 mm |
|||||||||||||||||
Hydraulic system |
|
|||||||||||||||||
Hydraulic Motor |
USA PERMCO |
|||||||||||||||||
Model |
63 |
|||||||||||||||||
Flow rate |
140 L/min |
|||||||||||||||||
Working pressure |
22.5 Mpa |
|||||||||||||||||
Pilot joystick handler |
USA EATON |
|||||||||||||||||
Multitandem valve |
CHINA TAIFENG (Germany Rexroth technology) |
|||||||||||||||||
