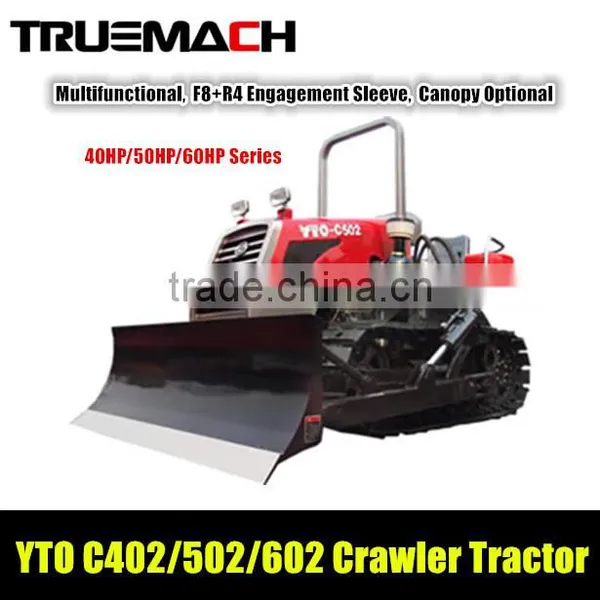

YTO C602 40hp Agricultural Crawler Tractor With Dozer Blade

YTO C602 40hp Agricultural Crawler Tractor With Dozer Blade thumbnail-1
YTO C602 40hp Agricultural Crawler Tractor With Dozer Blade photo-1
US$ 15,400 - 16,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Crawler Tractor
By wheel:
Other, agricultural crawler type, rear drive
Contact Supplier Request Quote Chat Now
Luoyang Truemach Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Crawler Tractor
By wheel Other, agricultural crawler type, rear drive
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 44.1KW
Certificate Other, ISO9001
Brand Name YTO
Model Number YTO-C602
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas

 YTO C602 60hp Agricultural Crawler Tractor



Application Site

This crawler tractor is mainly used for earth-moving operation, if removing the blade, also can be used for plowing and harrowing.

Product Description

YTO C602 40hp agricultural crawler tractor with dozer blade

 Features:

♦Suitable for operations in agricultural land and orchard, and small-quantity earth-moving operation as well.

♦Dry-type double-disc disc-spring-compressed double-action main clutch, which is easy to operate.

♦Transmission composed of engagement sleeve based gear shifting mechanism (2+)*4, which has a lot of gears, and is easy to control and suitable for various operations.

♦Multiple-disc dry-type steering clutch of which the friction discs are made of new material and have long service life, and floating-type belt brake which enables reliable braking operation

♦Semi-steel suspension system, which increases the earth-moving performance.

Technical Parameters

YTO C602 40hp agricultural crawler tractor with dozer blade



Model

YTO-C602

Overall dimensions L×W×H  (mm) (Without blade)

3760×2016×1680

Operating weight (kg) (Without blade)

3660

Track gauge  (mm)

1100

Wheel base  (mm)

1600

Track width  (mm)

310

Ground pressure (kPa) (With blade)

37.2

Disel engine

Engine type

YT3B2-24

Type

vertical,water-cooling,four-stroke

Rated power output (kW)

44.1

Rated speed (r/min)

2200

Displacement (L)

3.30

Gearbox

Number of speed gear (forward/reverse)

8/4 engagement sleeve

Speed range(Km/h) forward/reverse

1.81~12.78/2.01~6.05

PTO shaft power (KW)

37

PTO rotational speed (r/min)

540/720

Clutch

11-inch double-disc double-action

Working device

Suspension category

Rear-mounted three-point class-II linkage

Tilling depth control

Height adjustment

Lifting force(KN)

8

Blade dimensions height ×width(mm)

2016×680

Bulldozing blade depth (mm)

260



Machine Photos



YTO C602 40hp agricultural crawler tractor with dozer blade

YTO C602 40hp agricultural crawler tractor with dozer blade

FACTORY LINE

YTO C602 40hp agricultural crawler tractor with dozer blade

YTO C602 40hp agricultural crawler tractor with dozer blade







































































































Packaging & Shipping

YTO C602 40hp agricultural crawler tractor with dozer blade

YTO C602 40hp agricultural crawler tractor with dozer bladeYTO C602 40hp agricultural crawler tractor with dozer blade

Truemach Warranty:

YTO C602 40hp agricultural crawler tractor with dozer blade

  1. We grants our clients a 12 month period or 2000 hours warranty for any machine purchased from us.

  2. During the warranty period,In case the defect of material,design,making,assembly or workmanship has occurred with spare parts in normal operation according to the machine manual.

  3. The defective part will be repaired or replaced free of charge at our discretion.

Service Provided

YTO C602 40hp agricultural crawler tractor with dozer blade

1) We help customer to choose suitable machine.If you visit us,we can give on-site technical consultation, driver training and

 maintenance training in our factory.

2) We make driving test before leaving factory,That makes sure our client use the machine normally.customer will receive machine as “0”hour all new condition.

3) We'll supervising goods ship in to container & take photos for customer.Our powerful shipping agency will offer be

st sea freight fee and responsible for detail treatment to goods.

4) Operation manual in English provided.If you need other language manual,we can provide you based on adding

little cost.

5) We prepare free spare parts in a toolbox for customer for emergency use.

6) We make record for every machine chassis no.and tracing them to get the latest information about the machine.

And give the best service timely.

7) Exclude the guarantee period, you can buy parts from us at moderate cost price. We promise support service for

the machine till it reject.
