YTO C802 80hp agricultural crawler tractor with dozer blade
- 300 Set / Sets per Month
- Shanghai Port China
- T/T
Product Details
Condition: | New | Type: | Crawler Tractor | By wheel: | Other, agricultural crawler type, rear drive |
Usage: | Farm Tractor | Drive Type: | Gear Drive | Power(W): | 58.8KW |
Certificate: | Other, ISO9001 | Brand Name: | YTO | Model Number: | YTO-C802 |
Place of Origin: | Henan, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

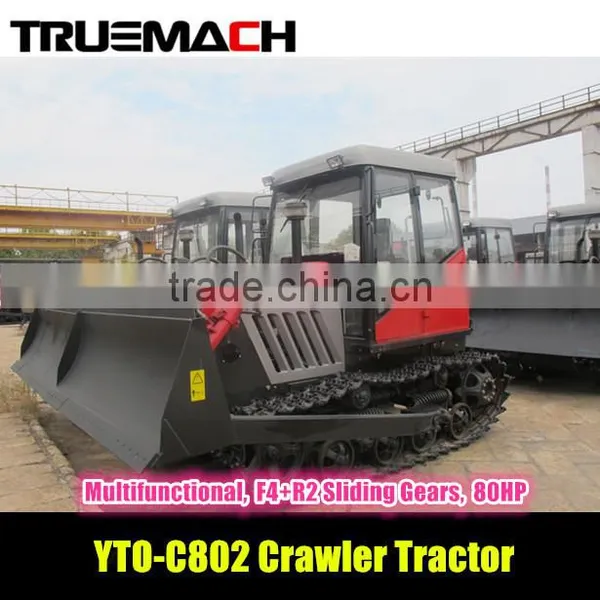

YTO C802 80hp Agricultural Crawler Tractor
This crawler tractor is mainly used for earth-moving operation, if removing the blade, also can be used for plowing and harrowing.
Features:
♦Crawler bulldozer with high performance price ratio is mainly used for earth-moving operation, if removing the blade, the bulldozer can also be used for plowing and harrowing.
♦Dry-type double-disc single-action main clutch, which is easy to operate and has long service life.
♦4+2 transmission equipped with sliding gear for shifting operation, which has reliable performance and is suitable for various operations.
♦Multiple-disc dry-type steering clutch, and floating-type belt brake which enables reliable braking operation.
♦Freely-supported beam structure for final drive, which has the advantages including high supporting strength and high reliability.
♦Wide crawler available for works on low and wet land, and rubber crawler available for increasing the trafficability.
Model | YTO-C802 |
Overall dimensions L×W×H (mm) (With blade) | 4870×2462×2766 |
Overall dimensions L×W×H (mm) (Without blade) | 4466×1835×2766 |
Operating weight (kg) (Without blade) | 6630 (equipped with earth-moving shovel) |
Track gauge (mm) | 1435 |
Wheel base (mm) | 1622 |
Track width (mm) | 390 |
Ground pressure (kPa) (With blade) | 47.4 (equipped with earth-moving shovel) |
Disel engine | |
Engine type | LR4A3Z-22 |
Type | vertical,water-cooling,four-stroke |
Rated power output (kW) | 58.8 |
Rated speed (r/min) | 2200 |
Displacement (L) | 4.33 |
Gearbox | |
Number of speed gear (forward/reverse) | 4/2 sliding gear |
Speed range(Km/h) forward/reverse | 3.67~9.03/3.51~5.59 |
PTO shaft power (KW) | 49 |
PTO rotational speed (r/min) | 750 |
Clutch | 12-inch double-disc single-action |
Working device | |
Suspension category | Rear-mounted three-point class-II linkage |
Tilling depth control | Height adjustment |
Lifting force(KN) | 14 |
Blade dimensions height ×width(mm) | 2462×850 |
Bulldozing blade depth (mm) | 290 |
FACTORY LINE
We grants our clients a 12 month period or 2000 hours warranty for any machine purchased from us.
During the warranty period,In case the defect of material,design,making,assembly or workmanship has occurred with spare parts in normal operation according to the machine manual.
The defective part will be repaired or replaced free of charge at our discretion.
1) We help customer to choose suitable machine.If you visit us,we can give on-site technical consultation, driver training and
maintenance training in our factory.
2) We make driving test before leaving factory,That makes sure our client use the machine normally.customer will receive machine as “0”hour all new condition.
3) We'll supervising goods ship in to container & take photos for customer.Our powerful shipping agency will offer be
st sea freight fee and responsible for detail treatment to goods.
4) Operation manual in English provided.If you need other language manual,we can provide you based on adding
little cost.
5) We prepare free spare parts in a toolbox for customer for emergency use.
6) We make record for every machine chassis no.and tracing them to get the latest information about the machine.
And give the best service timely.
7) Exclude the guarantee period, you can buy parts from us at moderate cost price. We promise support service for
the machine till it reject.
