LMS hot rolled steel coil slitting line/ cuting machine/ cutting line
General Introduction
Slitting line can do uncoiling, slitting and recoiling works, make coil steel to any needed width coil steel. It mainly includes coil car, uncoiler, coil guide, slitting machine, scrap winder, tension unit, recoiler and coil car, hydraulic system, Etc. It mainly used in cold rolling carbon steel, silicon steel and all the other kinds of metal materials with surface spreading.
This line can be adjusted to do recoiling or dividing work to meet customer’s demand.
The main technical parameter as the following:
1) Capacity:
Material: cold rolled steel coil, heat rolled steel coil
Material thickness: 0.4-3.0mm
Material width: 400-1600mm
Slitting speed: 120m/min
Max incoming material outer diameter: Φ-1500-2000mm
Max incoming inner diameter: Φ460-Φ520mm, Φ580-Φ640mm, Φ660-720mm. (Hydraulic double-head decoiler)
Max out put inner diameter: Φ480-520mm( hydraulic recoiler)
Max coil weight: 30T
Slitting strips quantity: 25 cuts (1MM)
Min Strip width:20MM
Edge burr: ≤0.05strip thickness
Power supply: 380v, 3PH, 50Hz
Composition:
1) Feeding trolley car 1 set
2) Hydraulic double-head decoiler 1 group
3) pinch roller, leveling roller, integrated hydraulic shearing machine 1 group
4) Loop bridge 1 group
5) Hand manual side guide wheel 1 group
6) Slitting machine 1 set
7) Scrap winder (independent type) 1 set
8) Looping bridge 1 set
9) Separate device, plate tension station 1 group
10) Partition device, recoiler 1 group
11) Hydraulic support system 1set
12) Unloading trolley car 1set
13) Hydraulic system 1 set
14) Electronic control system 1 set
15) Accessory 1set
Production flow drawing:

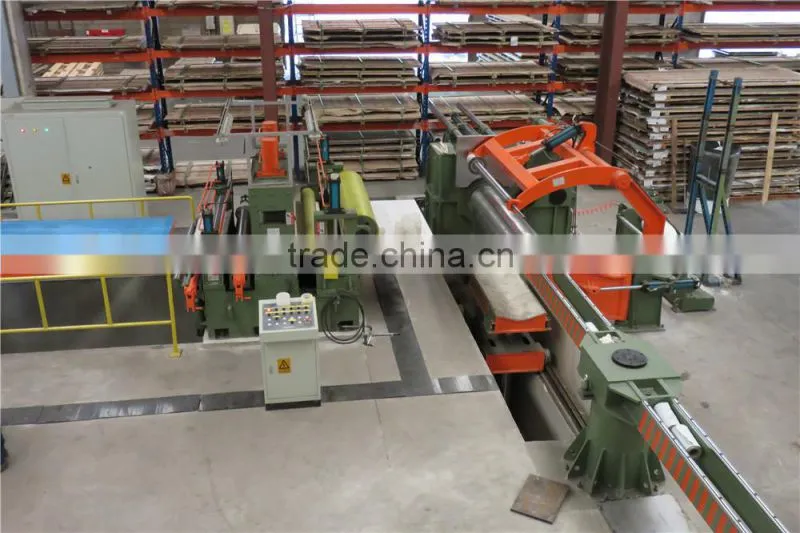

Machine Picture:
Company profile
Company cerfiticate:
Warranty time:
One year from the date of shipment.
