LMS purlin c channel machine

LMS  purlin c channel machine

Production description: C channel C channel steel roll forming machine

C channel, stud, track, runner, U channel, Drywall system roll forming machine width adjustable

Machine introduction:

LMS roll forming machine which takes the COPRA, designing software for cold rolling production and applies for the first step of rolling design, calculation, molding technique simulation, blueprint optimization and roller design to rough molding management, digital machining and quality control. LMS applies for the COPRA in the whole process. The greatness of COPRA is combined with LMS's great experience of twenty years completely and this make LMS be with might double in production for clients. Realize your dream with CORPA.

Main Specification :
material: steel coil

material thickness : 1.6 mm

production speed: 0-50m/min

profile width : 38mm, heigth: 22mm

Components:

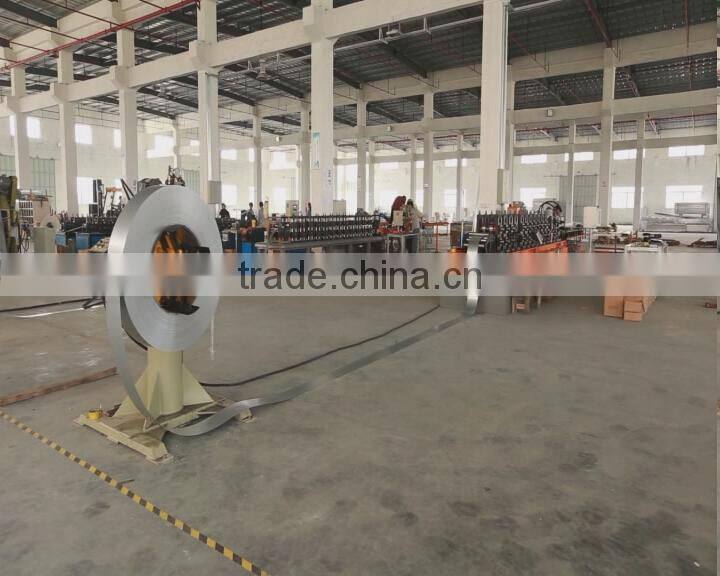

 A. Decoiler 1 set

 capacity: 2tons

 coil inner diameter: 460mm-530mm

 coil outer diamteter: max1300mm

 coil width: 20mm-200mm

 speed: max.80m/min

 maunal expansion

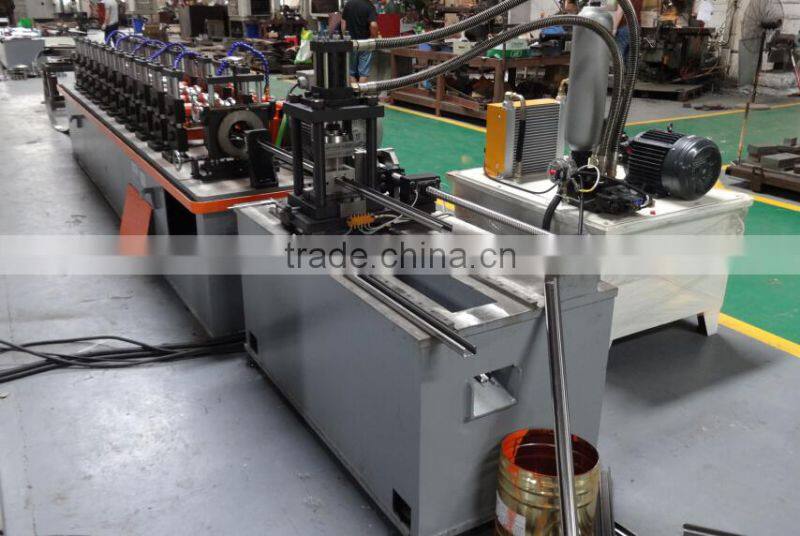

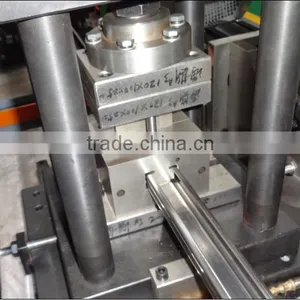

B: Roll forming machine    1set

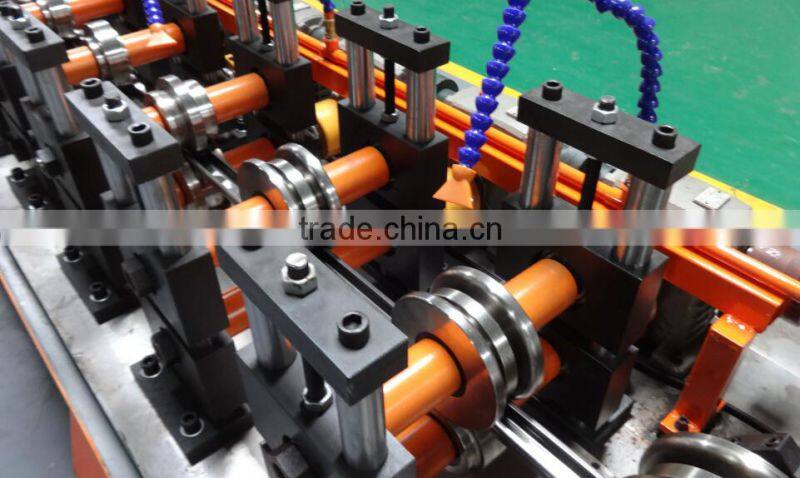

 roller station: 12 sets

 roller material: Cr12 mold steel

 heat treatment: HRC 58°C-60°C

 torii: independent guide column type,side wall thickness: 54mm

 drive: motor and worm speed reducer

 main shaft material: 40Cr, shaft diameter: 48mm

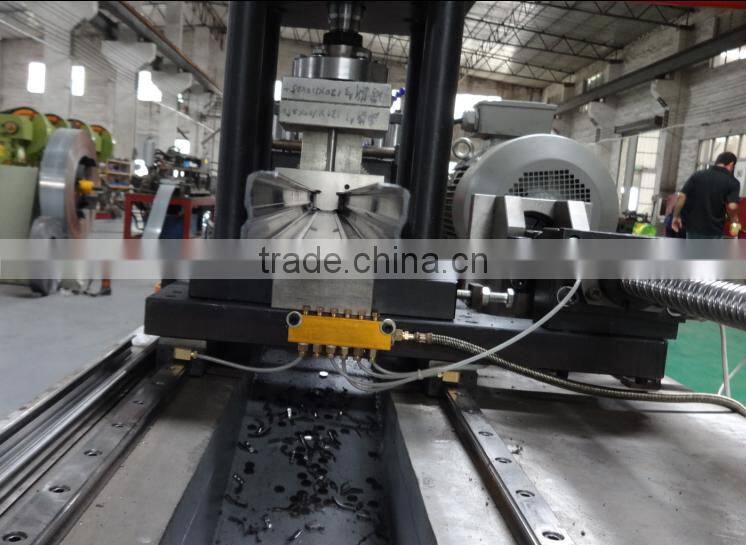

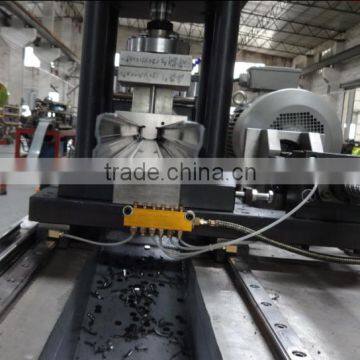

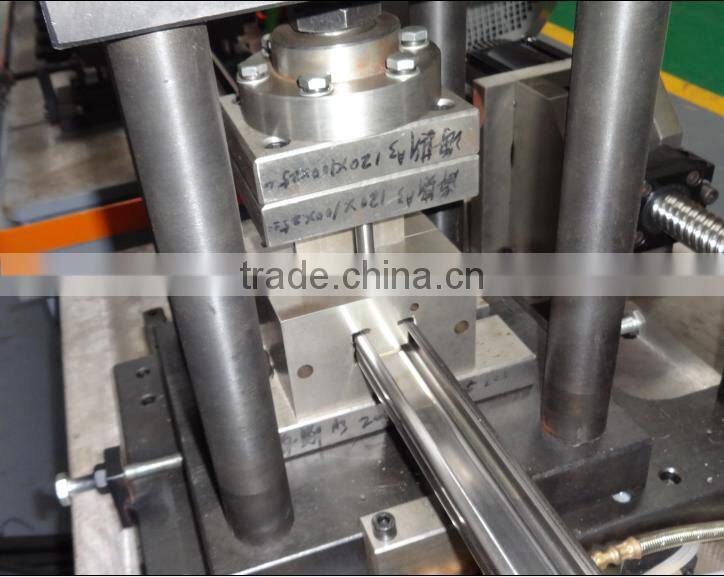

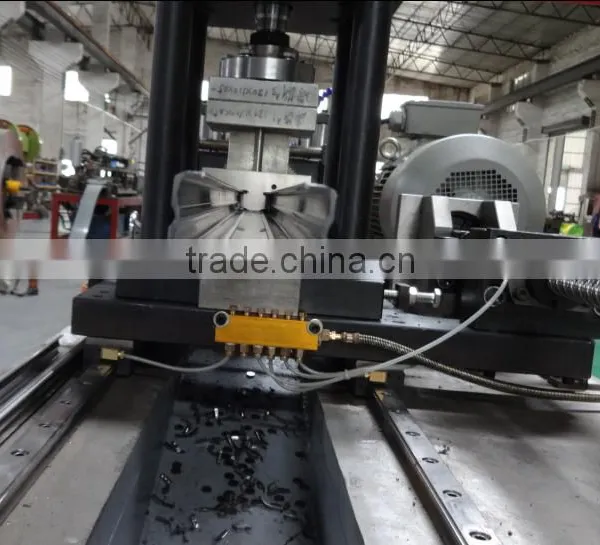

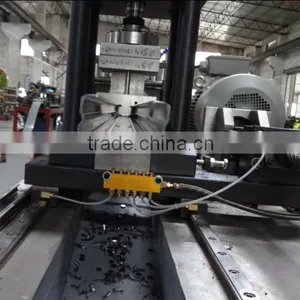

C: Cut-off part    1 set

 hydraulic system

 automatic punching and cutting, no stop and no speed reduce

 blade material: Cr12Mov

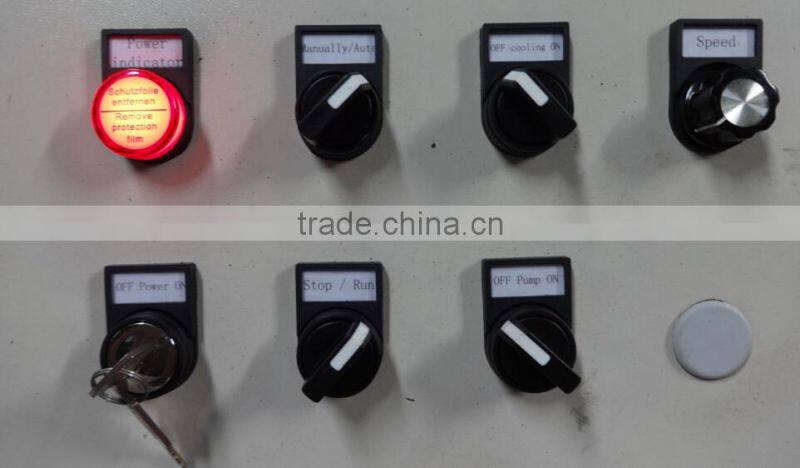

D: Electronic system   380V 50Hz

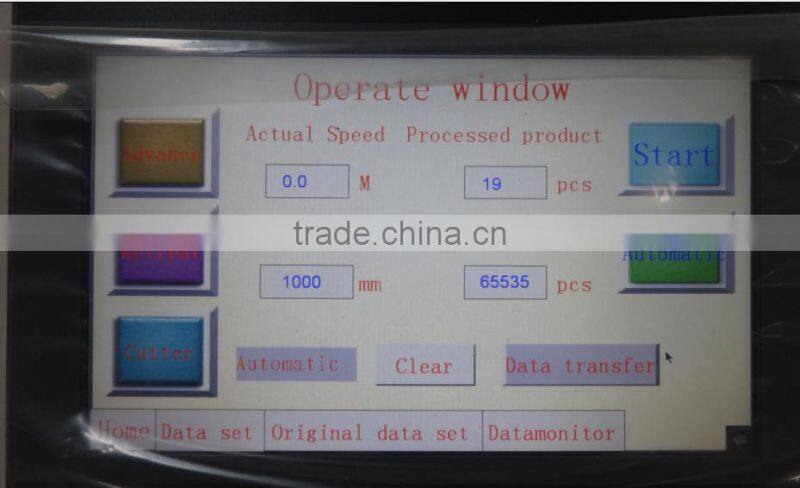

 PLC control

 PLC                                                     FATEK

 Frequency converter                         SHIHLIN

 Servo motor and drive                      YASKAWA

 INSTALLATION, MAINTENANCE AND OPERATOR TRAINING
