Roller Shutter Slates Roll Forming Machine

Roller Shutter Slates Roll Forming Machine thumbnail-1
Roller Shutter Slates Roll Forming Machine thumbnail-2
Roller Shutter Slates Roll Forming Machine thumbnail-3
Roller Shutter Slates Roll Forming Machine thumbnail-4
Roller Shutter Slates Roll Forming Machine thumbnail-5
Roller Shutter Slates Roll Forming Machine thumbnail-6
Roller Shutter Slates Roll Forming Machine photo-1
Roller Shutter Slates Roll Forming Machine photo-2
Roller Shutter Slates Roll Forming Machine photo-3
Roller Shutter Slates Roll Forming Machine photo-4
Roller Shutter Slates Roll Forming Machine photo-5
Roller Shutter Slates Roll Forming Machine photo-6
US$ 7,000 - 14,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Steel
Contact Supplier Request Quote Chat Now
Guangzhou LMS Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou port for Roll Forming Machine
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tile Forming Machine
Tile Type Steel
Use Other, rolling shutter door
Production Capacity 8-12m/min
Place of Origin Guangdong, China
Brand Name LMS
Model Number LMS4145
Power(W) 7.5kw
Voltage 380V
Dimension(L*W*H) 5m*1.3m*1.3m
Weight 3.2T
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

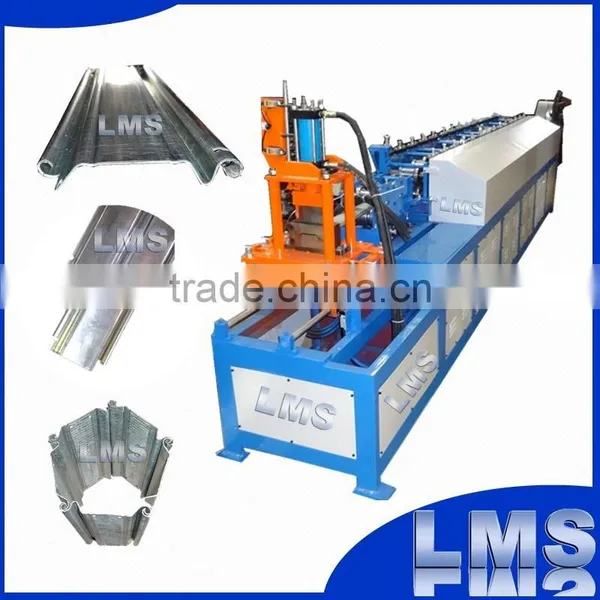

roller shutter slates roll forming machine

Profile Drawing



door frame roll forming machine

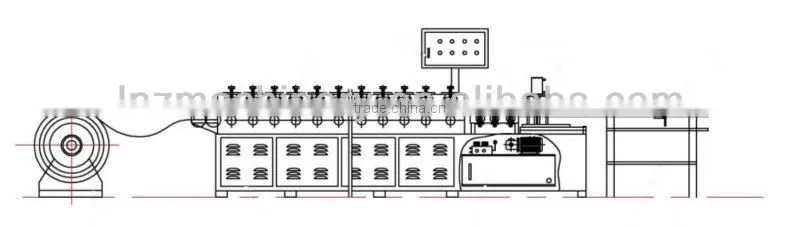

Working Flow

door frame roll forming machine

Machine Components:



No.

Name

Qty

1.

De-coiler

1 Set

2.

Roll Forming Machine

1 Set

3.

Hydraulic Cutting Device

1 Set

4.

PLC Control Box

1 Set

5.

Output table

1 Set

Technical Parameters:

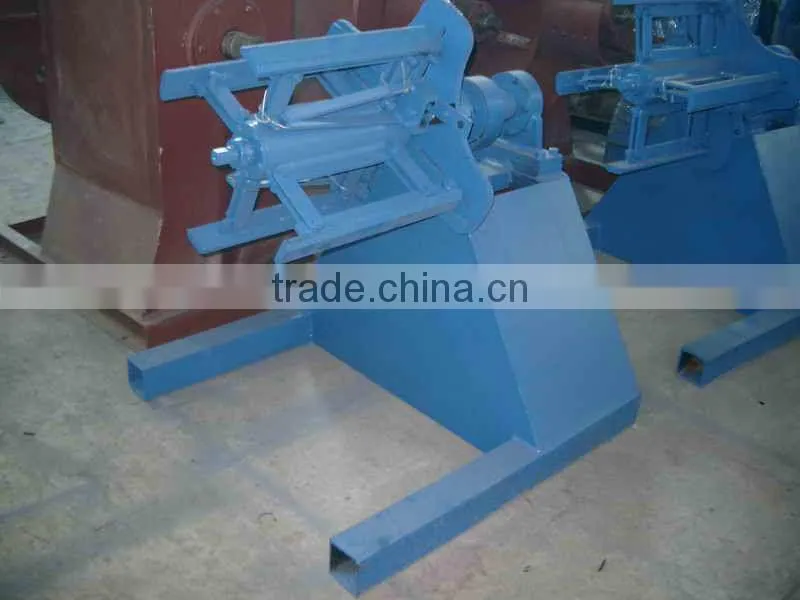

1. Manual decoiler

Hand operated type

Max. outer diameter of coil:  Ø 1400mm

Inner diameter of coil :  Ø 400-450mm

Max width of coil : 400mm

Capacity : 2000kg

Quantity : One

door frame roll forming machine

 ]

door frame roll forming machine

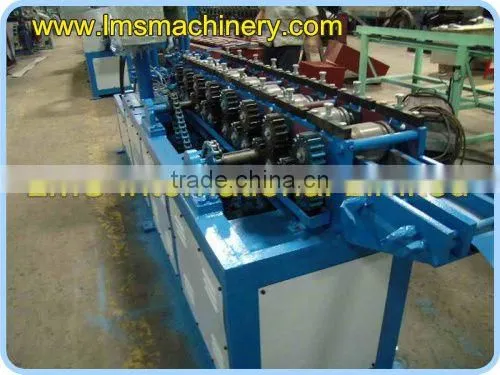

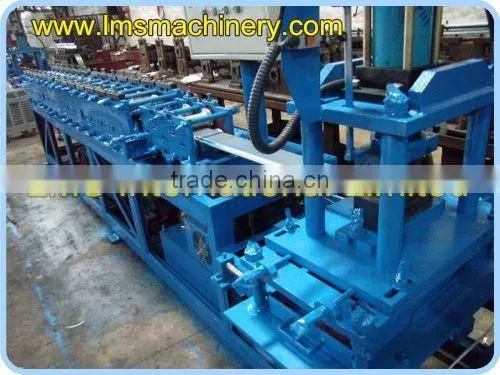

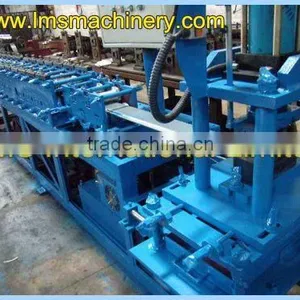

2. Roll forming main machine



Roll forming station : 14 Nos

Material of roller: Gr15 steel

Surface heat treatment of roller : HRC 55°~57°

Roller surface with polishing treatment

Roller main shaft diameter  : Ø 40 mm,  material :45#steel

Main bearing : 60208

Side wall thickness : 22mm

Girth Gear thickness : 35mm

Motor  : 5.5 kw , cylinder pin speed reducer

Forming speed :    10 m/min



door frame roll forming machine

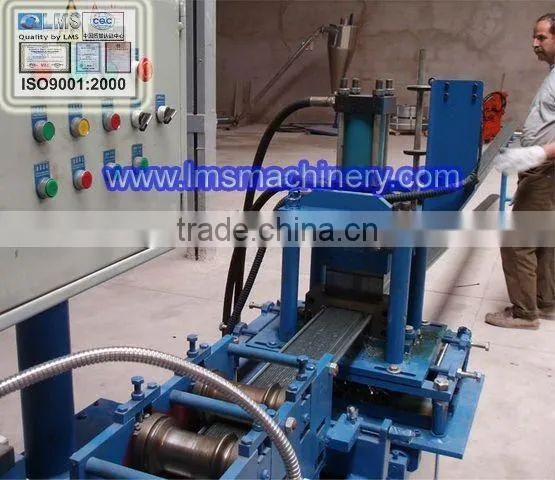

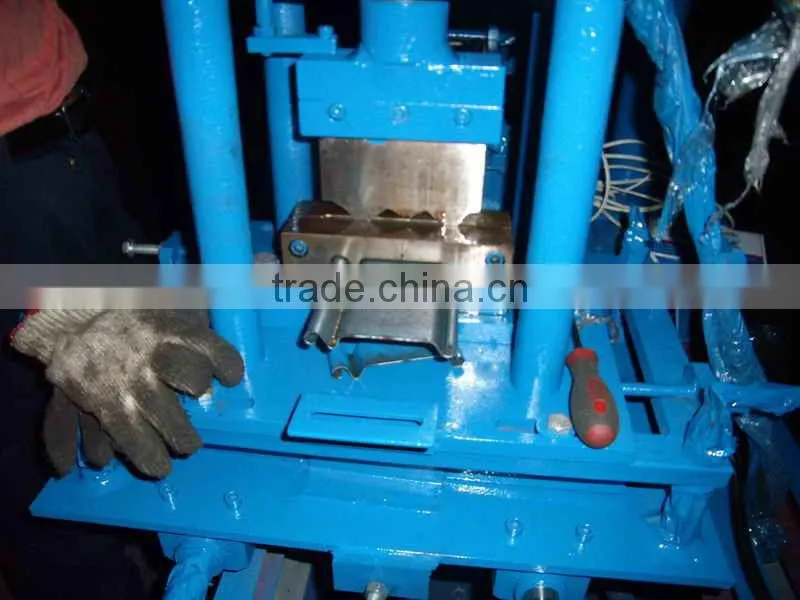

3. Hydraulic Cut-Off Device

Automatic oil-pressure auto cut-off machine

Equip with cutting mould 1 set ( with waste to cut-off)

Motor: 3kw



door frame roll forming machine





4. Run-Out Table

Precision welding by #8 channel steel

Length : 6M



door frame roll forming machine

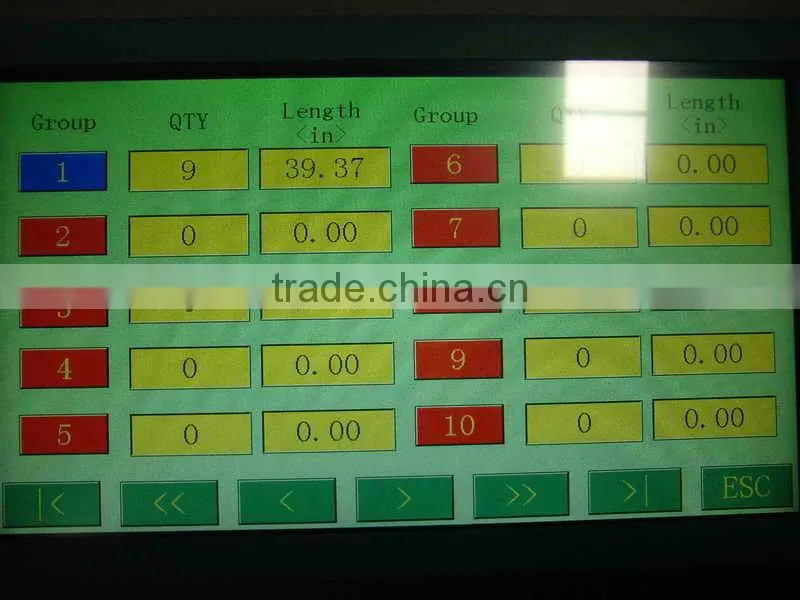

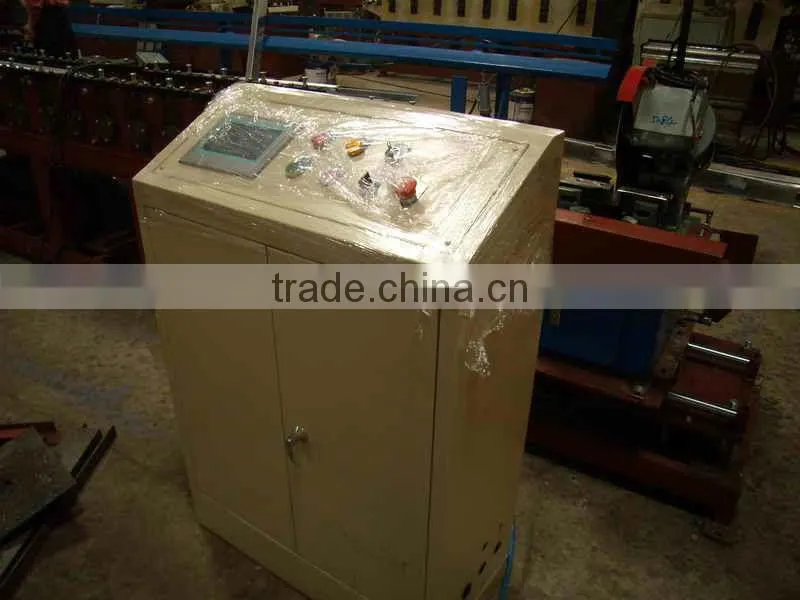

5. Eletronic Control System

Use normal electrical components to control

Main component : Taiwan Shi Lin or joint venture

Length decided by switch

Adopt to stop to cut-off

Power supply:380V 50Hz



door frame roll forming machine

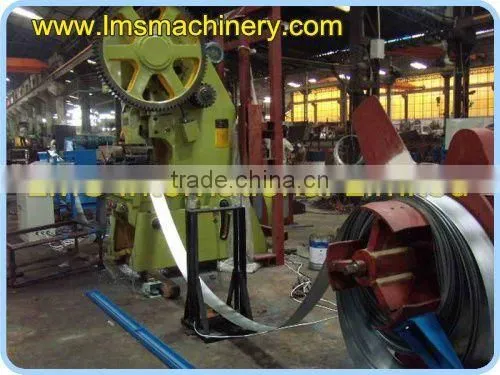

Pictures

We and Our Customers

door frame roll forming machine

Terms:



l PAYMENT TERM

By T/T, 40% as Deposit and 60% Balance Before Shipment.

l DELIVERY DAYS

75 DAYS

l INSTALLATION, MAINTENANCE AND OPERATOR TRAINING

1. 1 year guarantee for spare parts is included in quotation.

2. The operator training in our factory is free.

3. The technician could be sent for installation and operator training at site, but the fee should be discussed separately.

LMS metal door shutter roll forming machine
