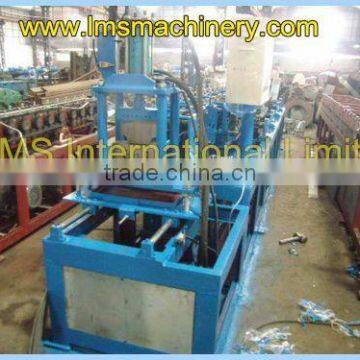

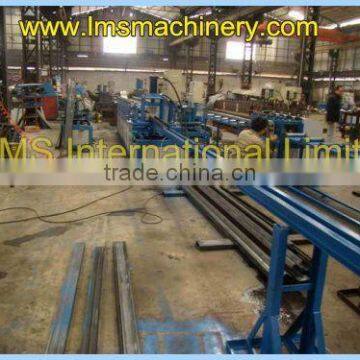

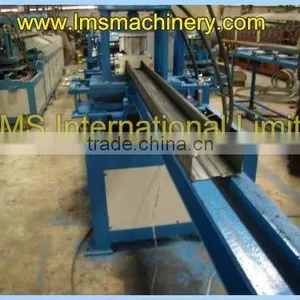

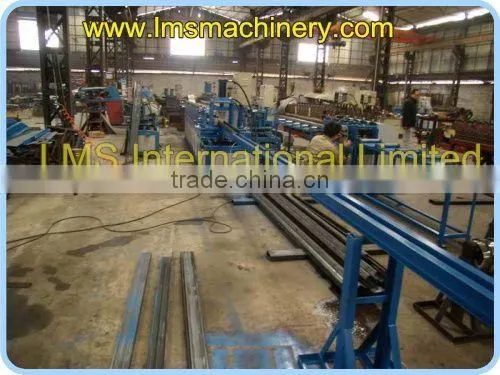

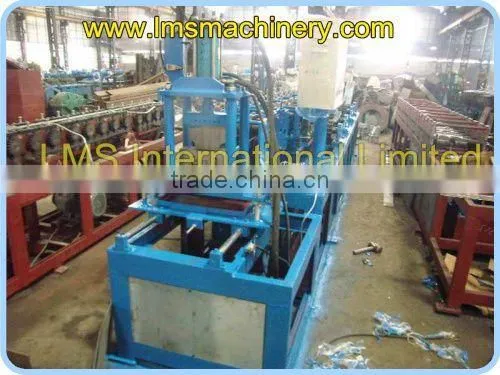

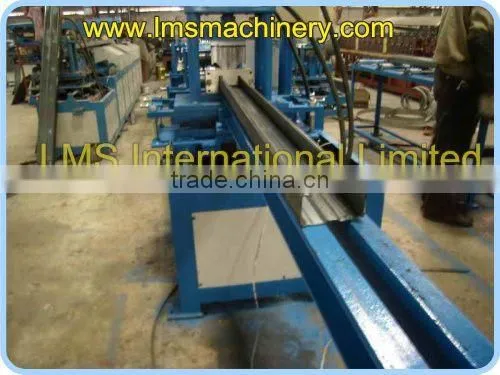

light gauge steel framing machine, metal stud and truss profile roll forming machine
Production description: C channel C channel steel roll forming machine
C channel, stud, track, runner, U channel, Drywall system roll forming machine width adjustable
Machine introduction:
LMS roll forming machine which takes the COPRA, designing software for cold rolling production and applies for the first step of rolling design, calculation, molding technique simulation, blueprint optimization and roller design to rough molding management, digital machining and quality control. LMS applies for the COPRA in the whole process. The greatness of COPRA is combined with LMS's great experience of twenty years completely and this make LMS be with might double in production for clients. Realize your dream with CORPA.
Main Specification :
material: steel coil
material thickness : 1.6 mm
production speed: 0-50m/min
profile width : 38mm, heigth: 22mm
Components:
A. Decoiler 1 set
capacity: 2tons
coil inner diameter: 460mm-530mm
coil outer diamteter: max1300mm
coil width: 20mm-200mm
speed: max.80m/min
maunal expansion

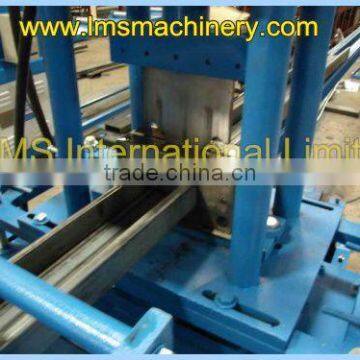

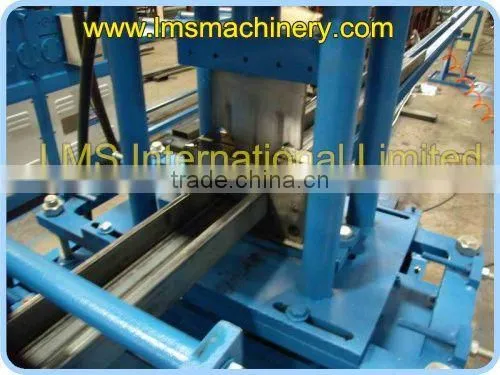

B: Roll forming machine 1set
roller station: 12 sets
roller material: Cr12 mold steel
heat treatment: HRC 58°C-60°C
torii: independent guide column type,side wall thickness: 54mm
drive: motor and worm speed reducer
main shaft material: 40Cr, shaft diameter: 48mm

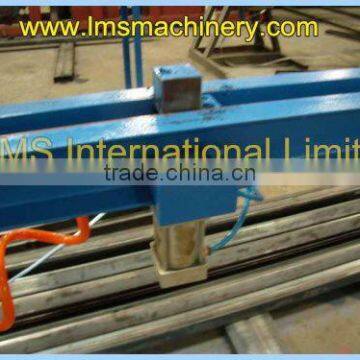

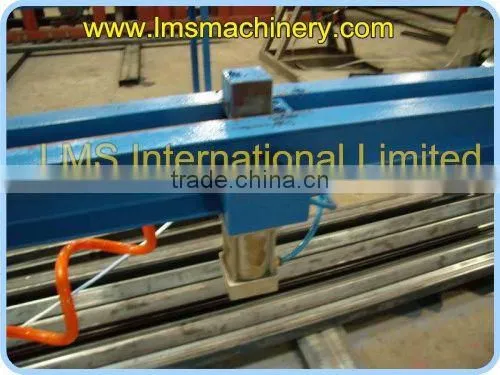

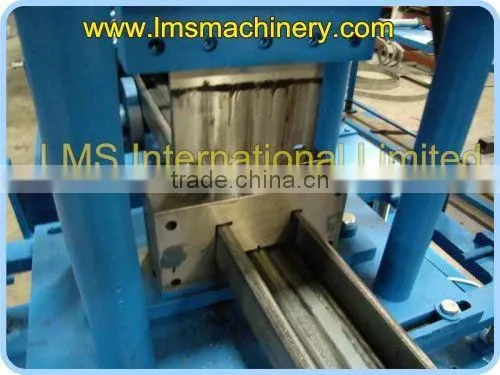

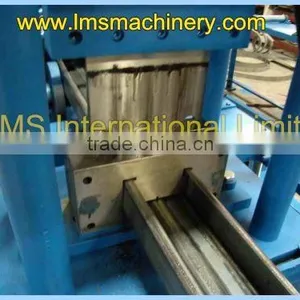

C: Cut-off part 1 set
hydraulic system
automatic punching and cutting, no stop and no speed reduce
blade material: Cr12Mov
D: Electronic system 380V 50Hz
PLC control
PLC FATEK
Frequency converter SHIHLIN
Servo motor and drive YASKAWA
INSTALLATION, MAINTENANCE AND OPERATOR TRAINING
In correct operation & maintaining, excluded the electric elements, guaranteed against malfunction due to manufacturing defects for 12 months from thedate of loading. Repairs will be made free of charge.
