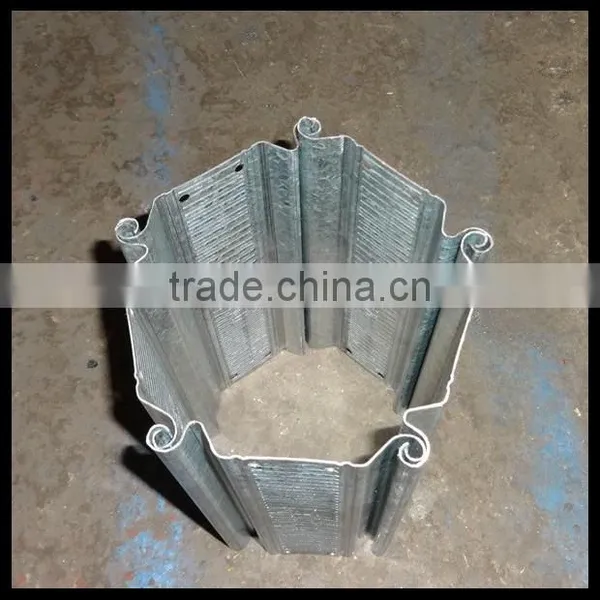

LMS guangzhou manufacture roller shutter door making machine
roll forming machine
roll shutter door making machine
roll shutter door roll forming machine
1. Manual decoiler
Hand operated type
Max. outer diameter of coil: Ø 1400mm
Inner diameter of coil : Ø 400-450mm
Max width of coil : 400mm
Capacity : 2000kg
Quantity : One
2. Roll forming main machine

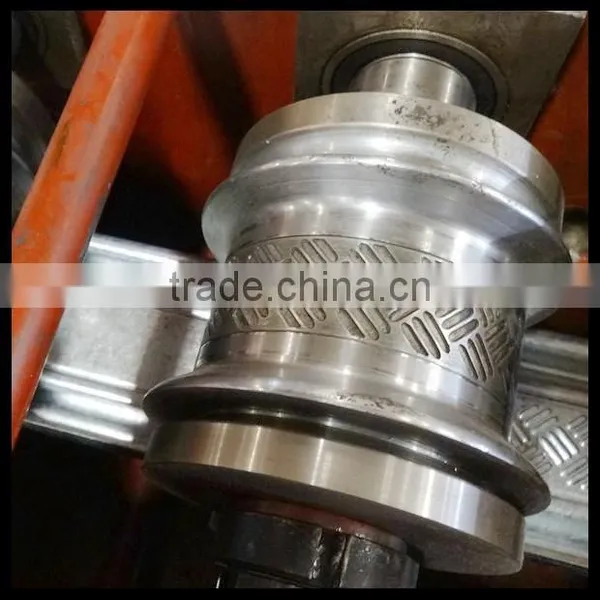

Roll forming station : 14 Nos
Material of roller: Gr15 steel
Surface heat treatment of roller : HRC 55°~57°
Roller surface with polishing treatment
Roller main shaft diameter : Ø 40 mm, material :45#steel
Main bearing : 60208
Side wall thickness : 22mm
Girth Gear thickness : 35mm
Motor : 5.5 kw , cylinder pin speed reducer
Forming speed : 10 m/min
3. Hydraulic Cut-Off Device
Automatic oil-pressure auto cut-off machine
Equip with cutting mould 1 set ( with waste to cut-off)
Motor: 3kw
4. Run-Out Table
Precision welding by #8 channel steel
Length : 6M
5. Eletronic Control System
Use normal electrical components to control
Main component : Taiwan Shi Lin or joint venture
Length decided by switch
Adopt to stop to cut-off
Power supply:380V 50Hz
