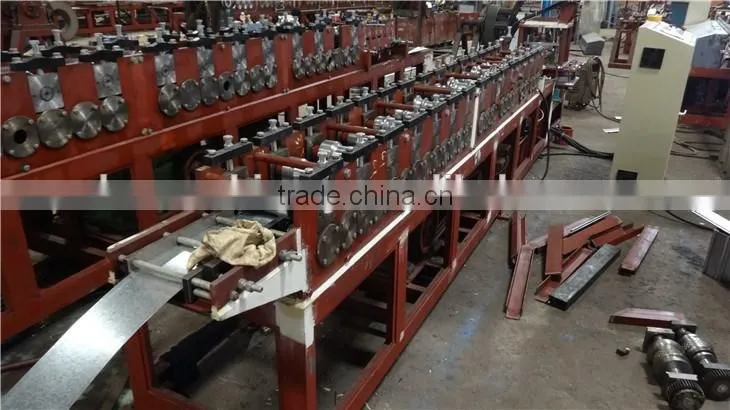

LMS Used Roller Shutter Roll Forming Machine
-
rolling door making machinery
-
roller shutter forming machine
-
making machine
-
Place of Origin: Guangdong, China (Mainland)
Brand Name: LMS
Model Number: LMS Rolling Shutter Slat Roll Forming Machine
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Mode: Auto
Control system: PLC
Customized: Avaliable
Material: Galvanized Steel and Prepainted Galvanized Steel
Voltage: 380V
Weight: 2000kg
Warranty: 12 Months
roll forming machine: NEW
door shutter slat roll forming machine: Auto
shutter slat roll forming machine: Blue & White
Packaging & Delivery
Packaging Details: IN BULK FOR shutter slat roll forming machine
Delivery Detail: Shipped in 75 days after payment

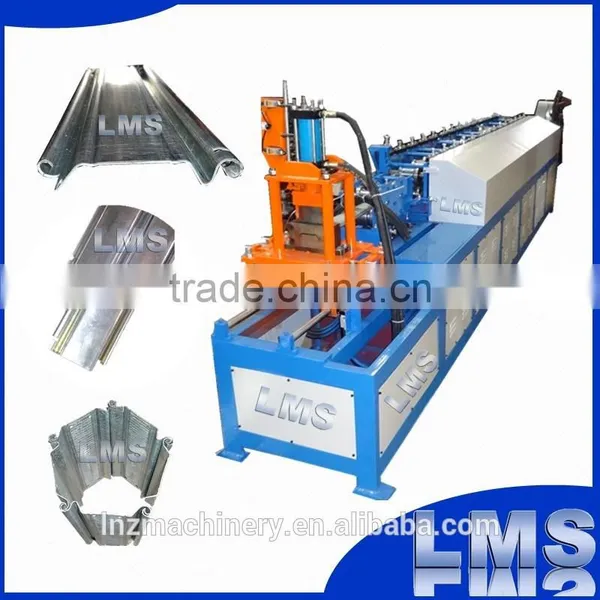

LMS Hot sale automatic door shutter slat roll forming machine
roll forming machine
door shutter slat roll forming machine
LMS Hot sale automatic door shutter slat roll forming machine

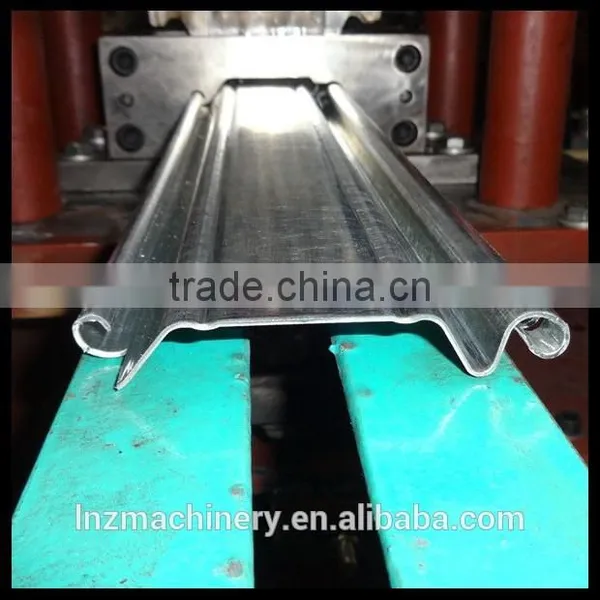

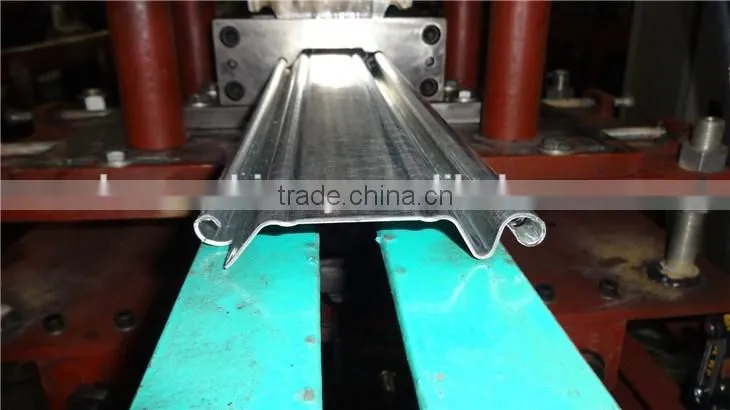

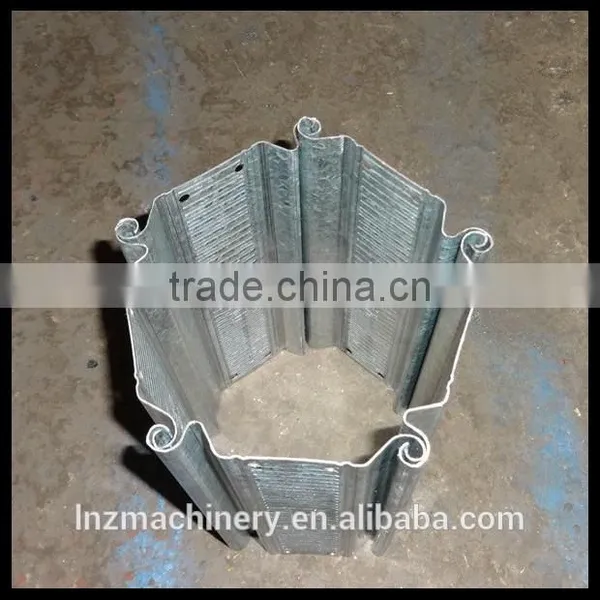

Profile DrawingRolling Shutter Slat Roll Forming Machine
Working Flow
Rolling Shutter Slat Roll Forming Machine
machine Components:
No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Output table 1 SetRolling Shutter Slat Roll Forming Machine
Technical Parameters:
1. Manual decoiler
Hand operated type
Max. outer diameter of coil: ? 1400mm
Inner diameter of coil : ? 400-450mm
Max width of coil : 400mm
Capacity : 2000kg
Quantity : One
Rolling Shutter Slat Roll Forming Machine

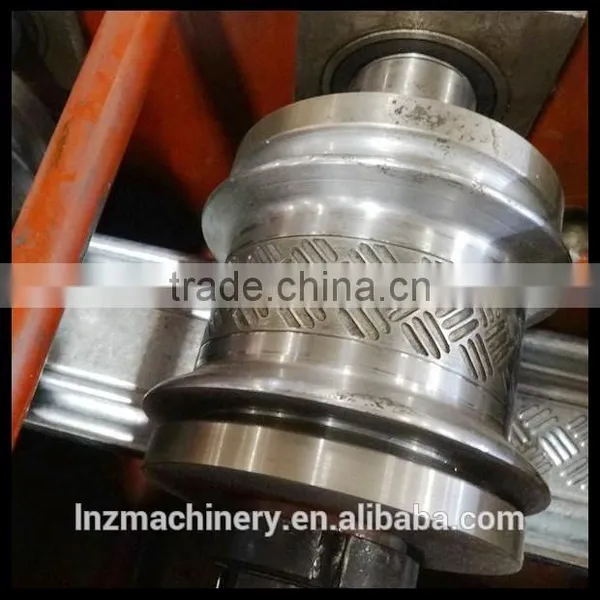

2. Roll forming main machine
Roll forming station : 14 Nos
Material of roller: Gr15 steel
Surface heat treatment of roller : HRC 55°~57°
Roller surface with polishing treatment
Roller main shaft diameter : ? 40 mm, material :45#steel
Main bearing : 60208
Side wall thickness : 22mm
Girth Gear thickness : 35mm
Motor : 5.5 kw , cylinder pin speed reducer
Forming speed : 10 m/min
Rolling Shutter Slat Roll Forming Machine
3. Hydraulic Cut-Off Device
Automatic oil-pressure auto cut-off machine
Equip with cutting mould 1 set ( with waste to cut-off)
Motor: 3kw
Rolling Shutter Slat Roll Forming Machine
4. Run-Out Table
Precision welding by #8 channel steel
Length : 6M
Rolling Shutter Slat Roll Forming Machine
5. Eletronic Control System
Use normal electrical components to control
Main component : Taiwan Shi Lin or joint venture
Length decided by switch
Adopt to stop to cut-off
Power supply:380V
Rolling Shutter Slat Roll Forming Machine -

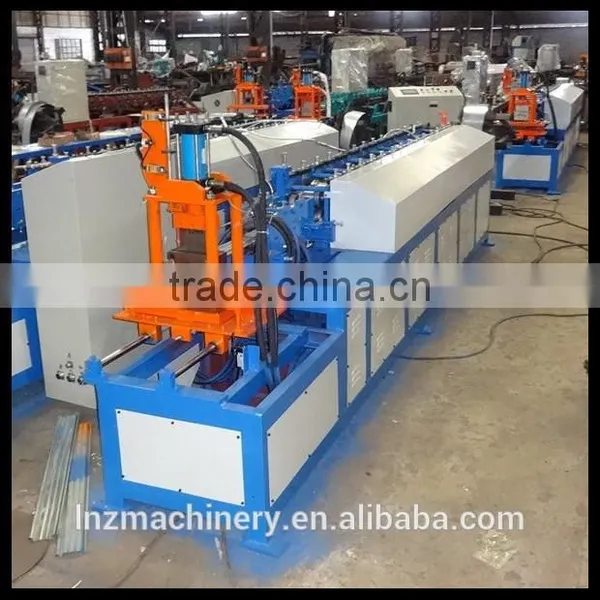

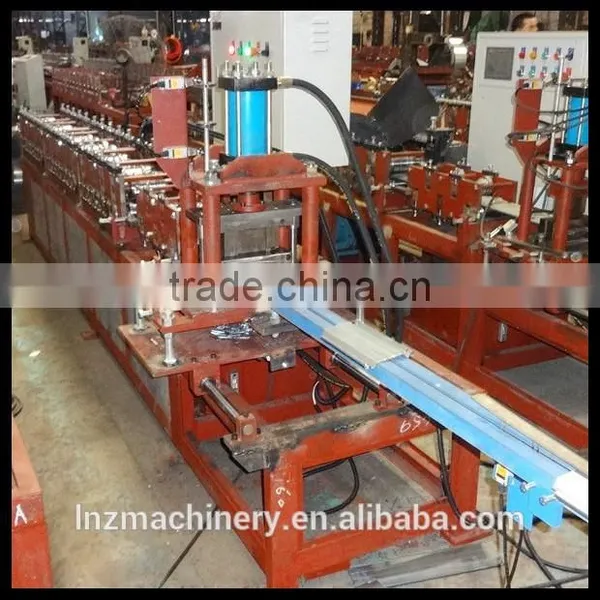

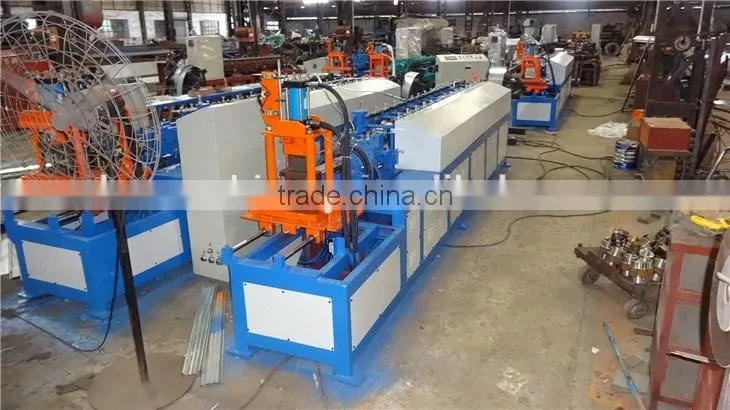

Photos:
We and Our CustomersRolling Shutter Slat Roll Forming Machine
Terms:
l PAYMENT TERM
By T/T, 40% as Deposit and 60% Balance Before Shipment.
l DELIVERY DAYS
75 DAYS
l INSTALLATION, MAINTENANCE AND OPERATOR TRAINING
1. 1 year guarantee for spare parts is included in quotation.
2. The operator training in our factory is free.
3. The technician could be sent for installation and operator training at site, but the fee should be discussed separately.
Rolling Shutter Slat Roll Forming MachineLMS WELCOME YOU
