Storage rack steel profile making machine
Storage Rack Machine
Storage Beam Machine
Storage Upright Machine
1.Machine Introduction
INTRODUCTION

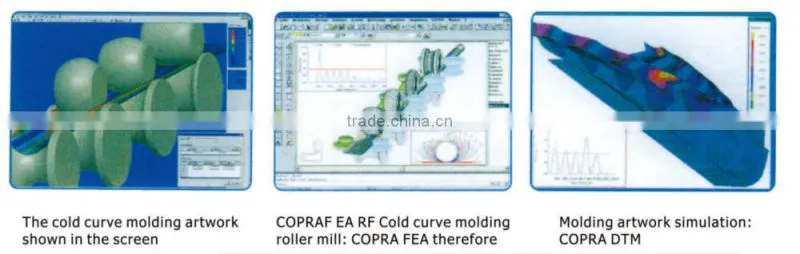

LMS roll forming machine which takes the COPRA, designing software for cold rolling production and applies for the first step of rolling design, calculation, molding technique simulation, blueprint optimization and roller design to rough molding management, digital machining and quality control. LMS applies for the COPRA in the whole process. The greatness of COPRA is combined with LMS's great experience of twenty years completely and this make LMS be with might double in production for clients. Realize your dream with CORPA.
2.Machine Specification
TECHNICAL PARAMETER FOR COUPLE BOX BEAM ROLL FORMING MACHINE
I Main Specification:
i. Materials : hot rolled steel
ii. Material Thickness :1.8- 2.6 mm
Production Process:
material coil - decoiling - roll-forming - hydraulic mould cutting - profile

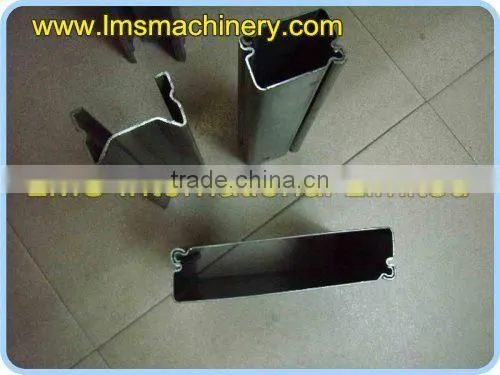

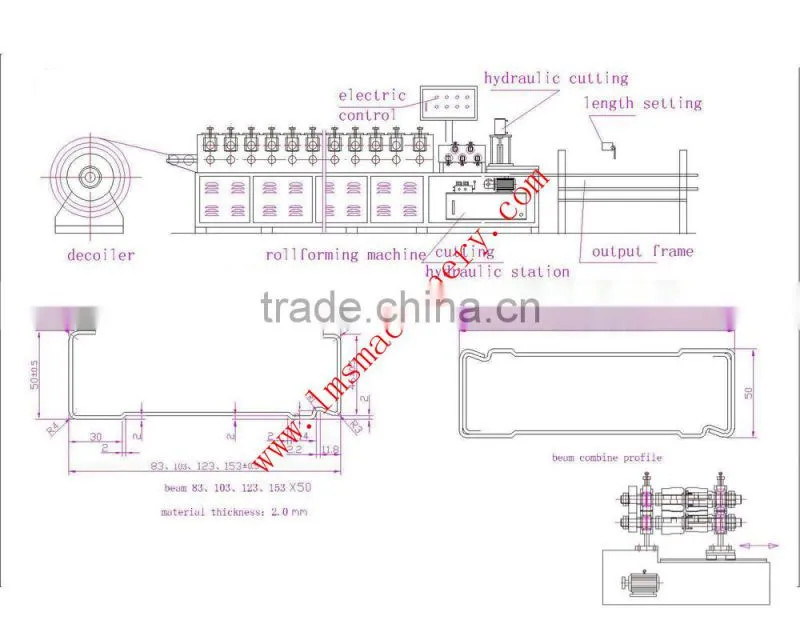

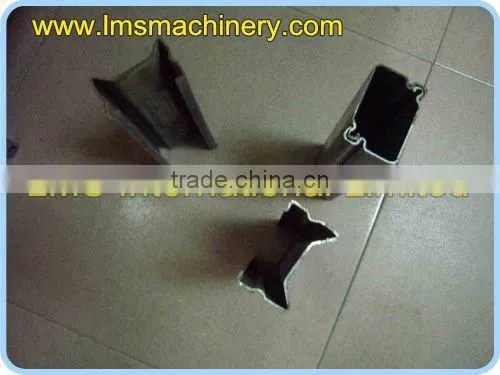

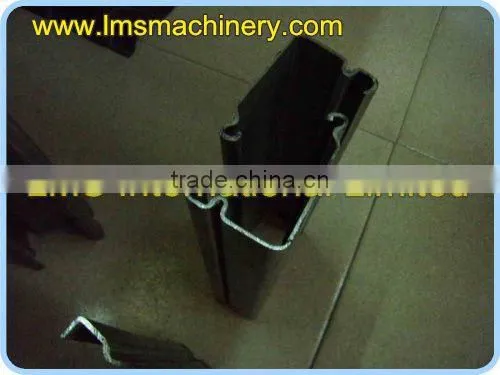

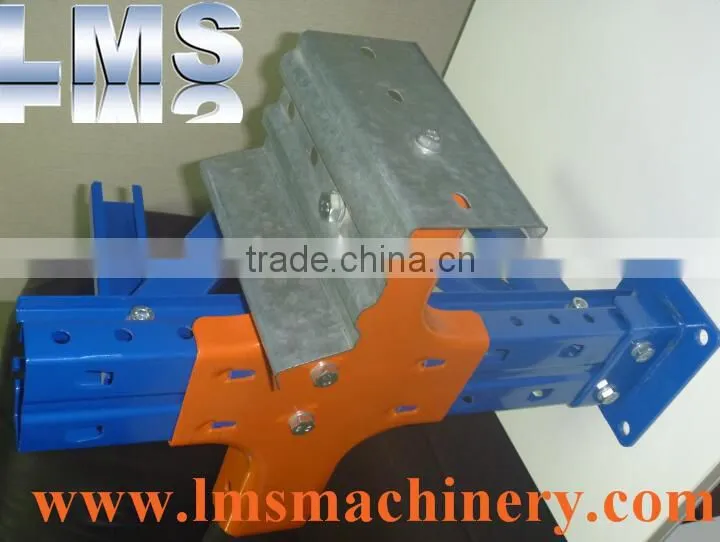

Profile drawing as follows:
The complete roll forming line comprise following parts:

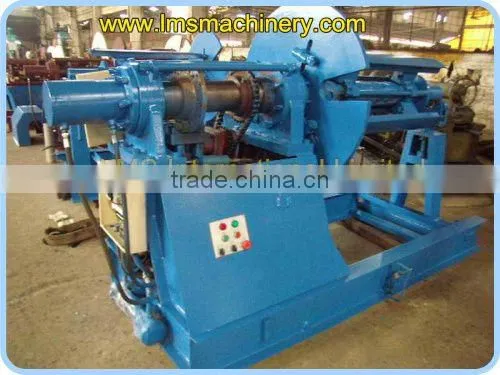

1. Hydraulic DECOILER 1 SET
(1) Max. Width 800 mm
(2) Inner Diameter 470 - 520 mm
(3) Out Diameter 1'600 mm
(4) Max. Loading Capacity 5'000 kgs
(5) Manual operating type hydraulic
(6) Power 5.5KW
(7) Speed 0-20 rotation / min
Or Manual type decoiler:
i Hand Operated Decoiler 1 set
(1) Decoiler Type Hand Operated Expansion
(2) Max. Outer Diameter of Coil 1'400 mm
(3) Max Inner Demeter of Coil 400 - 450 mm
(4) Max. Width of Coil 500 mm
(5) Loading Capacity 5,000 kgs
ii Main roll forming machine 1 set
(1) Roll Forming Stations 16 Nos., Additional 5 Nos. for Straightening
(2) Profile Width & Height Adjustment by motor screw
(3) Roller's Material Gr15 Steel
(4) Roller's Main Shaft 55mm, in 45# Steel
(5) Main Bearing 60309
(6) Gear Thickness 45 mm, under 45# HF Surface Treatment
(7) Roller's Treatment Surface Polished Treatment
(8) Main Motor 11 kw, 350 Gearbox
(9) Machine Side-Wall Thickness 25 mm
(10) Roll Forming Speed 12 meters / minute
(11) Heat treatment hardness HRC55-57
(12) Equipped With Water Cooler Device
iii Hydraulic Mould Cut-Off Device 1 set
(1) Cutter Type :Hydraulic, Automatic Cut-Off by Mould
(2) Cut-Off Mould : 3 Sets, Selvage Cutting
(3) Cutting die material: Gr12 steel
(4) Motor : 4.0 kw
(5) Heat treatment hardness: HRC57-59
iv Run-Out Table :1 set
(1) Structure :Welded by Angle Profile
(2) Length :6 Meters
ELECTRONIC CONTROL SYSTEM
COMMON CONTROLLER
(1) Common Controller :Controlled by Knob / Button
(2) Length Controller :by Baffling&End-Switch on Run-Out Table
(3) Length Cutting :Roll Forming Machine Stops, then Cuts
(4) Electronic Spear Parts: TAIWAN Shilin or Joint Venture Company
(5) Power Supplier :380 V, 3Phs, 50Hz
In bulk or in wooden case
Delivery days: 30 days
