Hot sale iron guillotine cutter guillotine shear machine
- 60 Set / Sets per Month
- Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- REBOUND CNC plasma cutting machinery with bevel head 30mm
- REBOUND cnc detachable gantry plasma and flame cutting machinery sheet
- Best price cnc detachable plasma cutting machinery for gas-plasma cutting
- helical rack and pinion cnc detachable plasma cutting machinery automatic high safety level
- pump inside air detachable plasma cutting machinery sliding work bench
- solenoid valve for detachable plasma cutting machinery lokermann high safety level
Product Details
Condition: | New | Place of Origin: | Guizhou, China | Brand Name: | LMS |
Model Number: | QC12Y | Voltage: | 380V | Rated Power: | 5.5kw |
Dimension(L*W*H): | 2115x1500x1300mm | Weight: | 1600kg | Certification: | CE,ISO,SGS |
Warranty: | Two year after delivery | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

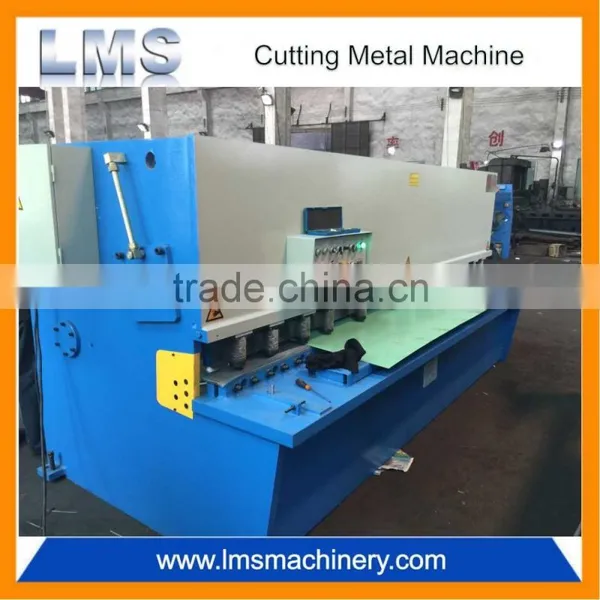

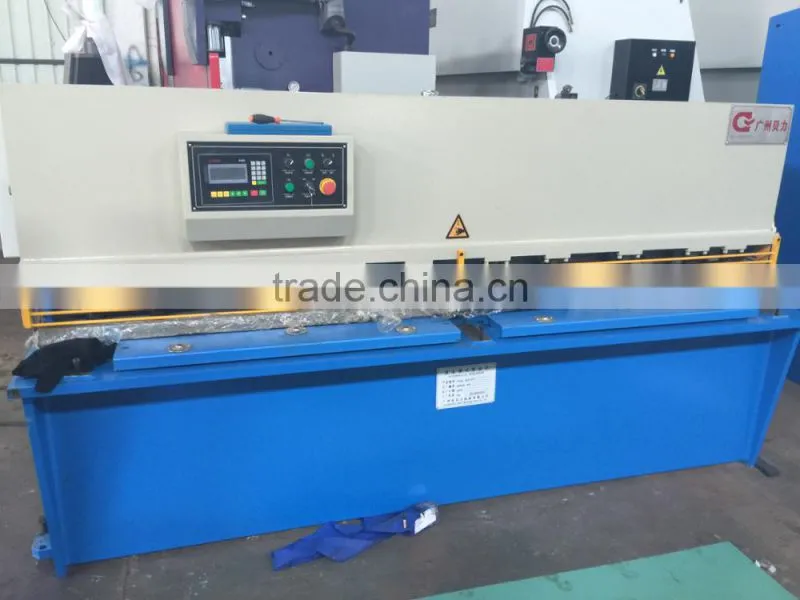

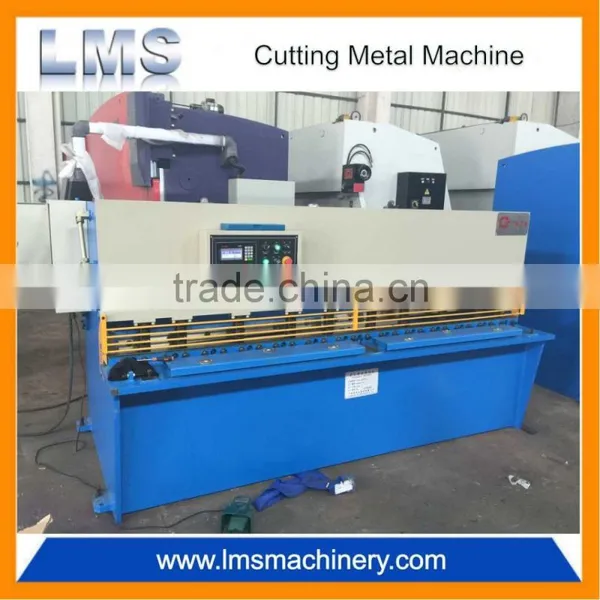

Hot sale iron guillotine cutter guillotine shear machine
iron shear machine
guillotine shear machine
iron cutter machine
The sheet metal shearing machine is of simple structure with gap auto adjustable device, optional numerical controlled back gauge, electric and manual back gauge. The hydraulic part is easy to adjust with compact structure.This cutting machine;is widely used in metal sheet industry.
Main technical parameter as follows:
Main technical parameter:
Model | Q11Y4X2500 | Q11Y6.3X2000 | Q11Y6X1300 | Q11Y3X3100 | ||
Max. cutting material | Milde steel | mm | 0.5~4 | 0.5~6.3 | 0.5~6 | 0.5~3 |
Stainless steel | mm | 0.5~2.5 | 0.5~3.5 | 0.5~3 | 0.5~2.0 | |
Cutting length | mm | 2500 | 2000 | 1300 | 3100 | |
Cutting angle | ° | 2° | 2° | 2° | 2° | |
Cutting cycle | Per minute | 12/min | 14/min | 16/min | 10/min | |
Dimension | L. | mm | 3100 | 2600 | 1900 | 3600 |
W. | mm | 1500 | 1500 | 1500 | 1500 | |
H. | mm | 1400 | 1400 | 1400 | 1400 | |
Weight | kg | 3500 | 2800 | 1800 | 4500 | |
Main motor | kw | 5.5 | 5.5 | 4 | 7.5 |
The whole structure of the QC12Y 4x2500 sheet metal shearing machine steel plate cutter manual cutting machine |
1.Totally European design, streamlined looking. This machine belongs to second genaration of Mechanical shear. Welded structure: the stress of the welded parts can be eliminated by vibration, so this cutting gives high accuracy. |
2.The motor driven precision guillotine shear adopts the England design Q11 Mechanical guillotine shear, also nemed Electro Precision Plate Shear is specially used for thin plate sheets. |
3.Different from the traditional driving methos of mechanical shear, it's one of the most advanced miniature mechanical shear, and enjoys good reputation both at home and abroad. |

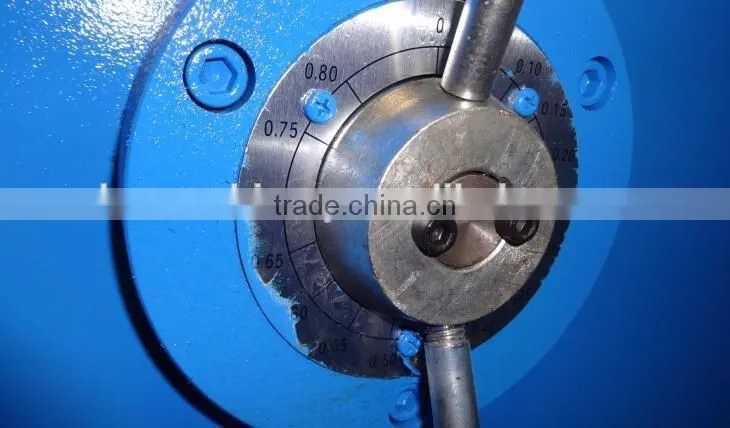

4.The low cutting angle and inclined shear direction reduce bowing and twist to a minumum. Blade clerance is easily set by a manually operated quick set device. Its an ideal precision machining equipment of metal sheet and nonferrous metal sheet. |
The features of the QC12Y 4x2500 sheet metal shearing machine steel plate cutter manual cutting machine |
1.This machine is different from the treditional driving method of mechanical shears. |
2.It is one of the most advanced miniature mechanical precision shear, and enjoys good reputation both at home and abroad. |
3.As brake motor driving though the shaft-mouted speed reduction unit for safety and low noise operation. |
4.The low cutting angle and inclined shear direction reduces bowing and twist to a minimum. Blade clerance is set by a manually operated quick set device. |
5.It's an ideal true-cut machining equipment of metal sheet and nonferrous metal sheet. |
6.A brakemotor driving through a shaft-mounted speed reduction unit and controlled by a selector switch for single or continuous strokes. |
7.The machine by the European Union CE certificaiton and ISO quality system certificaiton. |
QC11Y 3x1300 sheet metal shearing machine
