Hydraulic Corner Notcher, Variable Angle Cutting Machine
US$ 500 - 1,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
LMS
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Notching Machine, Metal Plate Angle Cutting MachineUS$ 500 - 1,000MOQ: 1 Set -
Q28B Hydraulic Metal Plate Sheets Variable Fixed Angle Corner NotchingUS$ 500 - 1,000MOQ: 1 Set
-
HIGH QUALITY HYDRAULIC PLATE ANGLE NOTCH SHEAR MACHINEUS$ 500 - 1,000MOQ: 1 Set
-
Variable Angle Hydraulic Notching MachineUS$ 500 - 1,000MOQ: 1 Set
-
35 to 140 Degree Hydraulic Metal Plate Sheets Variable Angle Corner Stainless Steel Notch Cutting MachineUS$ 500 - 1,000MOQ: 1 Set
Condition
New
Place of Origin
Guangdong, China
Brand Name
LMS
Model Number
Q28B
Voltage
220V/380V
Rated Power
4.0kw, 50HZ/60HZ
Dimension(L*W*H)
970*1100*1200
Weight
1055KG
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

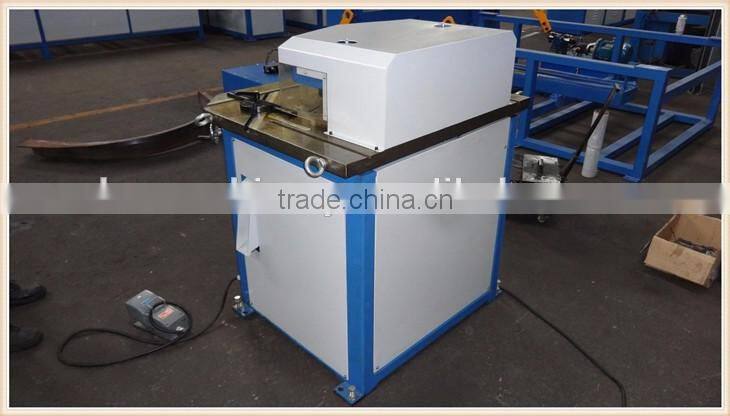

Hydraulic corner Notcher, Variable angle cutting machine
Characteristics
Hydraulically driven and constructed with steel welded plate
Giving a rigid working platform
Can be adjusted through a range of 40°-130°angles
Can also cut right-angle workpiece with a size of 200X4mm
Suitable for use in various notching industries, like hvac air duct machine, building industry ect.
Products Information
This hydraulic notching machine is hydraulic driven, the machine shelf is the structure of welded steel plate, with enough rigidity and intensity. The hydraulic notching machine can adjust angle between 40°and 130°freely, and also cut right-angle workpiece with a size of 200 x 4mm. It is suitable for shearing angle of all kinds of hardware.
Main technical parameter:
LMS metal sheet angle notching / cutting machine
| Model | Q28B 4 x 200 | Q28A 4 x 250 | ||
| Notching thickness | Mild steel | mm | 0.5-4 | 0.5-3 |
| Stainless steel | mm | 0.5-2 | 0.5-1.5 | |
| Notching angle | ° | 40° - 130° | 90° | |
| Dimension | L. xW.x H. | mm | 970 x 1100 x 1200 | 970 x 1100 x 1200 |
| Weight | kg | 1055 | 640 | |
Main technical parameter:
| Model | Q11 1.5 x80 | Q11 A1.5x80 | ||
| Thickness | mm | 1.5 | 1.5 | |
| Nothing length | mm | 80 x 80 | 80 x 80 | |
| Motor | kw | Manual | Air power | |
| Dimension | L. | mm | 1050 | 1050 |
| W. | mm | 300 | 600 | |
| H. | mm | 300 | 300 | |
| Weight | kg | 60 | 95 |
|
