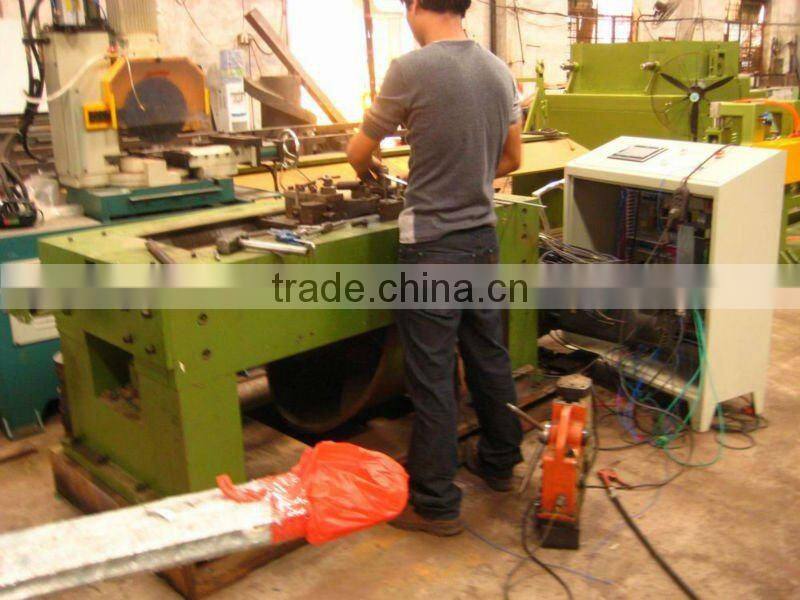

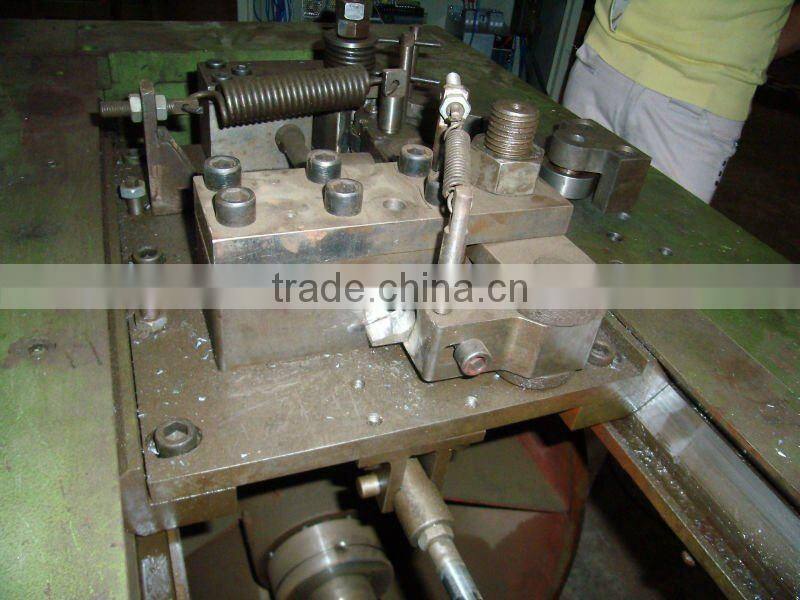

Help CenterCombined Drawing Machine- Cam Shear
Related Products
LMS combined drawing machine is professional in drawing metal tube, rod and wire with high precision, high efficiency. Also, it can deal with many types of odd-shape materials, such as hexagonal section, round shape and many other types. We are occupied in manufacturing a wide range of combined drawing machines that are fabricated by using high grade raw material and are available in market leading prices as per the clients demand. Our combined drawing machines are durable, easy to install and are available in varied sizes and shapes. Besides this they are applicable in cold bright bar drawing and many industries. Composition Combined drawing machine line is composed by: pointing machine, paying off device, pre-straightening machine, drawing machine, precision straightening machine, scaled cutting machine, material guiding machine, polishing machine, material collecting machine and controlling machine, etc.
| Technical Parameters: | |||||
| Mode | LBZJ-2 | LBZJ-4 | LBZJ-6 | LBJZ-10 | LBJZ-20 |
| Rated drawing force(KN) | 20 | 40 | 60 | 100 | 200 |
| Drawing speed(m/min) | 5-50 | 5-50 | 5-40 | 5-40 | 5-40 |
| polishing speed(m/min) | 80 | 80 | 80 | 80 | 70 |
| spec. of product (round)(mm) | 3-8 | 4-12 | 6-15 | 10-25 | 15-35 |
| spec. of product(square)(mm) | 3-7 | 4-11 | 6-12 | 10-23 | 15-35 |
| spec. of product(hexagonal)(mm) | 3-7 | 4-12 | 6-15 | 10-25 | 15-35 |
| length of product(m) | 2-6m | 2-6m | 2-6m | 2-6m | 2-6m |
| surface roughness (rod) | Ra0.4-Ra1.6 | Ra0.4-Ra1.6 | Ra0.8-Ra1.6 | Ra0.8-Ra1.6 | Ra0.8-Ra1.6 |
| straightness accuracy (rod)(mm/m) | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 | .03-0.8/m | .03-0.8/m |
| straightness accuracy (odd-shape )(mm/m) | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 | 0.3-0.8/m | 0.3-0.8/m |
| total motor power (kw) | 42 | 72 | 120 | 145 | 245 |
| main motor power(kw) | 30 | 55 | 90 | 110 | 200 |
| weight (t) | 15 | 16 | 20 | 28 | 40 |
| dimension(m)(L*W*H) | 22*1.6*0.9 | 23.1*1.6*0.9 | 28*2*1.2 | 28*2.8*1.6 | 28*3.5*2.2 |
