Help CenterCombined Drawing Machine
US$ 10,000 - 1,000,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LMS
Model Number:
LBZJ
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Round Bar Straightening and Polishing MachineUS$ 1,000 - 100,000MOQ: 1 Set -
Odd-Shape Rod Straightening MachineUS$ 1,000 - 100,000MOQ: 1 Set
-
Wire Straightening and Cutting MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
Round Bar And Wire Polishing MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
Two Roller Straightening MachineUS$ 1,000 - 100,000MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
LMS
Model Number
LBZJ
Specifications
Combined drawing machine1,professional in drawing metal tube
2,rod and wire with high precision
3,high efficiency
|
|
|
|
|
|

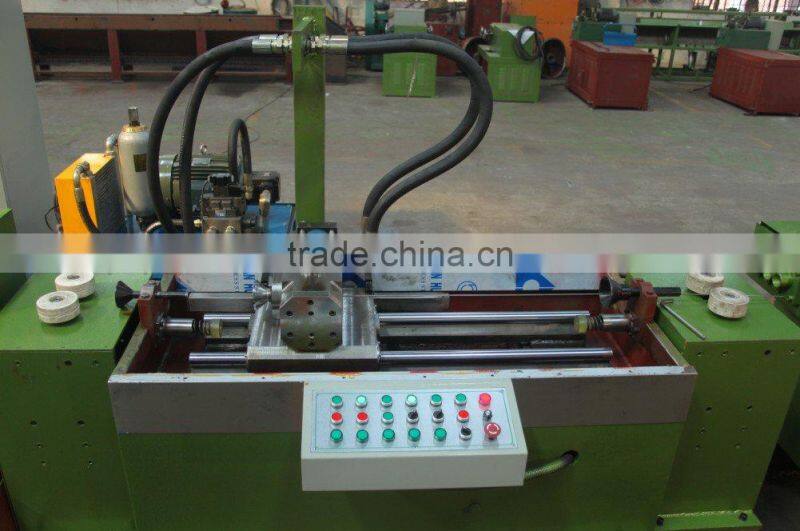

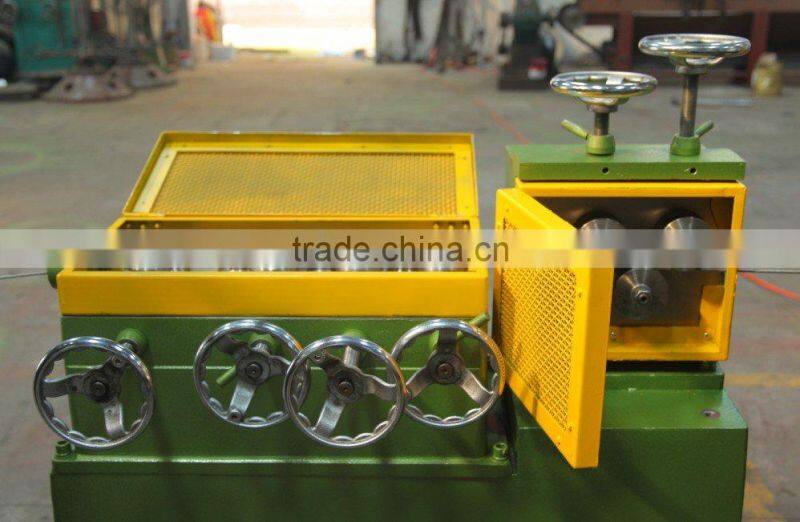

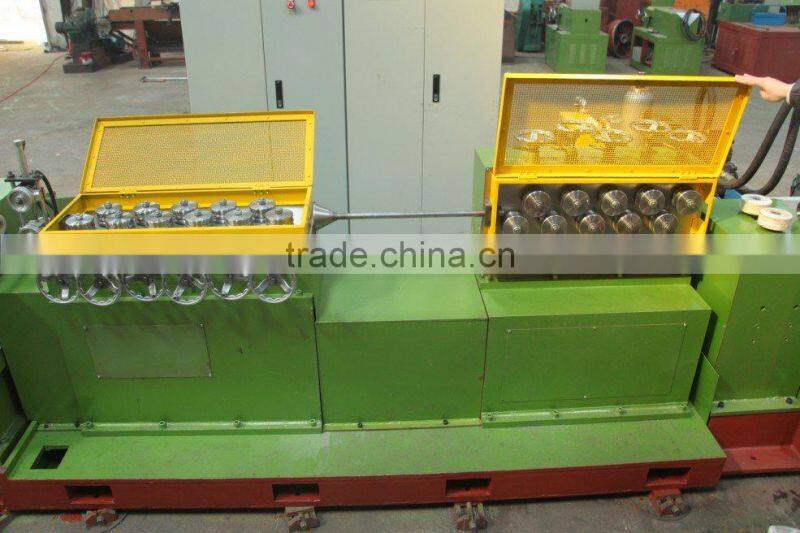

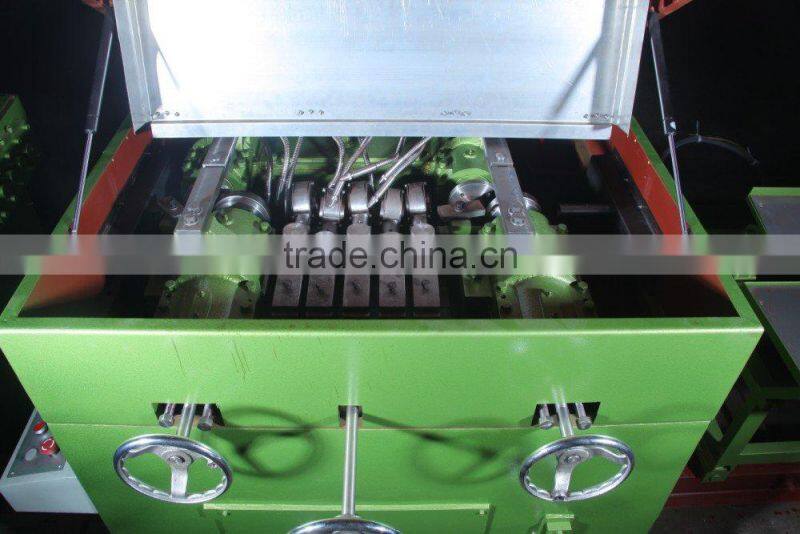

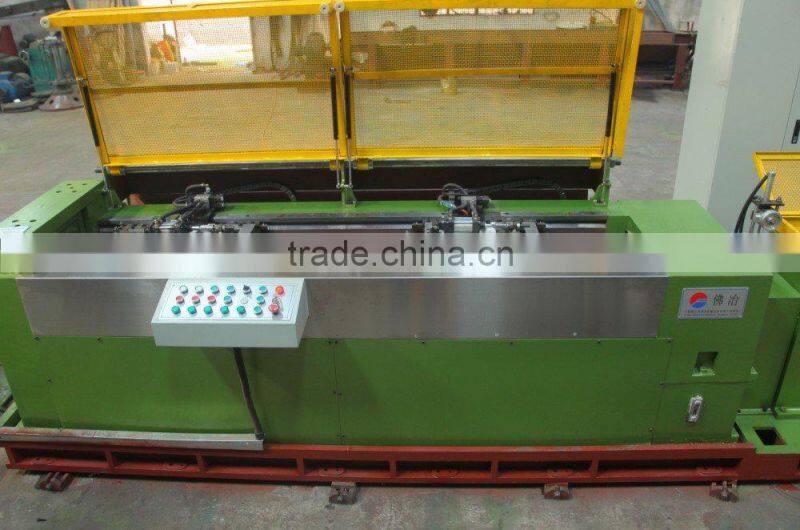

LBJZ extending combined drawing machine sets is professional in drawing metal tube, rod and wire with high precision, high efficiency. This combined drawing machine stocks various of working procedures such like cutting, initial straightening, drawing, precision straightening, scaled cutting, delivering, finished-product collecting etc. on one unit of equipment, and also, this combined drawing machine can deal with many types of odd-shape materials, such as hexagonal section, round shape and many other types.
Our combined drawing machine are very usefule for the steel, brass and alloy process industries.
Following table is the parameters of our combined drawing machines.
| LMS-LBZJ Combined Drawing Machine | |||||
| Mode | (0)LBZJ-2 | ()LBZJ-4 | ()LBZJ-6 | () LBJZ-10 | () LBJZ-20 |
| Rated drawing force(KN) | 20 | 40 | 60 | 100 | 200 |
| Drawing speed(m/min) electrodeless | 5-60 | 5-60 | 5-60 | 5-60 | 5--50 |
| polishing speed(m/min) | 80 | 80 | 80 | 80 | 70 |
| spec. of product(round)(mm) | 3--8 | 4--12 | 6--15 | 10--25 | 15--35 |
| spec. of product(square)(mm) | 3∼7 | 4∼11 | 6∼12 | 10--23 | 15-35 |
| spec. of product(hexagonal)(mm) | 3∼7 | 4∼12 | 6∼15 | 10--25 | 15--35 |
| length of product(m) | 2-6+-4∼8mm | 2-6+-5∼10mm | 2-6+-5∼10mm | 2-6+-5mm | 2-6+-5mm |
| surface roughness (rod) | Ra0.4-Ra1.6 | Ra0.4-Ra1.6 | Ra0.8-Ra1.6 | Ra0.8-Ra1.6 | Ra0.8-Ra1.6 |
| straightness accuracy (rod)(mm/m) | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 | .03-0.8/m | .03-0.8/m |
| straightness accuracy (odd-shape )(mm/m) | 0.3-0.8 | 0.3-0.8 | 0.3-0.8 | 0.3-0.8/m | 0.3-0.8/m |
| total motor power (kw) | 42 | 72 | 120 | 145 | 245 |
| main motor power(kw) | 30 | 55 | 90 | 110 | 200 |
| weight (t) | 15 | 16 | 20 | 28 | 40 |
| dimension(m)(L*W*H) | 22*1.6*0.9 | 23.1*1.6*0.9 | 28*2*1.2 | 28*2.8*1.6 | 28*3.5*2.2 |
