2017 factory supply wire drawing Machine for copper and steel high quality best price
I.FY-6T Wire drawing machine
(We have many types base on the wires'size ,suchas 2T,4T,6T,10T,30T ect.,)
Our FY-6T wire drawing machine is a full Automation Equipment which could draws the metal wires rod to section bar once completed.It has the advantages of accurate geometric shap,good surface roughness,high dimensional.
Its process include:Decoil,initial straightening,cold drawing,precision straightening,CNC shearing cutting,polishing and finished products collection.
Our FY-6T combined cold drawing machine contains many parts,The main parts are include
1.Decoiler and rolling rack,
2.Pre-straightening machine(V+H),
3.Cold Drawing machine,
4.Precision straightening machine(V+H).
5.CNC shearing machine(Flying shear),
6.Automatic feeder,
7.Feeding tube box.
8.Polishing machine(if you need round bar,you should have this),
9.Unloading rack.
10.Electric Control system.
1).Mitsubishi PLC;2).Weiun(Taiwan) Touch screen;3).Frequency converter(China);4).US Parker servo drive;5).Main low-voltage accessories using Siemens or Schneider brand.
II.Advantages
1.No loss of raw materials.
2.High efficiency, higher speed,High accurancy
3.Low noise,High safety standard against accidents
4. Full automation,greatly Reduced Cost;
5.Easy operation;
6. Finished product high quality..
Note: We can design the machine according to customers' requirements.
Attention: Please look at the follow picture clearly,it will let you kown what our wire draw machine' final purpose .
III.Technical Parameters
Model |
FY-6T wire drawing machine |
processing objects |
Black metals(Carbon steel,Alloy steel,stainess steed ect.,),nonferrous metals(Copper,aluminum ect.,) wires |
Rated drawing force |
6Tons |
Drawing speed |
60m/min |
Finished products standard |
Φ6mm~Φ15mm |
Finished products length |
2m~6m |
products straightness accuracy |
<0.15 mm/m |
| Products surface roughness | Ra<1.2um |
Cutting error |
±5mm |
products ellipticity |
1/2 IT11 |
Total power |
about 140Kw |
Drawing main power |
75Kw AC motor |
Phase |
3 phase,four lines(3P+PE) |
Frequency |
50HZ |
Voltage |
As your country required |
Unit Total weight |
about 29T |
Unit Size(L*W*H)(m) |
33*2.4*1.5 |
IV.The factory real figure
1.Combined cold drawing machine
2. Decoiler and rolling rack
3.Pre-straightening machine
4.Drawing machine
5.Precision straightening machine
6.CNC shearing machine
7.Automatic feeder &Feeding tube box
9.Polishing machine(if you need round bar,you should have this)
10.Unloading rack

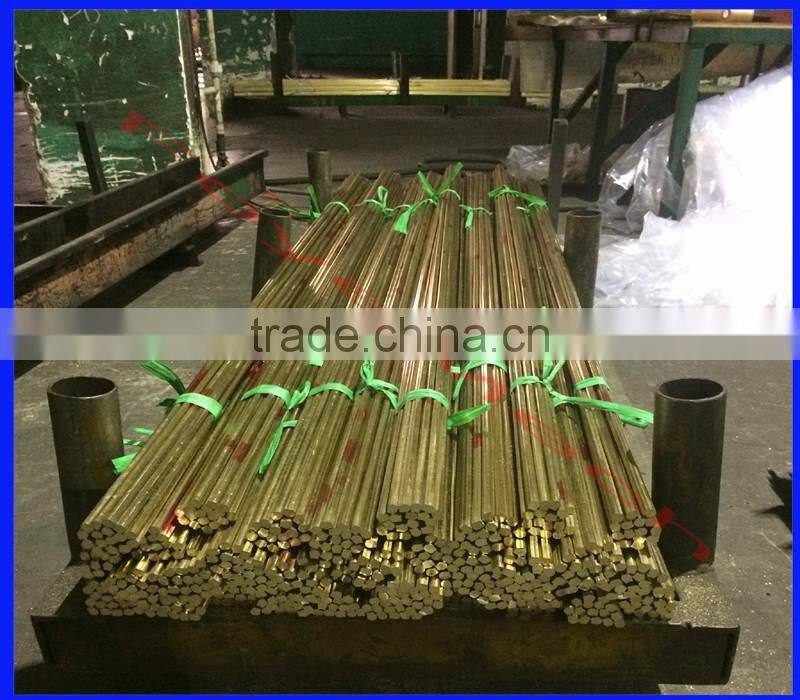

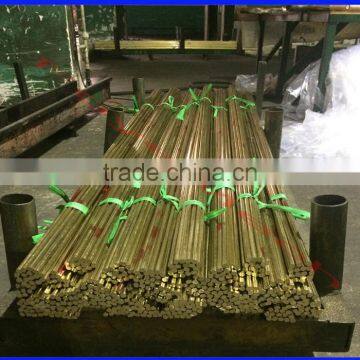

11.Finished Products
V.Packaging:standard shipping package according to the container shippment requirement, such as pallet, box and so on.The normal packages is wooden box. If export to Europ Country,the wooden box will be after fumigated. If enter container the packages is too tighter,we may use PE film to wrapping the machine. or according to customer's special request.
VI.Our Services
1.Installation and debugging: one mechanical engineer and one electric engineer will go to customer's factory for debugging after customer finished installation of the machines;
2.Guarantee: machines will be tested in our factory before shippment;
one year guarantee time for all mechanical parts and electric parts except spare parts;
we will supply all drawings of spare parts for customer's actual production.
VII.How to contact us
Name:Nicky Wu
Email:nicky@
Tel:+86 15360508607
Wechat:15360508607
Watsapp:+86 15360508607
Skype:15360508607
QQ:1226251335
Welcome to ask for more details,we will reply you as soon as possible.
Welcome to our factory,we will show you aroud at anytime.
