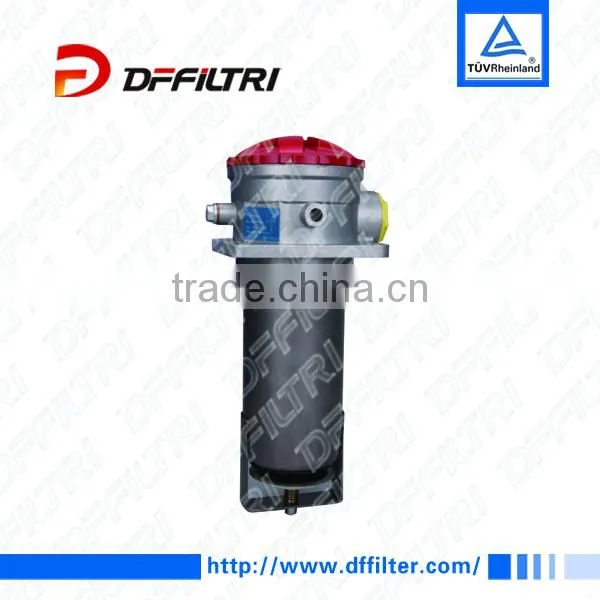

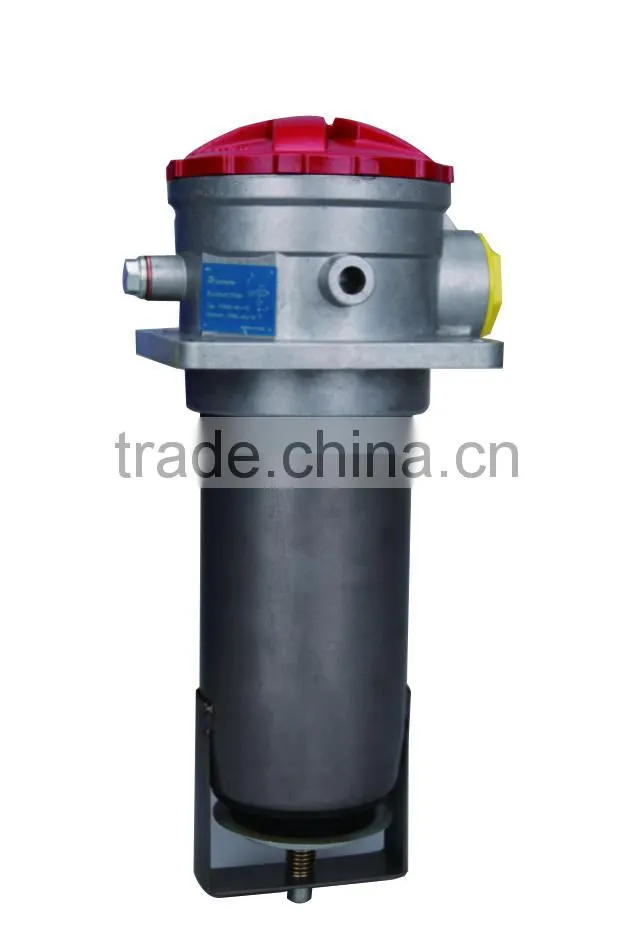

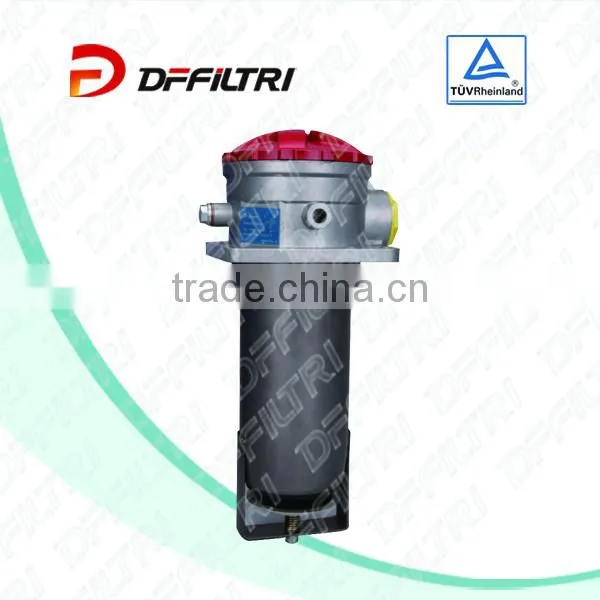

DFFILTER TFB FILTER SERIES STRAINER China Factory
PRODUCT INTROODUCTION:
1.TFB series filters can be used for high accuracy suction filtration in the hydraulic system, and filtering metal particles or rubber impurities etc. pollutants before suction have good protection for the piston pumps.
PRODUCT CHAEACTERISTICS:
2.Filter basic construction
The top cover and the lower housing of the TFB series filters adopt threaded connection,filter bowl is spun on the housing.
(1)This filter is equipped with dirt accumulated baffle;
make sure that the pollutants deposited on the filter element are removed together
with the replaced element and cannot return to the tank again.
(2)TFB02 series with check valve can be installed on the top, at the side or at the bottom of the tank directly,
when the cover is opened for maintenance, the check valve closes automatically,
so that it is possible to keep the normal operation even submerged below the oil level in a full tank.
2.1 Housing material
Filter cover material: Cast aluminum (High strength plastic end cap can be chosen)
Filter bowl material: Quality carbon constructional steel
2.2 Seals
Perbunan (= NBR) ; Viton (= FPM) (Customizable)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
ZKF-II Clogging indicator; ZS-V Clogging indicator
2.5 Type of connection
Inch threaded connection

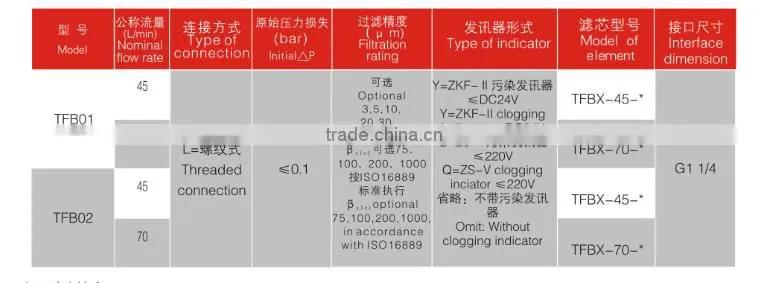

TYPE SELECTION AND TECHNICAL DATA:
MOUNTING SIZE:

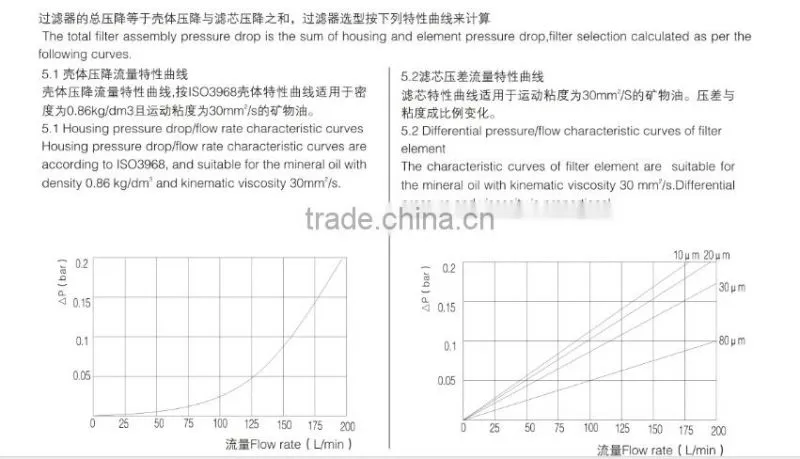

PRODUCT CHARACTERISTIC CURVES:
ABOUT US:
DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments, pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.
DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly.
Testing center also has the developed equiment for filter performance testing, which can make the comprehensive examination for filter element/cartridge performance. These can insure that company's filter with high capacity, long life, high reliable in full compliance with our customer's requirement.
The testing centre can take 7 tests of hydraulic filter performance evaluation, they are as follows:
ISO 2941 Verification of collapse/burst resistance
ISO 2942 Verification of fabrication integrity and determination of the first bubble point
ISO 2943 Verification of material compatibility with fluids
ISO 3723 Method for end load testing
ISO 3724 Verification of flow fatigue characteristics
ISO 3968 Evaluation of pressure drop versus flow characteristics
ISO 16889 Multi-Pass method for evaluating filtration performance
