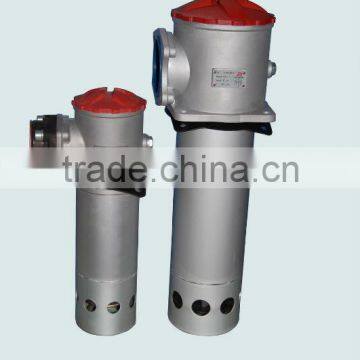

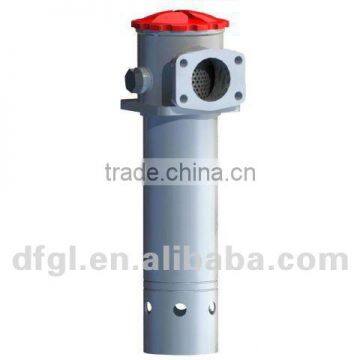

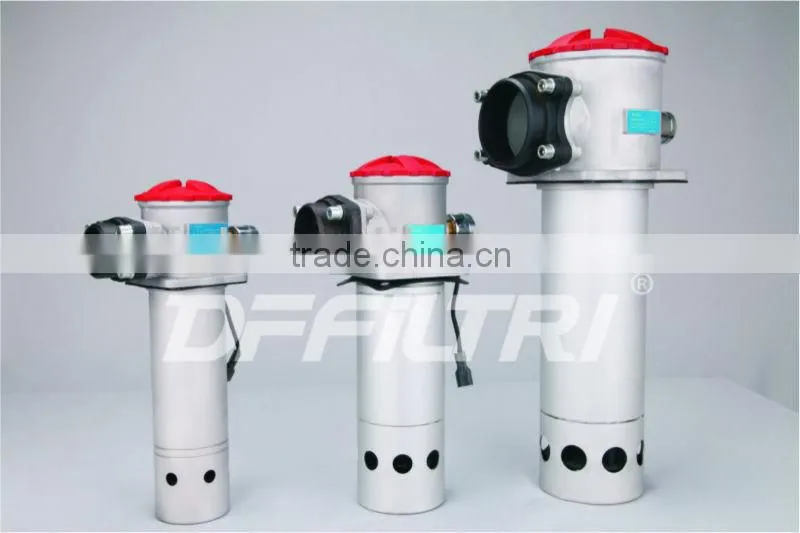

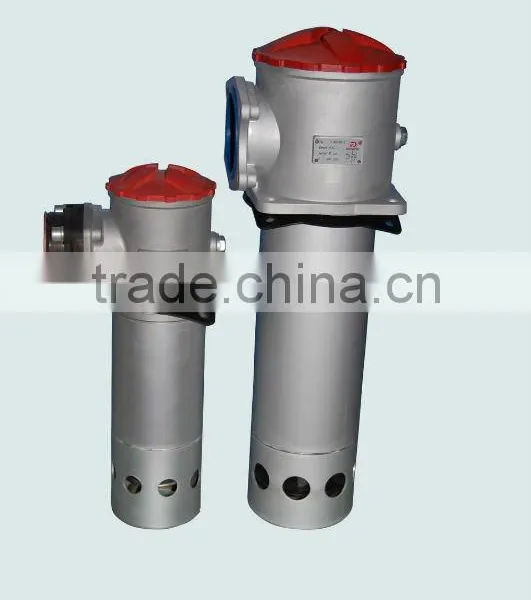

TANK MOUNTED SUCTION FILTER SERIES
(TF SERIES)
1.PRODUCT INTRODUCTION:
The TF series filters can be installed at the pump suction port ,on the top,at the side or in the bottom of the tank, filter bowl is immersed below the level of the tank, the filter head is outside the tank. This filter has these features: novel design,convenient installation, high oil-passing capacity, and small resistance, filter element cleaning and replacement is convenient.
2.PRODUCT CHARACTERISTICS:
Filter basic construction
The cover and the lower housing of the TF series filters adopt threaded connection; filter bowl is spun on the lower housing. This filter is with check valve, by-pass valve and clogging indicator, when filter element is withdrawn for washing or replaced; the check valve will close automatically to stop oil flowing out from the tank.
2.1 Housing material
Filter cover material: High strength plastic end cap
Filter bowl material: High strength composite membrane aluminum tube
2.2 Seals
Perbunan (= NBR); Viton (= FPM)(Customizable)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
ZKF-II Clogging indicator
ZS-V Clogging indicator
2.5 Type of connection (choose according to filter type)
Metric thread connection (if inch threaded connection is needed, please contact us) --- Flanged connection

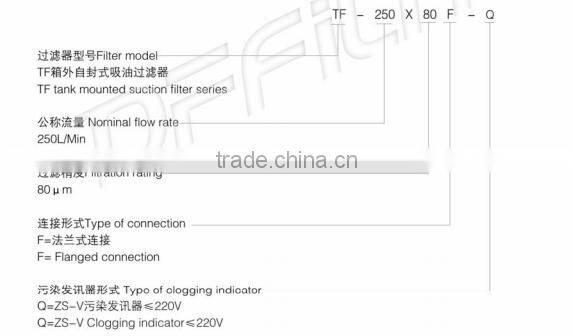

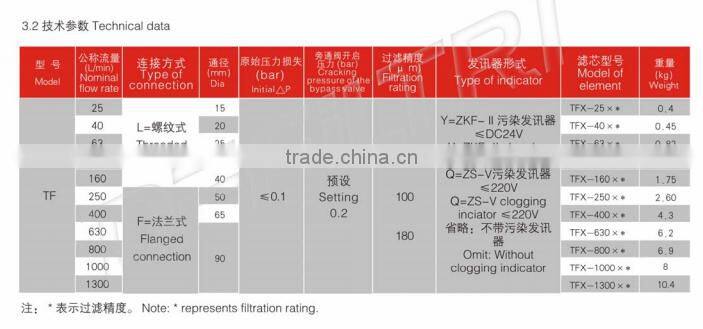

3.TYPE SELECTION TECHNICAL DATA:

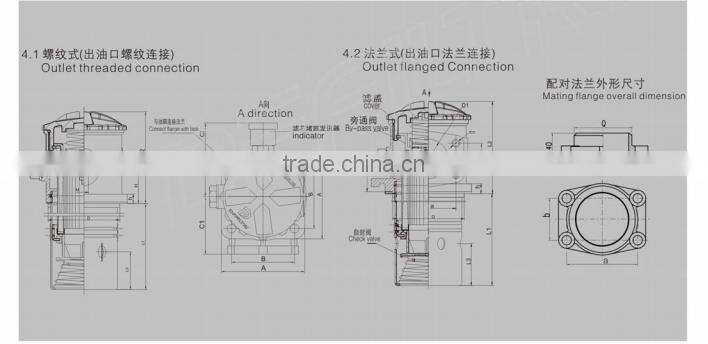

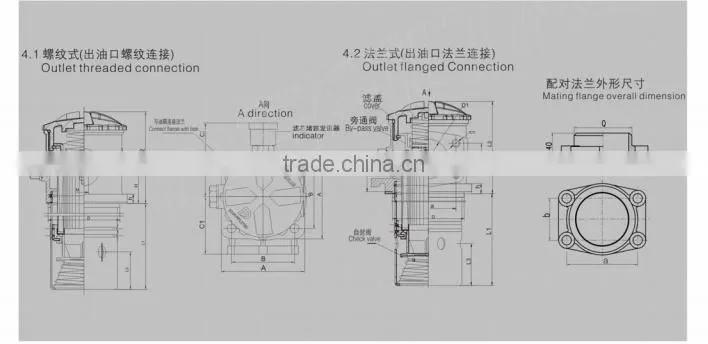

4.MOUNTING SIZE:
5.PRODUCT CHARACTERISTIC CURVES:
The total filter assembly pressure drop is the sum of housing and element pressure drop,filter selection calculated as per the following curves.
5.1 Housing pressure drop / flow rate characteristic curves
Housing pressure drop /flow rate characteristic curves are according to ISO3968, and suitable for the mineral oil with density 0.86 kg/dm³and kinematic viscosity 30mm²/s .
5.2 Differential pressure / flow characteristic curves of filter element
The characteristic curves of filter element are suitable for the mineral oil with kinematic viscosity 30 mm²/s . Differential pressure and viscosity is proportional.
6.ABOUT US:

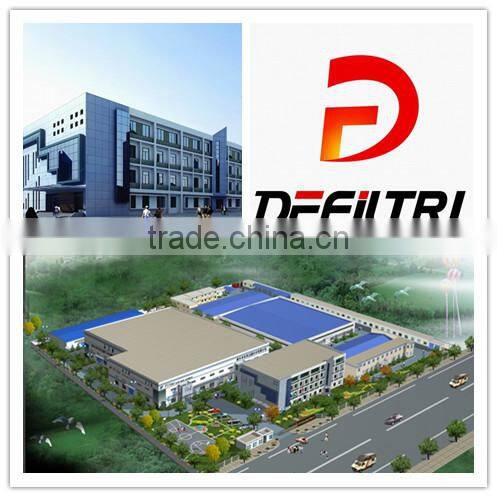

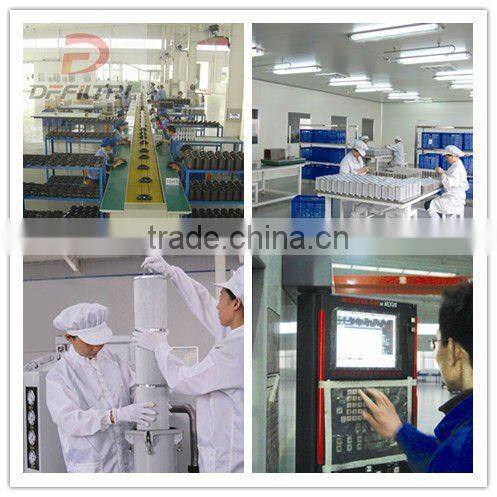

DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments, pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.

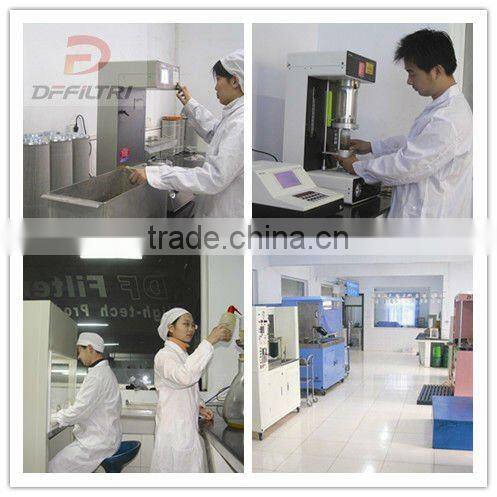

DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly.
Testing center also has the developed equiment for filter performance testing, which can make the comprehensive examination for filter element/cartridge performance. These can insure that company's filter with high capacity, long life, high reliable in full compliance with our customer's requirement.
The testing centre can take 7 tests of hydraulic filter performance evaluation, they are as follows:
ISO 2941 Verification of collapse/burst resistance
ISO 2942 Verification of fabrication integrity and determination of the first bubble point
ISO 2943 Verification of material compatibility with fluids
ISO 3723 Method for end load testing
ISO 3724 Verification of flow fatigue characteristics
ISO 3968 Evaluation of pressure drop versus flow characteristics
ISO 16889 Multi-Pass method for evaluating filtration performance
