RFA hydraulic tank filter,return filter
- 500 Piece / Pieces per Month
- Qingdao Tianjin Shanghai Ningbo Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- Internal gear 40cr 41A0076 for Liugong loader parts ,axle parts
- Liugong Wheel loader parts Liugong spare parts SP104817 Gland
- Liugong Spare parts Castle nut 03B0050 Standard parts for Liugong Wheel loader parts
- Conical roller bearing 23B0019 Standard parts for Liugong Wheel loader parts
- Liugong spare parts flasher relay 31B0005 fpr Liugong Wheel loader parts
- Air tank assembly ,pressure controller 13C0015 for Liugong Wheel loader parts
Product Details
Place of Origin: | Henan, China | Brand Name: | DFFILTRI | Model Number: | RFA |
Product Description
RFA hydraulic tank filter,return filter
P.S These are just part of our clients, in no particular order.
This kind of filter can be used in hydraulic system for oil return fine filtration, and can keep the oil back to tank clean.
This filter can be installed on the cover of the tank and the filter bowl is immersed in the oil tank,
the direct return oil is adopted, it is more convenient to replace the filter element.
Filter basic construction
This return filter consists of filter cover and filter bowl,equipped with bypass valve,diffuser,clogging indicator etc device.
2.1 Housing material
High strength casting aluminum alloy; high strength aluminum tube
2.2 Seals
Perbunan (= NBR)
2.3 Filter element
High strength carbon steel skeleton
Filter medium material
W | Metal woven mesh |
V | Metal fiber sintered mesh |
P | Cotton wood pulp |
BN | Micro-glass fiber |
BH | Chemical fiber |
W/HC | Metal woven mesh |
BN/HC | Micro-glass fiber composite filter material |
BH/HC | Chemical fiber composite filter material |
2.4 Optional accessories
CYB-ⅠClogging indicator≤DC24V
CY-ⅡClogging indicator≤220V
2.5 Type of connection (choose according to filter models)
Metric threaded connection; Flanged connection

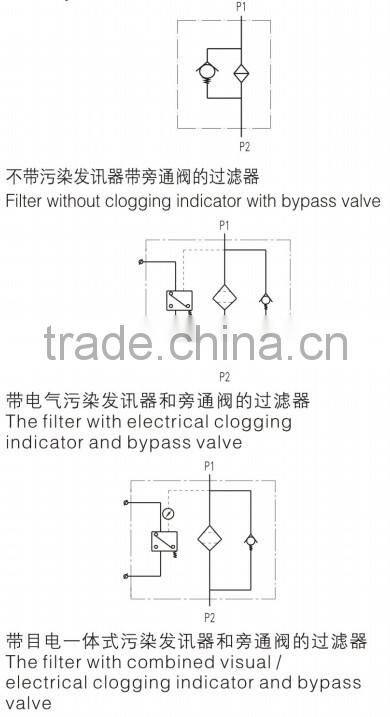

2.6 Symbols
3.1 Order example
3.2 Technical Data
Model | Nomal Flow Rate (L/min) | Type of Connection | Dia (mm) | Nominal Pressure (bar) | Cracking Pressure of the Bypass Valve (bar) |
Filtration Rating ( μm ) | Type of Indicator | Model of Filter Element | Weight (kg) | |
RFB | 25 | F=Flanged Connection | 15 | 16bar |
Setting 4 bar | Optional 3,5,10,20,30...
βx(c) optional 75,100,200,1000, in accordance with ISO 16889
| H=CYB-I Clogging Indicator ≤ DC24V
G=CY-II Clogging Indicator ≤ 220V
Omit:Without Indicator | FAX-25x* | 0.85 | |
40 | 20 | FAX-40x* | 0.9 | |||||||
63 | 25 | FAX-63x* | 1.5 | |||||||
100 | 32 | FAX-100x* | 1.7 | |||||||
160 | 40 | FAX-160x* | 2.7 | |||||||
250 | F=Flanged Connection | 50 | FAX-250x* | 4.35 | ||||||
400 | 65 | FAX-400x* | 6.15 | |||||||
630 | 90 | FAX-630x* | 8.2 | |||||||
800 | 90 | FAX-800x* | 8.9 | |||||||
1000 | 90 | FAX-1000x* | 9.96 |
Note: * represents filtration rating.

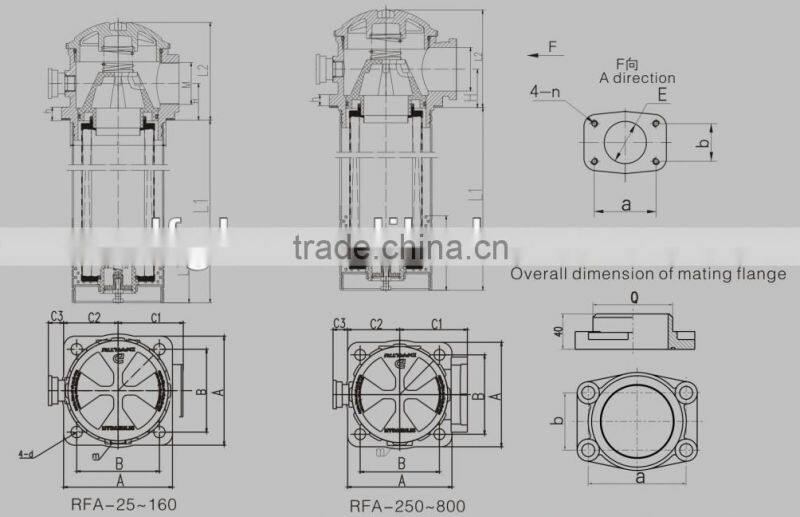

4.1 Inlet threaded Conntction; 4.2 Inlet flanged Connection
• Table 1:RFA-25~160 threaded connection dimension
•Table 2:RFA-250~800 flanged connection dimension
Note: 1)The inlet flange plate, connecting screw and seals etc. accessories, which can be provided by us, the user only needs to prepare φQ tube for the welding.
2) 2-m is the screw hole with M18×1.5 ,which can be used for installing the indicator in each side or as the small oil returning hole and equipped with plug.
♦DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce
many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments,
pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully
achieved the position both in China and across the world.
♦DFFILTER filtration technology testing center covers a total area of 450 square meters, of which,
clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration
technology inspection and testing for in-house science research, production and industry service.
♦On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company
in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889
new standard and other international standards perfectly.
♦Testing center also has the developed equiment for filter performance testing, which can make the
comprehensive examination for filter element/cartridge performance. These can insure that company’s filter
with high capacity, long life, high reliable in full compliance with our customer's requirement.
♦The testing centre can take 7 tests of hydraulic filter performance evaluation, they are as follows:
ISO 2941 Verification of collapse/burst resistance
ISO 2942 Verification of fabrication integrity and determination of the first bubble point
ISO 2943 Verification of material compatibility with fluids
ISO 3723 Method for end load testing
ISO 3724 Verification of flow fatigue characteristics
ISO 3968 Evaluation of pressure drop versus flow characteristics
