XNL Tank Mounted Return Oil Line Hydraulic Filter for XCMG Excavator

Specifications

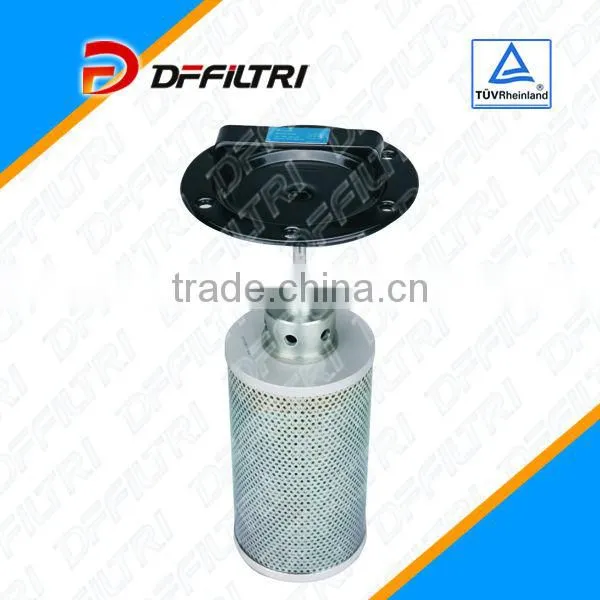

XNL Tank Mounted Return Line Filter
1. Easy install
2. 100% tested, Long Service Life
3. 7-30 working days prompt delivery

                             XNL Tank Mounted Return Oil Line Hydraulic Filter for XCMG Excavator

1. Product introduction

The XNL series filters can be installed at the mouth of returning oil in the hydraulic system, filtering the metal particles and the rubber impurities caused by the wear in the hydraulic system,

 so as to keep the oil clean.



2. Product characteristics

Filter basic construction

XNL series filter can be installed directly inside the tank. It is composed of flange plate, connecting rod and oil filter element, which is equipped with permanent magnet, check valve, by-pass valve etc.



2.1 Housing material

Flange plate: Carbon structural steel plate



2.2 Seals

Perbunan (= NBR)



2.3 Filter element

Filter medium material

High strength carbon steel skeleton



2.4 Optional accessories

CYB- | Clogging indicator≤DC24V;  CYB- || Clogging indicator≤220V



2.5  Type of connection

Flanged connection

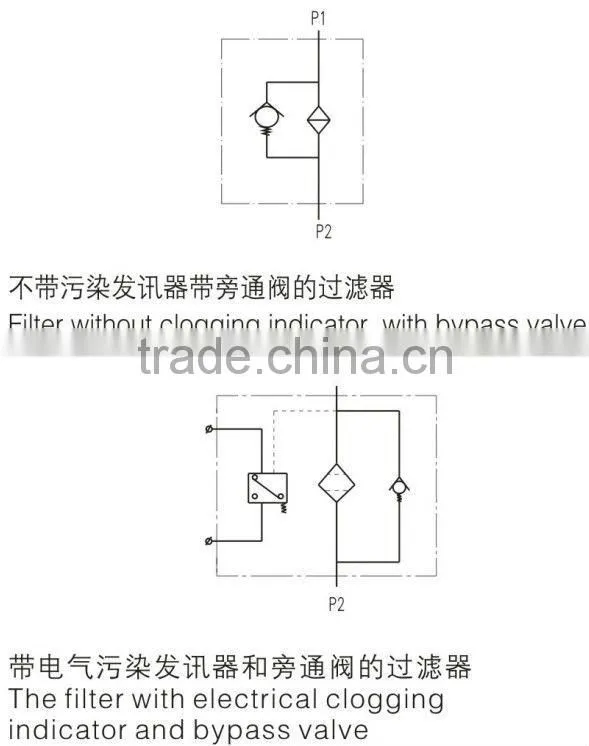

2.6 Symbols

3. Type selection and technical data

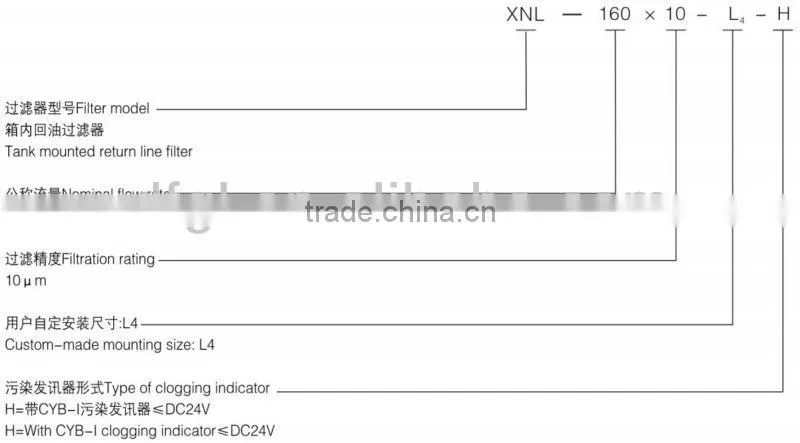

3.1 Order example



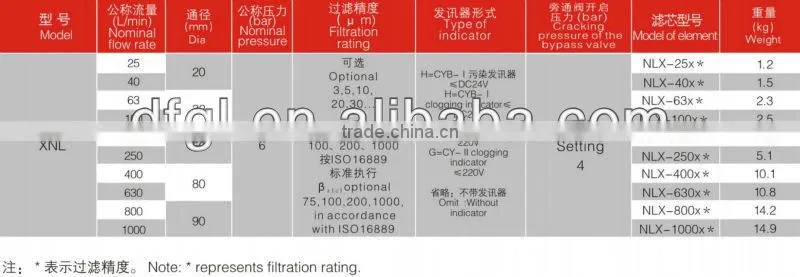

3.2 Technical Data

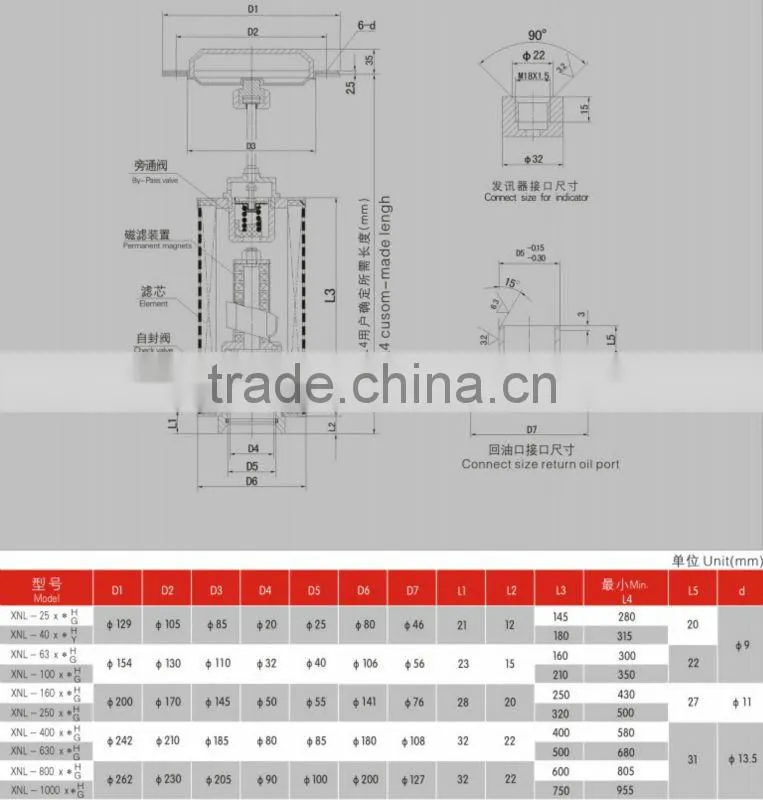

4. Mounting Size



Note: * represents filtration rating.



5.  Product characteristic curves

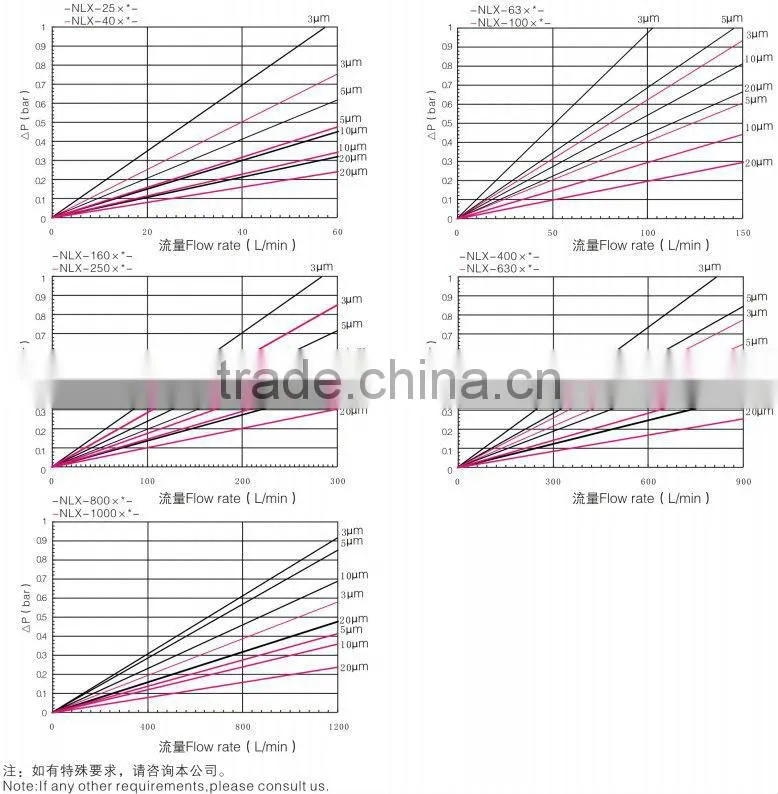

Differential pressure / flow characteristic curves of filter element

The characteristic curves of filter element are suitable for the mineral oil with kinematic viscosity 30 mm²/s. Differential pressure and viscosity is proportional.
