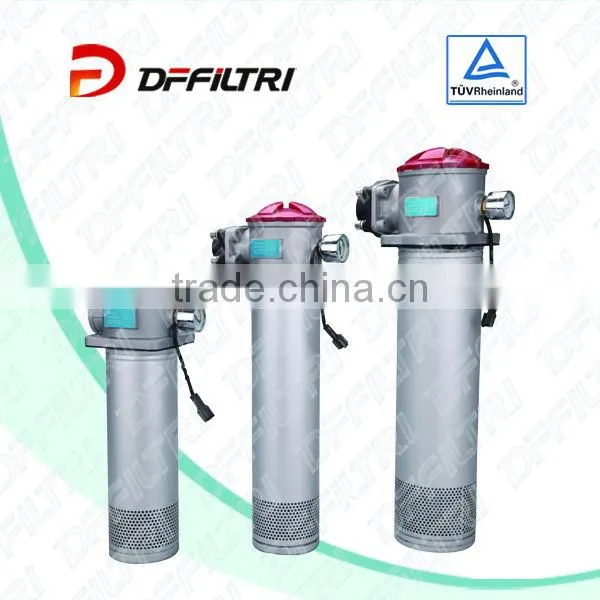

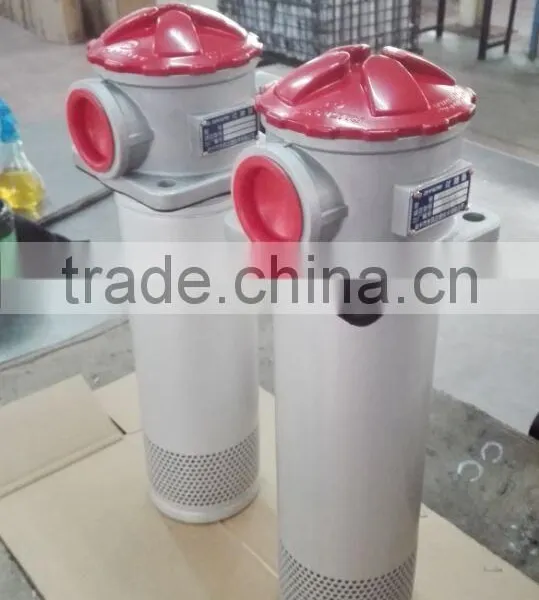

DFFILTRI produce glass fiber mini-type RFA series industrial return oil filter

DFFILTRI produce glass fiber mini-type RFA series  industrial return oil filter

Product  Introduction

This kind of filter can be used in hydraulic system for oil return fine filtration, and can

keep the oil back to tank clean. This filter can be installed on the cover of the tank and

the filter bowl is immersed in the oil tank, the direct return oil is adopted, it is more

convenient to replace the filter element.

Product  characteristics

Filter basic construction

This return filter consists of filter cover and filter bowl,equipped with bypass valve,diffuser

,clogging indicator etc device.

2.1 Housing material

High strength casting aluminum alloy; high strength aluminum tube

2.2 Seals

Perbunan (= NBR)

2.3 Filter element

Filter medium material

High strength carbon steel skeleton

2.4 Optional accessories

CYB-ⅠClogging indicator≤DC24V

CY-ⅡClogging indicator≤220V

2.5 Type of connection (choose according to filter models)

Metric threaded connection; Flanged connection

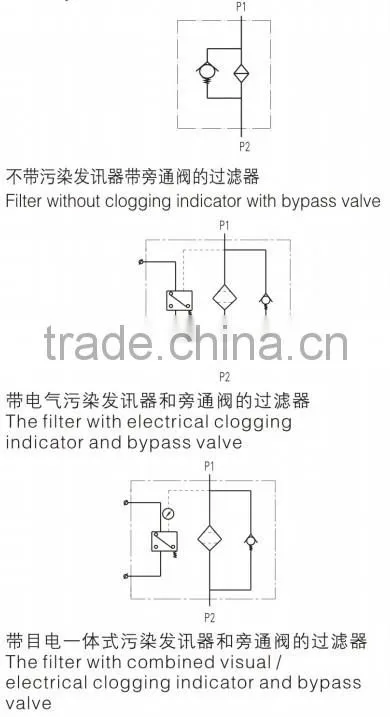

2.6 Symbols

Type selection and technical data

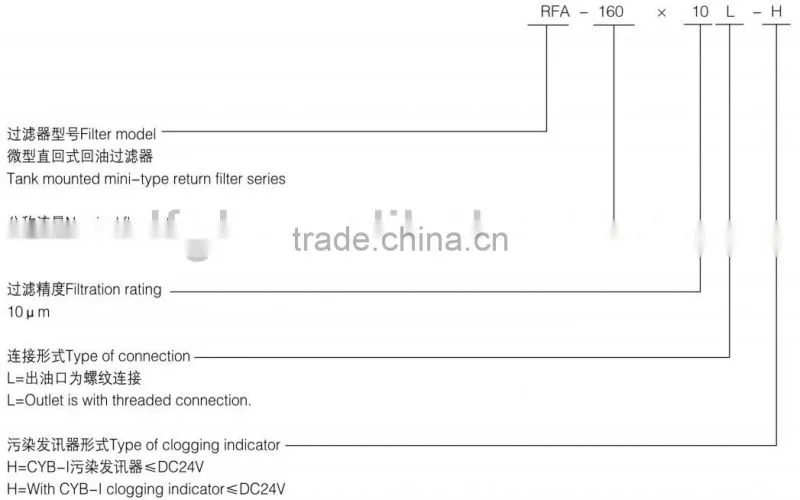

3.1 Order example

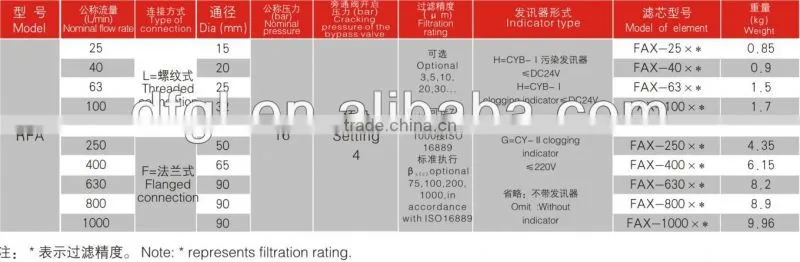

3.2 Technical Data
