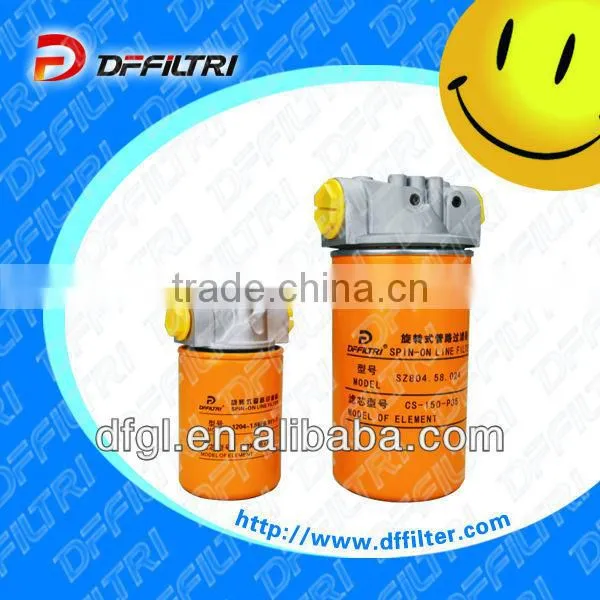

CHINA manufacturer DFFILTRI world market glass fiber SP-10 series return line filter

CHINA manufacturer DFFILTRI world market glass fiber  SP-10 series return line filter

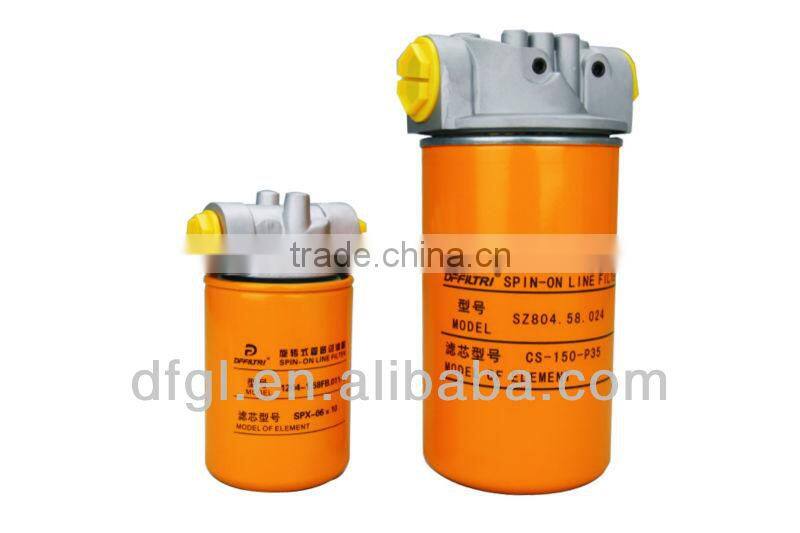

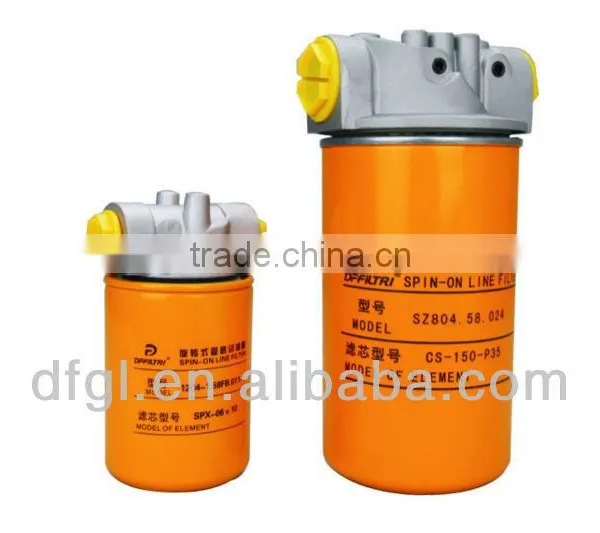

SP series filter can be installed on suction or return line of the hydraulic system,

at the same time it is quick and easy to replace filter element and maintenance is

convenient.

Filter basic construction

This series filter is composed of filter head and filter element, the structure is simple.

2.1 Housing material

Filter head material:      Aluminum alloy

Filter bowl material:      Steel plate

Bypass valve material: Reinforced nylon (GFPA)

2.2 Seals

Perbunan (= NBR) ; Viton (= FPM) (Customizable)

2.3 Filter element

Filter medium material

High strength carbon steel skeleton

2.4 Optional accessories

H=CYB -ⅠClogging indicator ≤ DC24V;  G=CY-ⅡClogging indicator ≤ 220V

Y=ZKF-II Clogging indicator                     ;  Q=ZS-V Clogging indicator

2.5 Type of connection (choose according to filter model

Inch threaded connection(metric threaded connection is needed, please contact us)

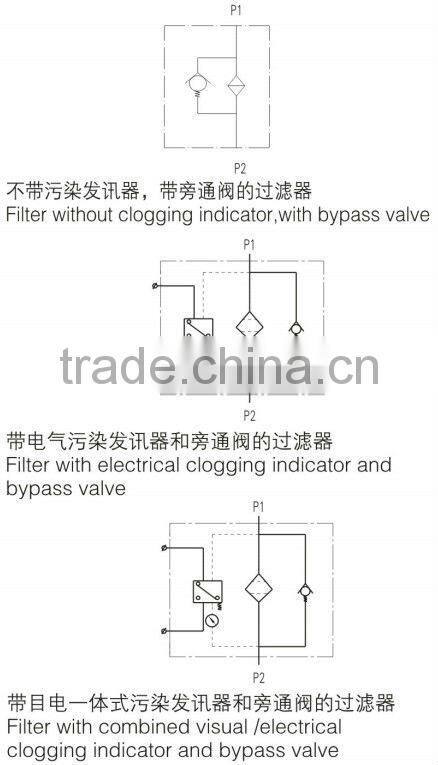

2.6 Symbols

Type Selectoin And Technical Data

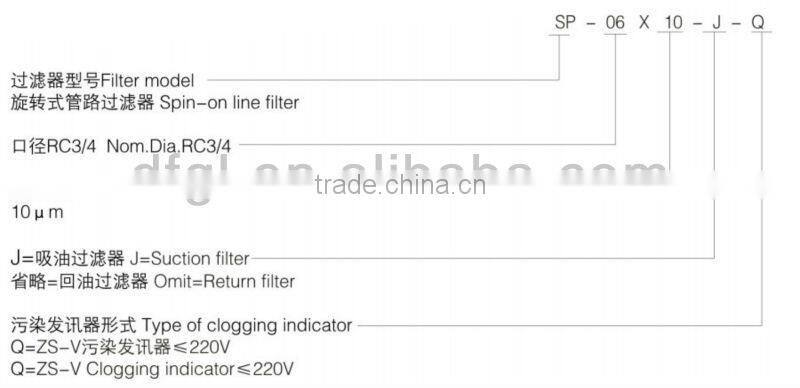

3.1 Order example

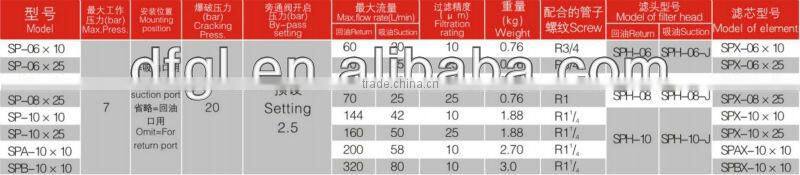

3.2 Technical Data

♦ China's Quality Recognized Top Ten Well-known Filter Brand

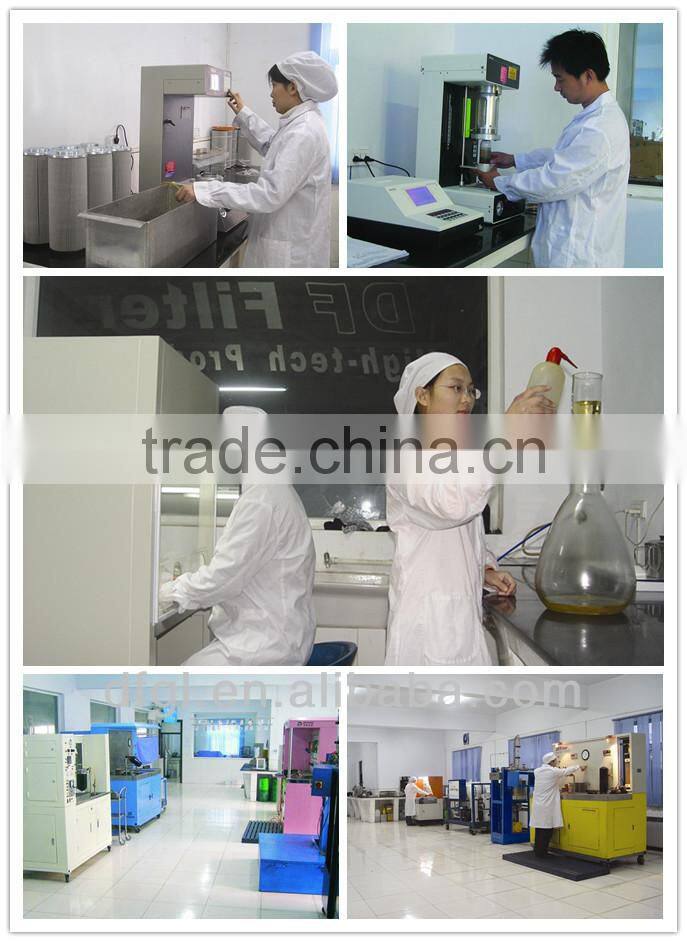

 TEST CENTERS:

WORKSHOP SHOWS:

we own world advanced production equipment and produce high-quality products of

international standard with brand-new industrial conceptand strong technical forces.

We firmly believe we will become your trusted partner.
