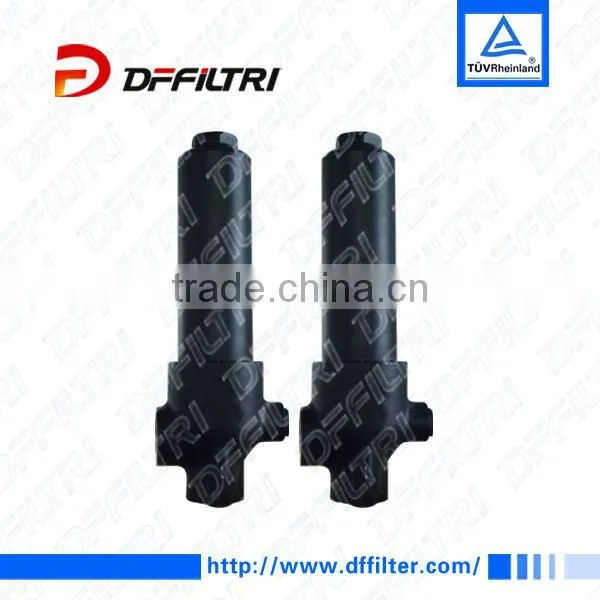

Factory New Design DFM Hydraulic Pressure Oil Line Filter
1. Product Introduction
This filter is applied to high pressure line section of hydraulic system, which have high pressure resistance,
high accuracy, multifunction etc. characteristics, through mounting the different components to meet
various installation requirements from the customers.
2. Product Characteristics
Filter basic construction
This filter consists of the cover and the spin-on housing.
2.1 Housing material
Top cover material: Cast Carbon Steel
Filter bowl material: Carbon steel
2.2 Seals
Perbunan (=NBR) (-30~+120°C); Viton=FPM(-20~+200°C)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
Without clogging indicator, with steel plug
Visual clogging indicator: CM-03
Combined visual/electrical clogging indicator: CM-05
Electrical clogging indicator: CM-08
Bypass valve (setting 3.5bar)
2.5 Type of connection (chosen according to the filter type)
Inch threaded connection
2.6Max working pressure
Max allowable working pressure 420bar
3. Type Selection and Technical Data

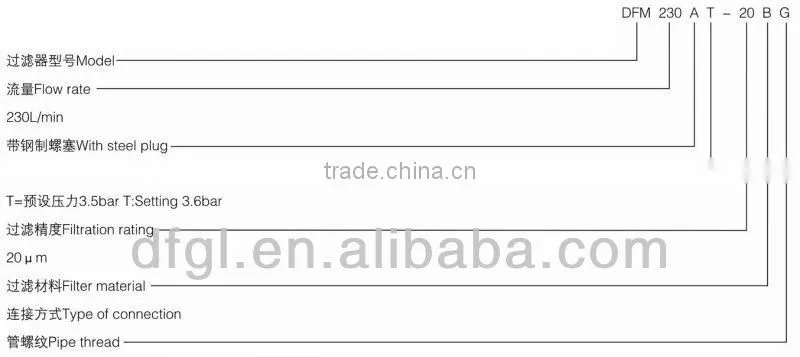

3.1 Order example
1. Established in 1994 , about 21years experience .
2. Four series leading Products:
(a)Hydraulic system Cleaning&Filtration Device
(b)Complete Hydraulic Filters
(c)Hydraulic System Accessories
(d)Pump Valve Components..
3. Specialized research and development team .
4.Ninety-three thousand square meter(old plant and new plant).
5. Many stock filters .
6.The Testing Center of Xinxiang Filtration&Separation Industry Association
1.Favourable Price
2.High Quality Reliable and Durable
3.Rapidly Delivery
4.Sufficient Capacity Supply
5.Customer's Designs and Logos are welcomed
6.Small Order are Acceptable
7.OEM Accepted
Our Strategic Partners
P.S These are just part of our clients, in no particular order.
ISO 2941 Verification of collapse/burst resistance
ISO 2942 Verification of fabrication integrity and determination of the first bubble point
ISO 2943 Verification of material compatibility with fluids
ISO 3723 Method for end load testing
ISO 3724 Verification of flow fatigue characteristics
ISO 3968 Evaluation of pressure drop versus flow characteristics
ISO 16889 Multi-Pass method for evaluating filtration performance
1. Pre-sale service :
Provide you quality products with good price
Answer all the questions about the products patiently .
2. Medium-sale service :
All filter element will be tested before shipping
Provide you newest goods transport conditions until you receive the products
3. After-sale service :
Technical advisory for any time
If the products have quality problem , and because of us , the new products can be provided
