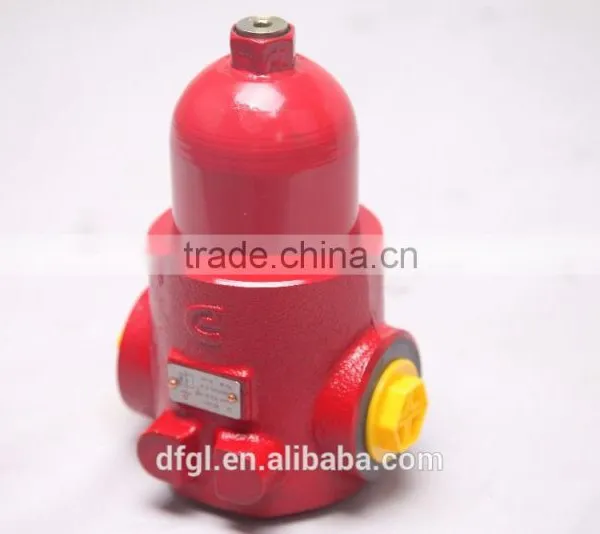

Hot product cabon steel glass fiber PLF-C110*10P-C pressure line filter
1.Product Introduction
PLF-series filter is of high pressure type, and used in the pressure line of hydraulic system.
It can remove all the contaminants from the hydraulic system. The element of this made
of glass fibre. It has high efficiency and filtration, large dirt capacity and low initial pressure
drop. Beta ratio is over200.It has two protection equipment which are by-pass vavle and
contamination indicator. The indicator will act when the pressure drop across element
attains adjustable pressure. The elemnt should be cleaned or changed in time.This series
oil filter is widely used in the hydraulic and lubrication system of heavy duty machine,
mining machine, metallurgical machine and so on.Features: Large area of filter effectively , low resistance, big capacity of dust storage ,
easily to install etc.
2.Product Characteristics
Filter basic construction
PLF series filter is composed of filter top cover and spin-on housing. Filter top cover is integral type,
according to the customer requirements, the flow direction and the mounting hole position can be custom-made.
2.1 Housing material
Top cover material: Ductile cast iron
Filter bowl material: Carbon steel
2.2 Seals
Perbunan (=NBR) (-30~+120°C); Viton=FPM(-20~+200°C)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
Electric clogging indicator: CS-V
By-pass valve (Setting 6bar)
2.5 Type of connection (chosen according to the filter type)
Metric thread connection; Inch threaded connection; Flanged connection
3.Type selectoin and technical data
3.1 Order example
3.2 Technical Data
Note: 1)The sealing material is NBR, if FPM is needed, please contact us;
2)* represents filtration rating.
3)If inch threaded connection is needed, please contact us;
♦DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments,pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.
♦DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
♦On-line particle counter of BETAB HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its
supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international
standards perfectly.
♦Testing center also has the developed equiment for filter performance testing, which can make the comprehensive examination
for filter element/cartridge performance. These can insure that company’s filter with high capacity, long life, high reliable in full
compliance with our customer's requirement.
Company Honor
♦ China's Quality Recognized Top Ten Well-known Filter Brand
♦Testing CenterThe Committee of Filtration & Separation of China Technology Market Association
♦ “The First Vice-chairman Unit” awarded by Xinxiang Filtration & Separation
WORKSHOP SHOW
Replacing foreign filters & filter elements:
HYDAC Company's Filters
MAHLE Company's Filters
DONALDSON Company's Filters
PARKER Company's Filters
ARGO Company's Filters
MP-FILTRI Company's Filters
FILTREC Company's Filters
STAUFF Company's Filters
VICKERS Company's Filters
EPPENSTEINER Company's Filters
TAISEI KOGYO Company's Filters
INTERNORMEN Company's Filters
we own world advanced production equipment and produce high-quality products of
international standard with brand-new industrial conceptand strong technical forces.
We firmly believe we will become your trusted partner.
Advantage:
- Manufacturer
- Competitive price can be offered
- Optimum paper folding
- Large dust holding capacity
- Good temperature resistance
- Good anti-humidity performance
- No distortion of pleats
- Environmental Friendly
- OEM & ODM Customized is accepted
- On-time delivery
- Durable and reliable
- Ecnomical,practical,and easy to install
CONTACT US
Xinxiang Dongfeng Filter Technology Co., Ltd.
Add: Xiwangcun Industrial Park,Muye District, Xinxiang, Henan, China (mainland)
ATTN: Leila Yang
Telephone: 86-373-2677957
Mobile Phone: +86-15136738621
Fax: 86-373-2634868
Website:
