OEM Manufacturer DFFILTRI produces carbon steel PLF-H60 high pressure hydraulic filter
1.Product Introduction
PLF-series filter is of high pressure type, and used in the pressure line of hydraulic system.
It can remove all the contaminants from the hydraulic system. The element of this made
of glass fibre. It has high efficiency and filtration, large dirt capacity and low initial pressure
drop. Beta ratio is over200.It has two protection equipment which are by-pass vavle and
contamination indicator. The indicator will act when the pressure drop across element
attains adjustable pressure. The elemnt should be cleaned or changed in time.This series
oil filter is widely used in the hydraulic and lubrication system of heavy duty machine,
mining machine, metallurgical machine and so on.Features: Large area of filter effectively , low resistance, big capacity of dust storage ,
easily to install etc.
2.Product Characteristics
Filter basic construction

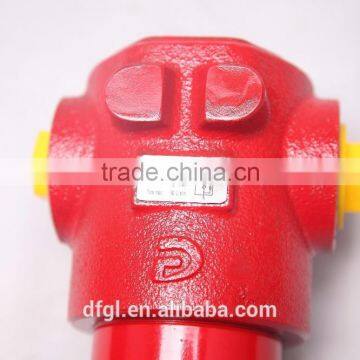

PLF series filter is composed of filter top cover and spin-on housing. Filter top cover is integral type,
according to the customer requirements, the flow direction and the mounting hole position can be custom-made.
2.1 Housing material
Top cover material: Ductile cast iron
Filter bowl material: Carbon steel
2.2 Seals
Perbunan (=NBR) (-30~+120°C); Viton=FPM(-20~+200°C)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
Electric clogging indicator: CS-V
By-pass valve (Setting 6bar)
2.5 Type of connection (chosen according to the filter type)
Metric thread connection; Inch threaded connection; Flanged connection
3.Type selectoin and technical data

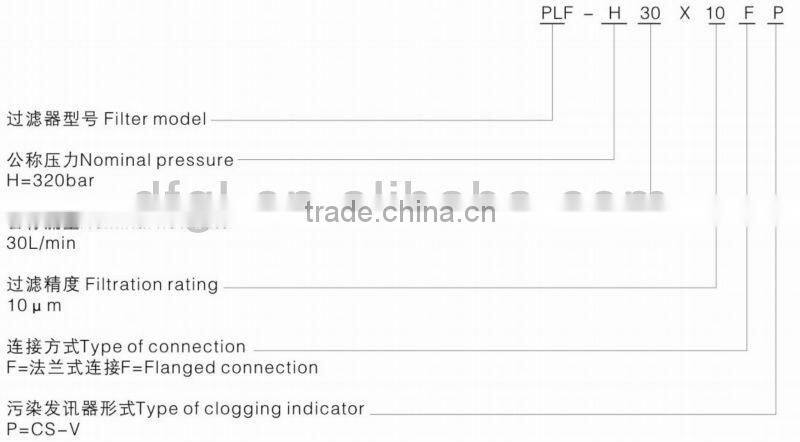

3.1 Order example
3.2 Technical Data
Note: 1)The sealing material is NBR, if FPM is needed, please contact us;
2)* represents filtration rating.
3)If inch threaded connection is needed, please contact us;
Company Honor
♦ China's Quality Recognized Top Ten Well-known Filter Brand
♦Testing CenterThe Committee of Filtration & Separation of China Technology Market Association
♦ “The First Vice-chairman Unit” awarded by Xinxiang Filtration & Separation
WORKSHOP SHOW
we own world advanced production equipment and produce high-quality products of
international standard with brand-new industrial conceptand strong technical forces.
We firmly believe we will become your trusted partner.
Advantage:
- Manufacturer
- Competitive price can be offered
- Optimum paper folding
- Large dust holding capacity
- Good temperature resistance
- Good anti-humidity performance
- No distortion of pleats
- Environmental Friendly
- OEM & ODM Customized is accepted
- On-time delivery
- Durable and reliable
- Ecnomical,practical,and easy to install
