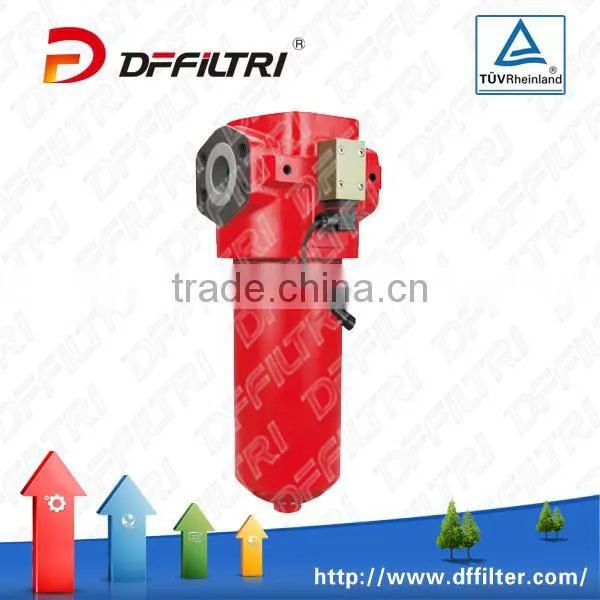

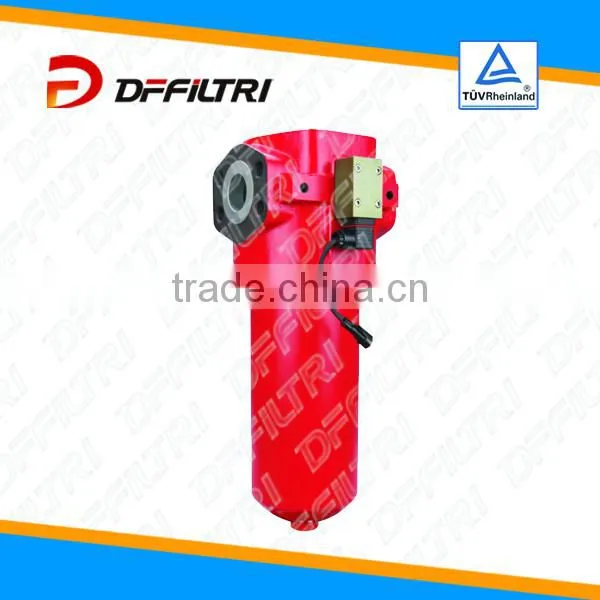

High Filtration Rating BRF Two-way Reversible High Pressure Filter
1. Product introduction
BRF series filters can be installed on flow-frequent-switching components, so as to solve the problem that the oil only can flow one way direction as well as filtering; so that system piping is simplified and the space is saved. The series filter adopts glass fiber filter material, with high filtration rating, big flow rate capacity, low original pressure loss, large contamination retention capacity etc. advantages; and equipped with pressure difference indicator, when the element is clogged to oil inlet/outlet and pressure difference reaches setting value of the indicator, the signal is sent out, the filter element should be cleaned or replaced.
2. Product characteristics
Filter basic construction
BRF series filter is composed of filter top cover and spin-on housing.
2.1 Housing material
Top cover material: Ductile cast iron
Filter bowl material: Carbon steel
2.2 Seals
Perbunan (= NBR) (-30~ +120°C); Viton (= FPM) (-20~ +200°C)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
Electric clogging indicator:CS-V
2.5 Type of connection (chosen as per filter models)
Flanged connection

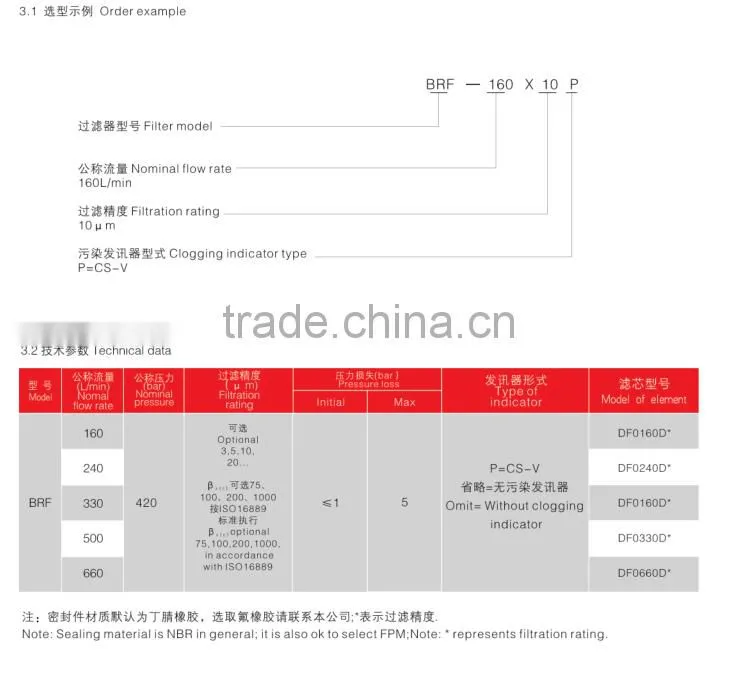

3. Type Selection And Technical Data

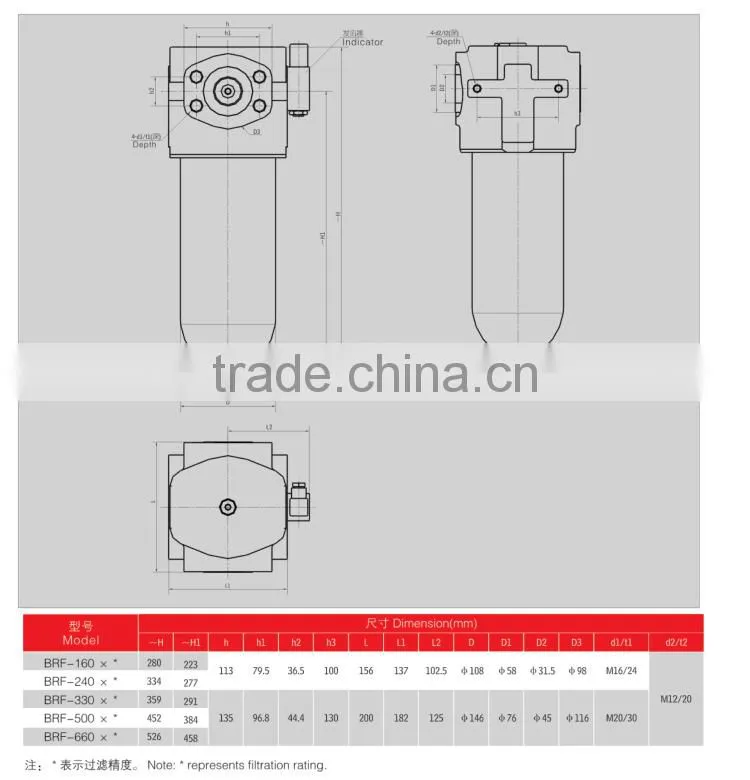

4. Mouting Size
5. About Us
♦DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
♦On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly
♦Testing center also has the developed equiment for filter performance testing, which can make the comprehensive examination for filter element/cartridge performance. These can insure that company’s filter with high capacity, long life, high reliable in full compliance with our customer's requirement.
Xinxiang Dongfeng Filter Technology Co., Ltd.
Add: No.42, West of Beigan Road, Xinxiang, Henan, China (mainland)
Telephone: 86-373-2677957
Mobile Phone: +86-18336074703
Fax: 86-373-2634868
