XDF-MA60Q10 Pilot Filter for Engineering Machinery and Tractor

Specifications

XDF-MA60Q10 Pilot Filter for Engineering Machinery
Novel design,convenient installation,high oil-passing capacity.

                                       XDF-MA60Q10 Pilot Filter for Engineering Machinery and Tractor

1. Product introduction

XDF-MA60Q10 filters are installed on the medium pressure line, which has high filtration accuracy, low initial pressure loss, high contamination retention capacity

and multi-purpose etc. characteristics, can meet the various requirements from the customers through assembling different accessories.



2. Product characteristics

Filter basic construction

XDF-MA60Q10 series filters consist of the cover and the spin-on housing .

1. Wide range of supply for filter, filter element and other combined filtration equipments
2. Compltely interchangeable with over 500 international brand originals
3. Very competitive price and fast delivery time

4. Imported filtration materials.

5. Making strictly in accordance with ISO, DIN, IDF and 3A standards, quality comply with GMP requirement



2.1 Housing material

Filter cover: High strength casting aluminum alloy
Filter bowl:  High-strength aluminum alloy



2.2 Seals

Perbunan (=NBR) (-30~+120°C);  Viton=FPM(-20~+200°C)

2.3 Filter element

Filter medium material

High strength carbon steel skeleton



2.4 Optional accessories

Bypass valve (setting 6 bar)



2.5 Type of connection (chosen according to the filter type)

Inch threaded connection

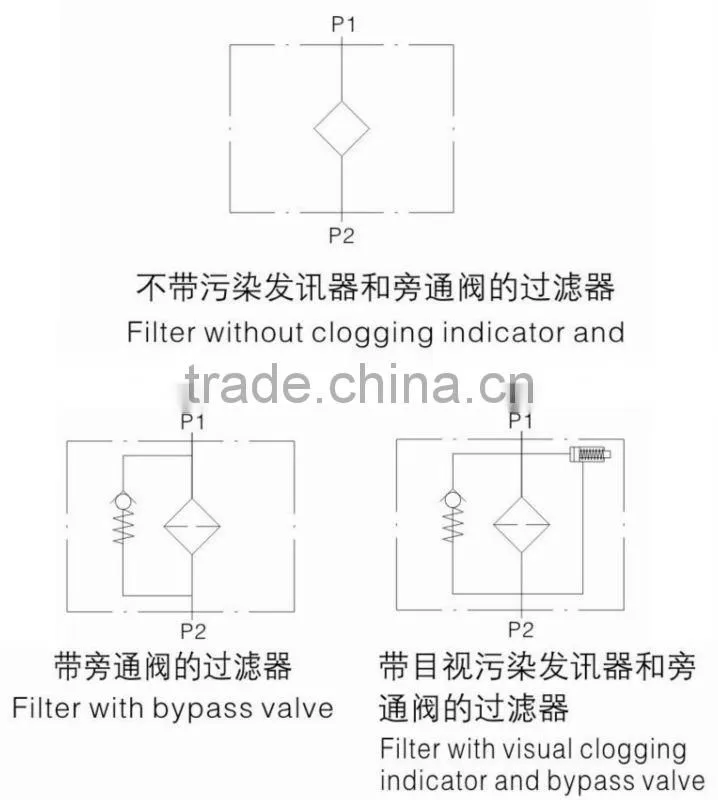

2.6 Symbols

3. Type selection and technical data

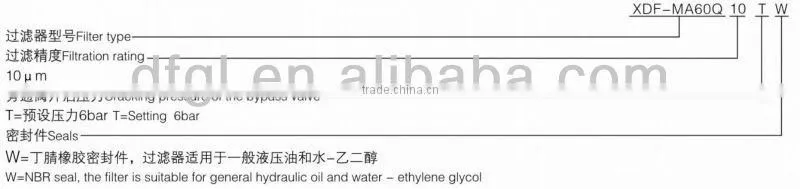

3.1 Order example

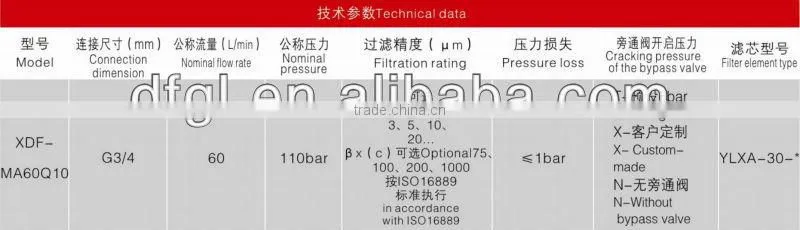

3.2 Technical Data



  Note: * represents filtration rating.



4. Mounting Size



5.  Product characteristic curves

The total filter assembly pressure drop is the sum of housing and element pressure drop,filter selection calculated as per the following curves.



5.1 Housing pressure drop / flow rate characteristic curves

Housing pressure drop /flow rate characteristic curves are according to ISO3968, and suitable for the mineral oil with density 0.86 kg/dm³ and kinematic viscosity 30 mm²/s.

                     Filter housing pressure drop

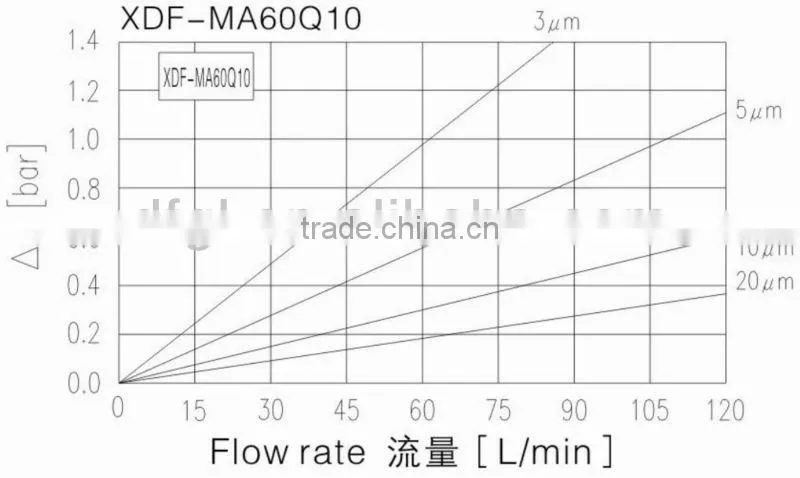

5.2 Differential pressure / flow characteristic curves of filter element

The characteristic curves of filter element are suitable for the mineral oil with kinematic viscosity 30 mm²/s. Differential pressure and viscosity is proportional.

                                                   Clean filter element pressure drop



  Note: If any other requriements, please consult us.
