Genuine Part Replacement HYDAC Replacement XDFM-60x10 Hydraulic Oil Line Medium Pressure Filter
1. Product introduction
XDFM series filters apply to the medium pressure line with bypass valve and clogging indicator; this filter can effectively filter the impurity in the hydraulic oil and assure the normal operation of hydraulic system.
2. Product characteristics
Filter basic construction
XDFM series filters consist of the cover and the spin-on housing.
2.1 Housing material
Filter cover: High strength casting aluminum alloy
Filter bowl: High-strength aluminum alloy
2.2 Seals
Perbunan (= NBR) (-30~+120°C)
Viton(=FPM) (-20~+200°C)
2.3 Filter element
Filter medium material(refer to P142)
High strength carbon steel skeleton
2.4 Optional accessories
Without clogging indicator,with steel plug
Visual clogging indicator:CM-03
Electrical clogging
indicator:CM-05
Combined visual /electrical clogging indicator:CM-08
Bypass valve(setting 6 bar)
2.5 Type of connection(chosen according to the filter type)
Metric thread connection
Inch thread connection

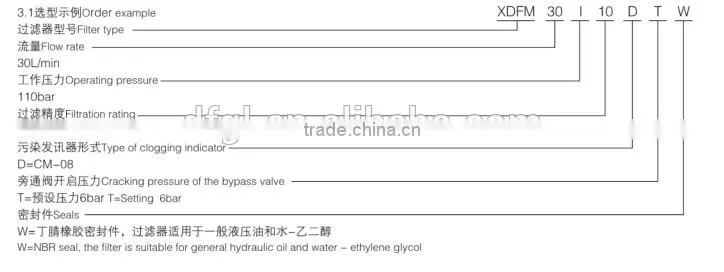

3. Order Example

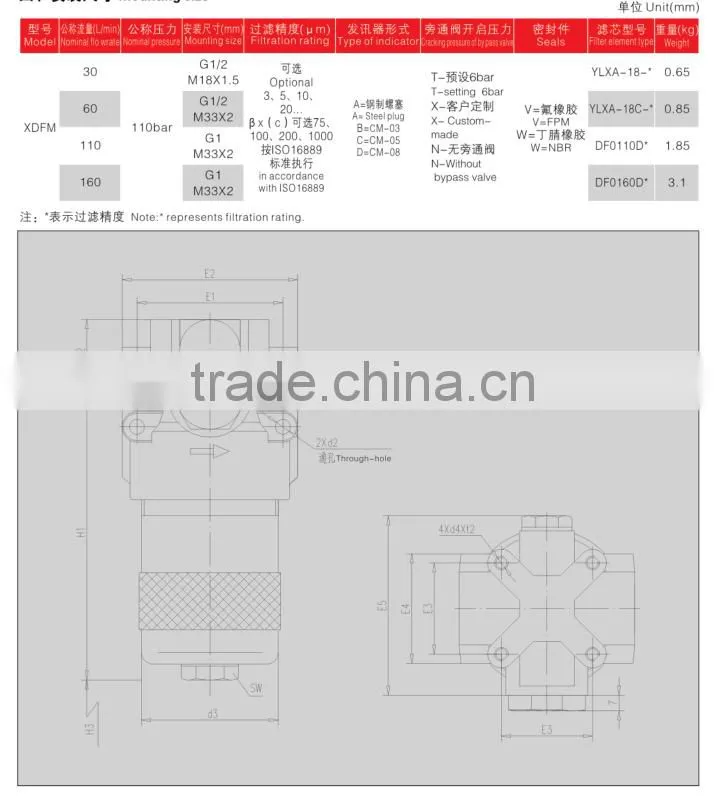

4. Mounting Size
5.About us
DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments, pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.
DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly
Testing center also has the developed equiment for filter performance testing, which can make the comprehensive examination for filter element/cartridge performance. These can insure that company's filter with high capacity, long life, high reliable in full compliance with our customer's requirement.
