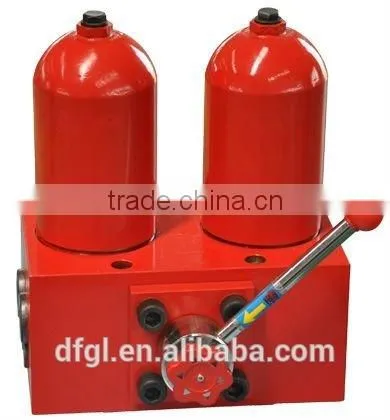

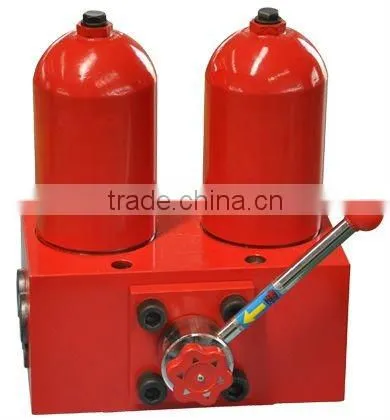

SGF duplex high pressure line filter,high equality hydraulic oil filter
1.Introduction
SGF series double cylinder filter is composed of reversing valve, pressure blance valve, bypass valve, indicator and two cylinders. Replacing filter element without stopping can come true.
It can be installed on the high-pressure line of control element or executive element to protect control element and executive element. Especially suitable for protection for high accuracy servo component and plunger piston component of automatic control system, can control pollution efficiently so that prolong service life of element. When working, one cartridge through oil, the other as spare part. When the differential pressure produced for blocking filter element of the working cartridge up to 0.5MPa, indicator would send a signal, at the moment the pressure-blance valve should be opened in time and turn the reversing valve, let the spare cartridge start to work (turnoff pressure-blance valve after the reversing valve are moved to designed position).Only to switch the screw-plug once more and release the blocked oil of cartridge, then screw off shell, then replace the filter element blocked.
If the reversing valve is not be switched and the spare cartridge can not start to operate in time, when the differential pressure is up to the opening pressure 0.6MPa, bypass valve would open automatically to avoid the pressure continue to rise, so that filter element rupture cause pollution. But if doing that, the oil without filtration enters into the system, which causes great harm to the system, so the bypass valve should be avoided opening automatically.
Company Honor
♦ China's Quality Recognized Top Ten Well-known Filter Brand
♦Testing CenterThe Committee of Filtration & Separation of China Technology Market Association
♦ “The First Vice-chairman Unit” awarded by Xinxiang Filtration & Separation
Workshop Show
Customers visit
TEST CENTER
Advantage:
- Manufacturer
- Competitive price can be offered
- Optimum paper folding
- Large dust holding capacity
- Good temperature resistance
- Good anti-humidity performance
- No distortion of pleats
- Environmental Friendly
- OEM & ODM Customized is accepted
- On-time delivery
- Durable and reliable
- Ecnomical,practical,and easy to install
we own world advanced production equipment and produce high-quality products of
international standard with brand-new industrial conceptand strong technical forces.
We firmly believe we will become your trusted partner.
