Specifications
RFLD Hydraulic Duplex Line Filter1. Easy install
2. 100% tested, Long Service Life
3. 7-30 working days prompt delivery
Easy and Simple to Handle RFLD Hydraulic Duplex Line Automobile Oil Filter
1. Product Introduction
The filter housing and the connectors are designed in accordance with the international standard, widely used in the lubricating oil system of circulating loop, test systems, vehicles, punching machine, ships and offshore platforms etc.
2. Product Characteristics
Filter basic construction
RFLD series filters are connected by a switch valve, drift diameter DN80 and above is equipped with pressure balance pipeline; below DN80, the balance valve is put in change-over valve body.
This structure reduces the pressure impact on the filter when switching valve, standard filter is with vent hole, relief hole, and mounting holes of clogging indicator.
2.1 Housing material
Optional: Ductile iron, cast steel
2.2 Seals
Perbunan (=NBR)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
Without clogging indicator, with steel plug
Visual clogging indicator: CM-03
Electrical clogging indicator: CM-05
Combined visual /electrical clogging indicator: CM-08
Bypass valve (setting 6 bar)
2.5 Type of connection
Inch threaded connection; Flanged connection

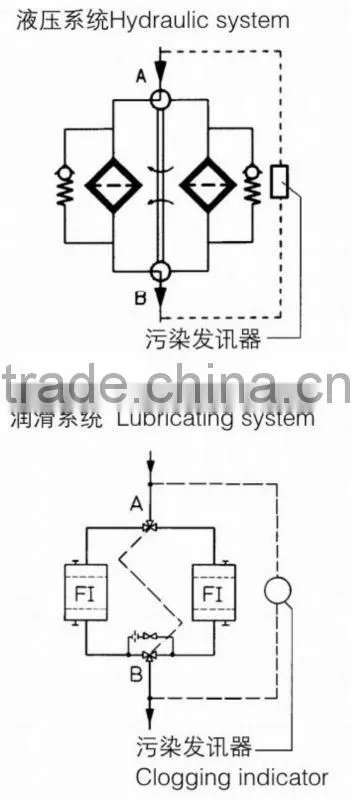

2.6 Symbols
3. Type Selection and Technical Data
3.1 Order example
3.2 Technical Data
| Model | Specification | Connection Dimension | Filtration Rating ( μm ) |
Cracking Pressure of the Bypass Valve (bar) |
Type of Indicator | Model of Filter Element | Weight (kg) |
| RFLD | 111 |
G1 SAE DN25 |
Optional 3,5,10,20,30...
βx(c) optional 75,100,200,1000, in accordance with ISO 16889
|
Setting 6 bar |
A=Steel Plug
B=CM-03
C=CM-05
D=CM-08 |
DF0110Rx* |
17 17 |
| 241 |
G1 1/2 SAE DN 40 |
DF0240Rx* |
27 27 |
||||
|
331 331/332 |
SAE DN 40 SAE DN 50 |
DF0330Rx* |
33 37 |
||||
|
501 501/502/503 |
SAE DN 40 SAE DN 50 |
DF0500Rx* |
35 39 |
||||
|
661 661 661 662 |
SAE DN 50 SAE DN 65 SAE/DIN DN80 DIN DN80 |
DF0660Rx* |
56 74 82 82 |
||||
|
851 851 851/853 852 |
SAE DN50 SAE DN65 SAE/DIN DN80 DIN DN80 |
DF0850Rx* |
62 80 88 88 |
||||
|
951 951 952 |
SAE/DIN DN80 SAE/DIN DN80 DIN DN100 |
DF0850Rx* |
105 120 120 |
||||
|
1301 1301/1303 1302 |
SAE/DIN DN80 SAE/DIN DN100 DIN DN100 |
DF1300Rx* |
110 125 125 |
Note: * represents filtration rating.
4. Mounting Size

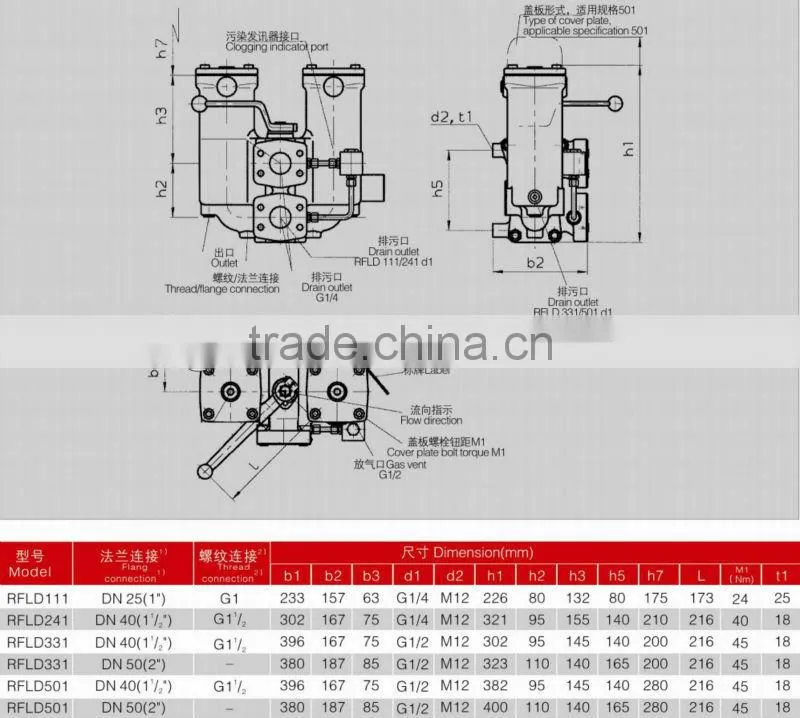

4.1 RFLD 111-501
Note: 1)Flange connection SAE J518C (Standard pressure 3000psi)
2)Thread connection in accordance with ISO 228.

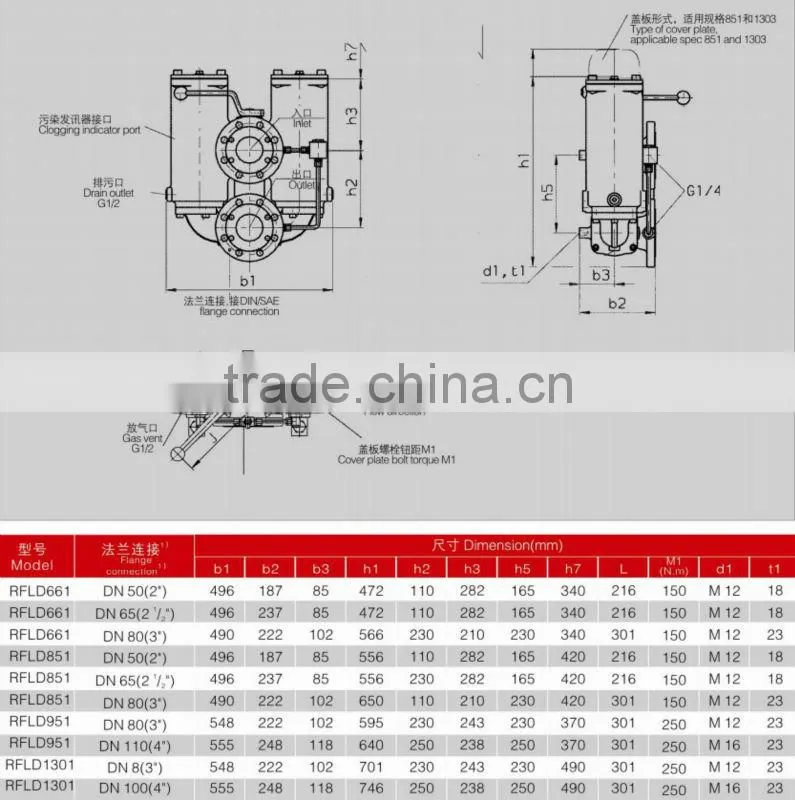

4.2 RFLD 661-1301
Note: Flange connection as per SAE J518C (Standard pressure 3000psi)
DIN flange connection as per DIN2501.PN25/40 (D or E seal)

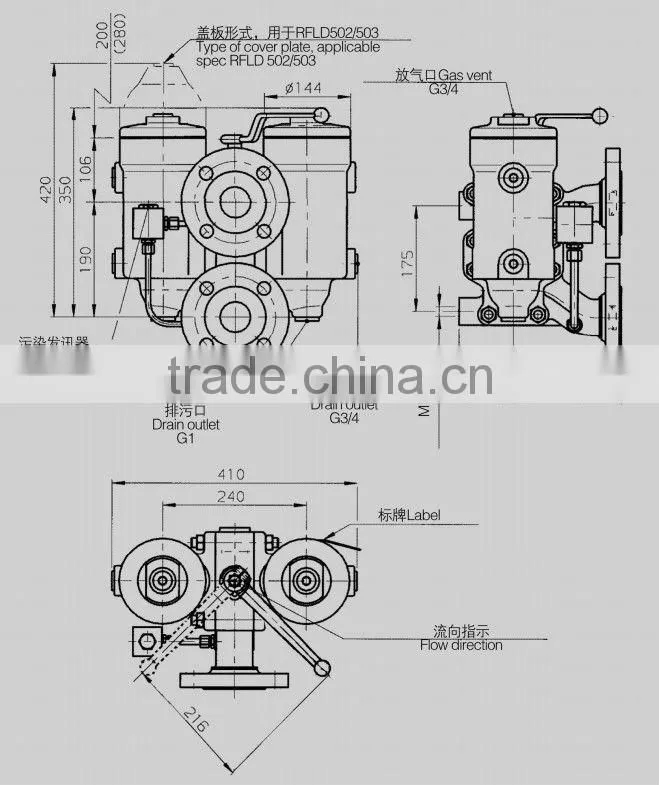

4.3 RFLD 332/502/503

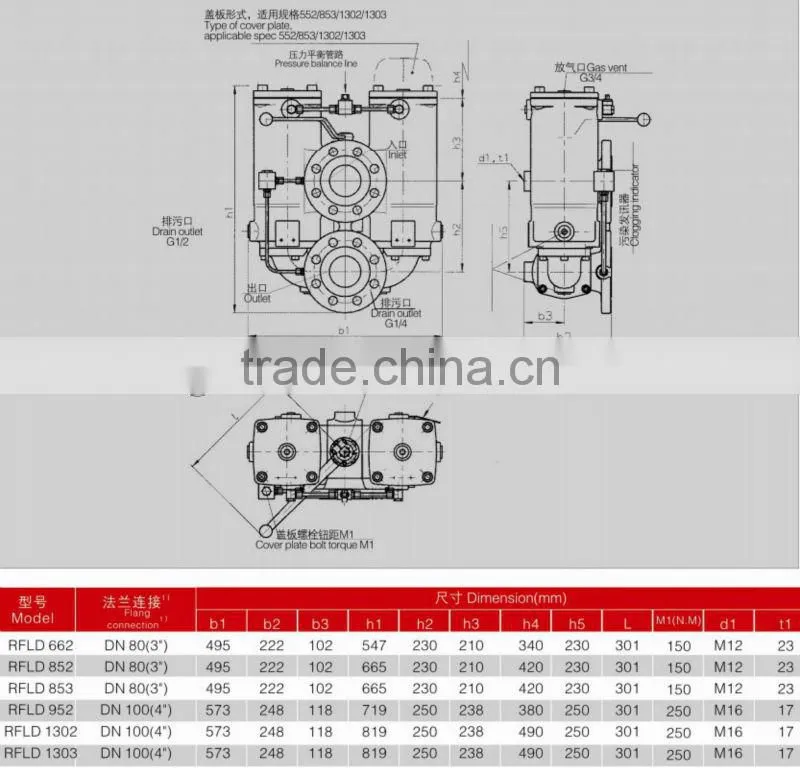

4.4 RFLD 662-1302,853,1322
Note: DIN flange connection as per DIN2501, PN25/40 (D or E seal)
