Hydraulic Duplex Filter SDRLF Double Large Flow Rate Return Filter Used In Hydraulic System

Hydraulic Duplex Filter SDRLF Double Large Flow Rate Return Filter Used In Hydraulic System thumbnail-1
Hydraulic Duplex Filter SDRLF Double Large Flow Rate Return Filter Used In Hydraulic System thumbnail-2
Hydraulic Duplex Filter SDRLF Double Large Flow Rate Return Filter Used In Hydraulic System photo-1
Hydraulic Duplex Filter SDRLF Double Large Flow Rate Return Filter Used In Hydraulic System photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
DFFILTRI
Model Number:
SDRLF-A1300810P, SDRLF
Contact Supplier Request Quote Chat Now
Xinxiang Dongfeng Filter Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Shanghai Ningbo Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name DFFILTRI
Model Number SDRLF-A1300810P, SDRLF
Product Description
Filtration rating
3, 5, 10, 20, 30...um
weight
610~990kg
Nominal flow rate
1300~9100L/min
Type of connection
chosen as per filter models
Nominal pressure
16bar
Certification
ISO 9001:2008
Pressure loss
Inital:1bar; Max: 3.5bar
Warranty
1 years
Dia
100, 150, 200, 250mm
Brand
DFFILTRI
Seals
Perbunan (= NBR)
MOQ
5 Piece
Model Number
SDRLF-A1300810P
Price
5-30 PCS USD 30.00
Housing material
Carbon steel
Port
Ningbo/Shanghai/qingdao/tianjin

Introduction：

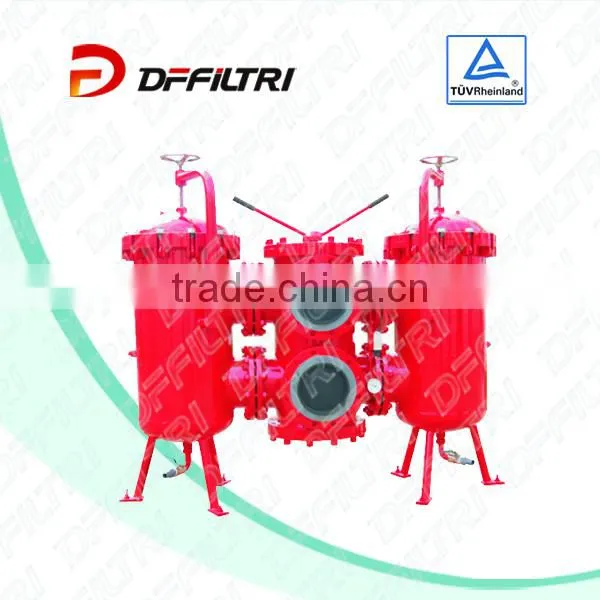

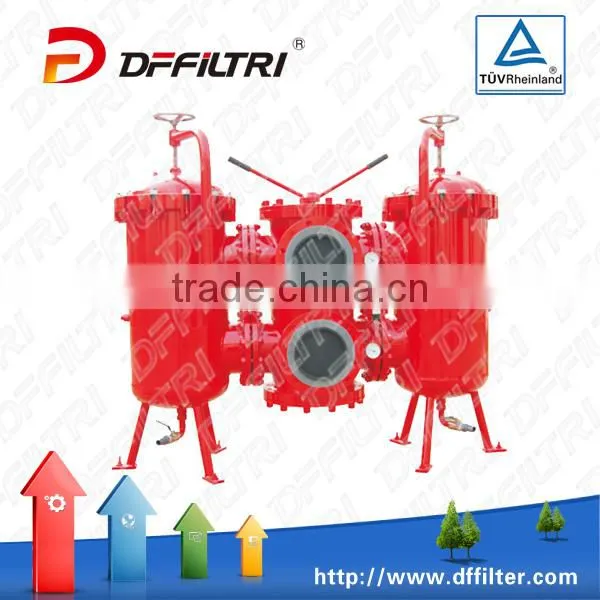

The SDRLF series filter os composed of two singal bowl filters and a 2-position 6-way directional valve.It is simple in construction and easy to use.There is a by-pass valve and a contamination indicator in it, for protecting the hydraulic system safety.
The feature of this filter allows continues operation even during element is changed for which is clogged by contaminants.After opening the balance valve and then turn the directional valve, the other filter begins to work; the clogged element should be changed in time.
This series filter is widely used in the hydraulic system of heavy-duty mining and metallurgical machines.
Detailed Images
Other Products
Our Company

DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments, pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.

DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.

On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly.

Testing center also has the developed equiment for filter performance testing, which can make the comprehensive examination for filter element/cartridge performance. These can insure that company's filter with high capacity, long life, high reliable in full compliance with our customer's requirement.

Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
