Home > Products > Water valve > 2 Way 1 Inch Electric Flow Control Brass Water Ball Valve

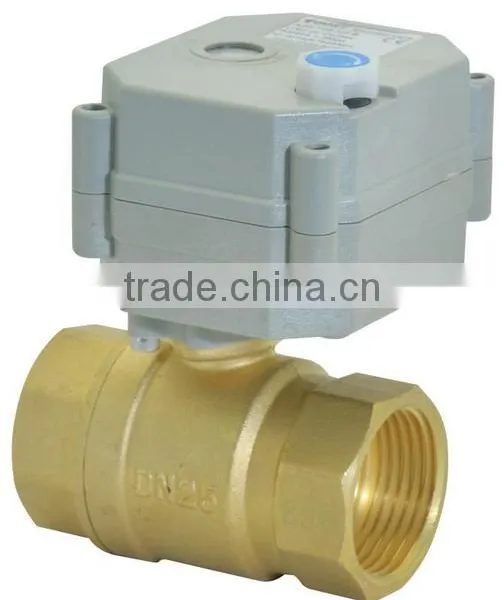

2 Way 1 Inch Electric Flow Control Brass Water Ball Valve
- 5000 Piece / Pieces per Month
- Shanghai Ningbo or Qingdao
- T/T Credit Card PayPal
Product Details
Standard or Nonstandard: | Standard | Structure: | Shutoff | Pressure: | Medium Pressure |
Power: | Other, electric power | Material: | Brass | Temperature of Media: | Normal Temperature |
Media: | Water | Port Size: | 1" | Place of Origin: | Zhejiang, China |
Model Number: | FH-T25-B2-B | Brand Name: | Forward | Application: | Other, Industrial Usage, Water Industrial Usage, Household Usage |
Product Description
Forward series straight-through motorized valve, Has compact size with smart shape, Perform reliably, with long life time, intelligent control, high torque actuators, low noise, no leak, and many other features.
2 Way 1'' Inches Motorized Electric Actuator Ball Valve(HF-T25-B2-B)
Product Characteristics:
1.Mini size and perform reliably for small equipment
2.Easy to install
3.All metal gear
4.Long life time —70000-100000 circles
5.Floating seal structure, good sealing,protection class IP67
6.Low working current, suitable for battery supply set
7.Manual override is safe and convenient
8.Passed CE certification and NSF61-G certification
Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.
Product size | 1" (NPT/BSP 1/4" 3/8" 1/2" 3/4" 1-1/4" ) Optional |
Maximum working pressure | 1.0MPa |
Circulation medium | Fluid, air |
Rated voltage | DC5V DC12V DC24 DC7-35V AC/DC9-35V AC/DC110-230V Optional |
Wiring control methods | CR2-01 CR2-02 CR3-01 CR3-02 CR3-03 CR3-04 CR4-01 CR5-01 CR5-02 CR7-01 CR7-02 CR7-03 CR7-04 Optional |
Working current | ≤500MA |
Open/close time | ≤5S |
Life time | 70000 times |
Valve Body material | Brass |
Actuator material | Engineering Plastics |
Sealing material | EPDM & PTFE |
Actuator rotation | 90 degree |
Cable length | 0.5M, 1.5M |
Max. torque force | 2 Nm |
Environment temperature | -15centigrade - 50 centigrade |
Liquid temperature | 2centigrade - 90centigrade |
Manual override | Yes |
Indicator | Yes |
Q: What is our main application?
A: Water meter , water leak detection system and water treatment etc equipment
HAV and fire works. Automatic drain system
Irrigation ect small control equipment
Q: What is Payment Terms?
A:Big order: 50% as deposit, the balance before shipment; Small order /sample order: T/T 100% payment in advance;
Q: Can I Mark My Own Brand On Valve?
A: Yes. Full order can be marked your brand and code if you want.
