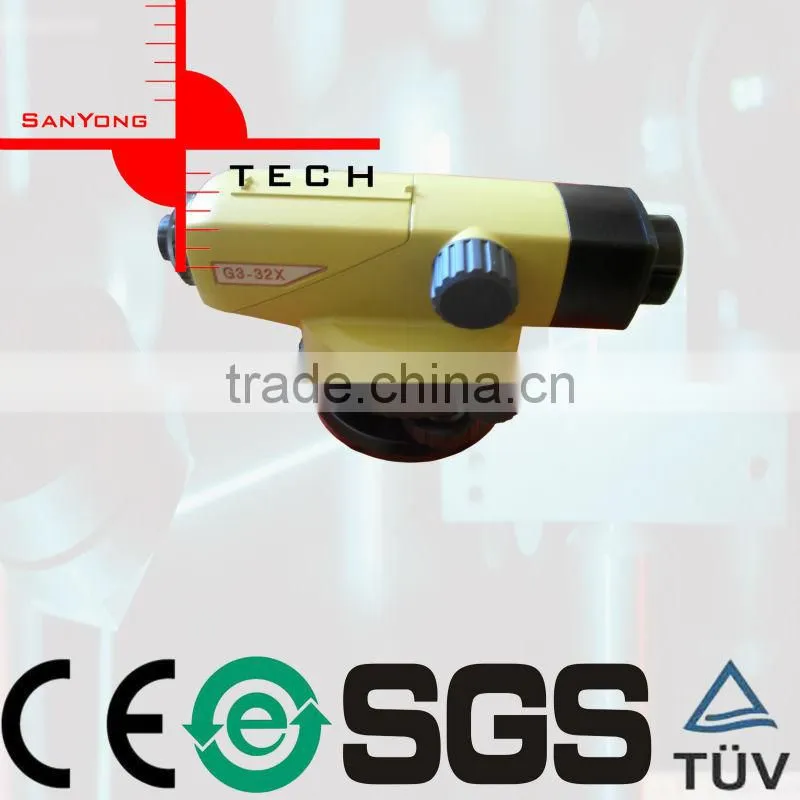

G3 china made electronic level instrument with best price
USD $100 - $120
/ Set
10 Sets(Min.Order)
- 1000 Set / Sets per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | SANYONTECH | Model Number: | G3 |
Product Description
G3 china made electronic level instrument with best price
Specification:
Technical | G3-32X | G3-30X | G3-24X |
Standard deviation per kilometer double-run | ≤ 1.5mm | ≤ 2.5mm | ≤ 2.5mm |
Magnification | 32X | 30X | 24X |
Objective Aperture | 45mm | 42mm | 40mm |
Resulation | ≤ 3.5 ″ | ≤ 3.5 ″ | ≤ 4″ |
Angle of View | 1 ° 20 ″ | 1 ° 25 ″ | 1 ° 25 ″ |
Image | Erect | ||
Reticle | Cross Reticle(Wedge Optional) | ||
Min View Distance | ≤ 0.3m | ||
View Distance Error | ≤ ± 0.4% | ||
Focusing Error | ≤ 0.5m | ||
Compensator | Magnatic Damping System | ||
Working Range | ≥ ± 15 ′ | ||
Compensating Error | ≤ ± 0.3 ″ | ||
Leveling Accuracy | ≤ ± 0.5 ″ | ||
Leveling Time | ≤ 2s | ||
Bubble | 10 ′ /2mm | ||
Scale | 1 ° or 1 gon | ||
Waterproof | IPX6 | ||
Accessories | Mannual,Plumb,Allen Key,Adjusting Pin,Cloth | ||
Weight | NW:1.8KGS GW:3.0KGS | ||
Package | 1 pcs in 1 plastic case and 1 carton, 4 small cartons in 1 big carton. |
