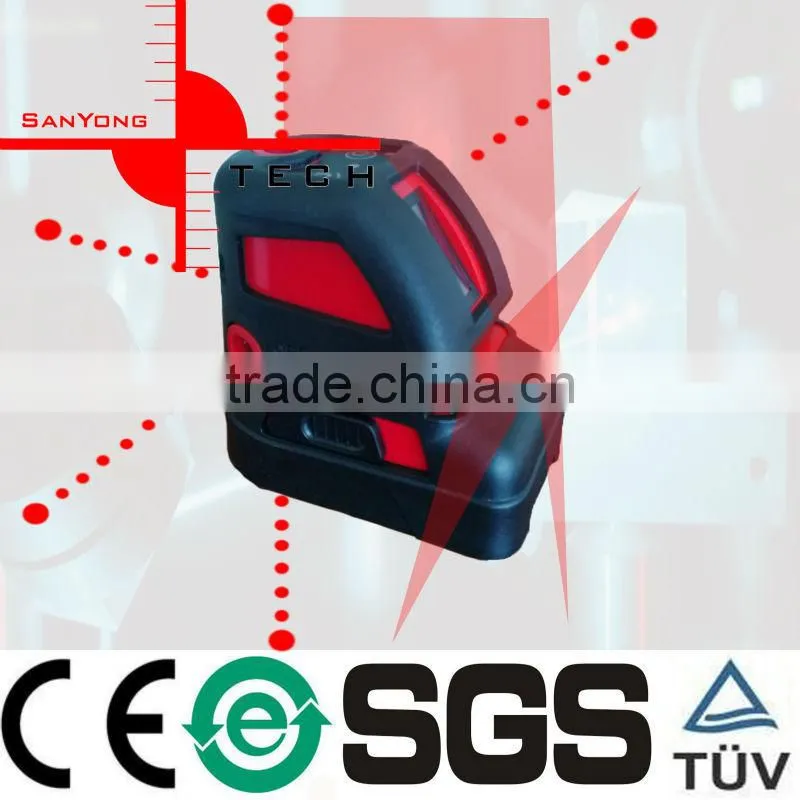

SY502 1V1H5D Two Beam Laser level
Features:
*Small size unit and can be hold in hand easily
*High visibility laser line .full orientations,high stability,handeling.
*5beams & 1V,1H(cross over the ceiling) ,laser lines have a large fan angle (150°) .
*Laser lines & laser dots can be combined or independent for operation.
*Laser line or laser dots blink if the unit is out of the self-leveling range.
*Center locking system to lock the pendulum while in transportation to avoid the vibration(patent).
*In /Outdoor function for option.(working with laser detector).
*Tilting fuction(turn off the warning when the laser exceed the leveling range by the lock)
*Compact size and handling housing with elastomeric rubber for easy carrying.
Specification:
* Lasers: 5dots,1V,1H,
* Horizontal line accuracy: ≤ ± 3mm /10m
* Vertical line accuracy: ≤ ± 3mm /10m
* Up beam accuracy: ≤4mm /10m
* Down beam accuracy: ≤6mm /10m
* Left right and front 3 dots leveling accuracy: ≤4mm /10m
* Superposition accuracy(Dots & lines): ≤ 5mm /10m
* Self-leveling range: 4°±1°
* Dot Working range: ≤30m
* Line Working range: ≤10m; >25m with Laser detector
* Diode power: 635nm±5nm, Class 2M
* Working time: ≥7hs
* Dimensions(LxWxH): 116x69x112mm
* Self-Leveling with magnetic pendulum.
