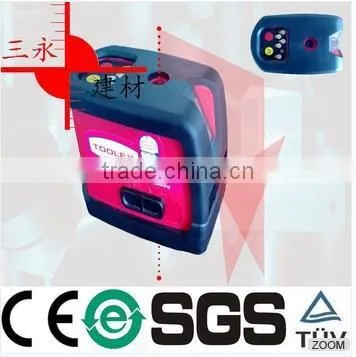

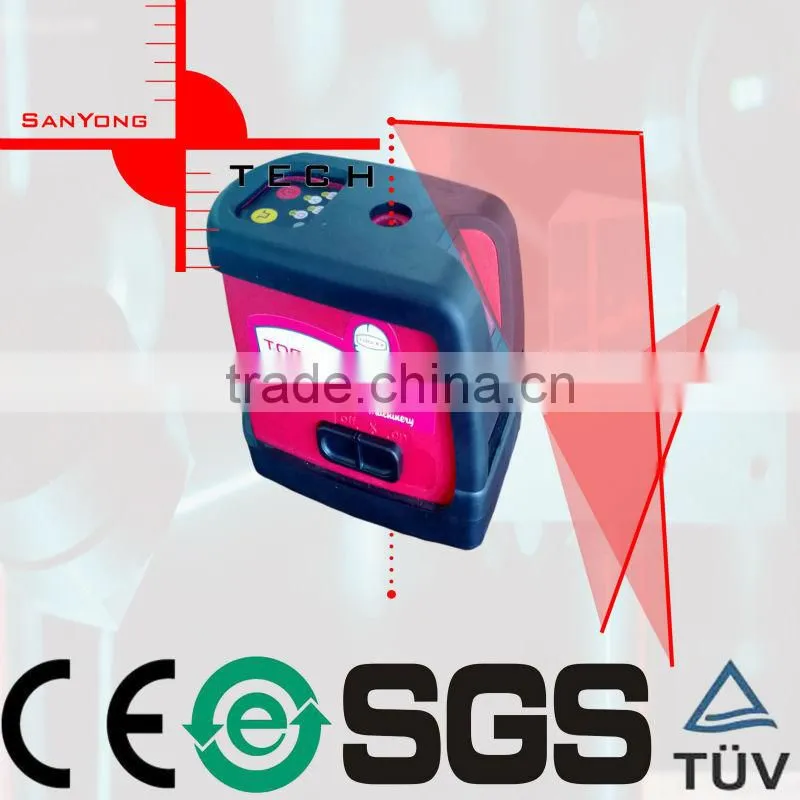

High Precision Automatic Vertical and Horizontal Cross Line Laser Level SY503
Specification:
1.Laser Class:10mW
2.Laser Wavelength:635±5mn
3.Laser Line Width:±2mm/5m
4.Horizontal Accuracy:±1mm/5m
5.Vertical Accuracy:±1mm/5m
6.Up dot Accuracy:±3mm/10m
7.Down Dot Accuracy:±1mm/2m
8.Automatic Leveling Range:±4°
9.Leveling Time:<4s
10.Laser Emit Angle:130°
11.Working Range:15m
12.Power:4 pcs batteries
13.Working Time:Around 15 hours
14.Size of main instrument: around115×75×105mm
15.Weight:0.49 kg
16.Working Temperature:-10°---+45°
17.Connection Screw:1/4"
Features:
1.Emit 1 horizontal and 1 Vertical line over ceiling,up and down dots.
2.Quick Leveling,sound and laser warning when out of working range.
3.Power indicator will shining together with sound warning when low power.
4.With magnatic walmount,easily for use.
5.Middle Locking System make sure the instrument can be transported more safety.
6.Indoor and outdoor use.
7.With 1/4 screw,can be connected with surveying tripod and camera tripod.
