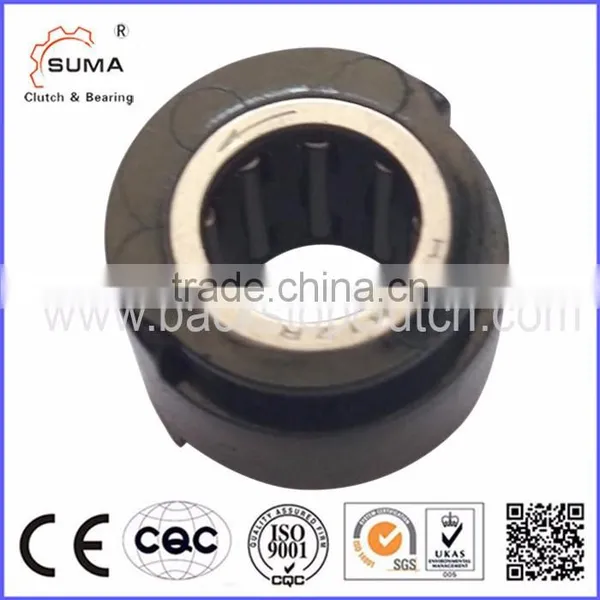

MODEL : HF3020 ONE WAY NEEDLE BEARINGS
BASIC INFORMATION
| Item | HF3020 one way needle bearings | |
| Brand | SUMA or OEM | |
| Type | needle | |
| Shaft Diameter | 30mm | |
| Outside Diameter | 36mm | |
| Inside Diameter | 30mm | |
| Suitable Draw up Bearing | HK3012 | |
| Material | GCr15 | |
| Precision | P6 | |

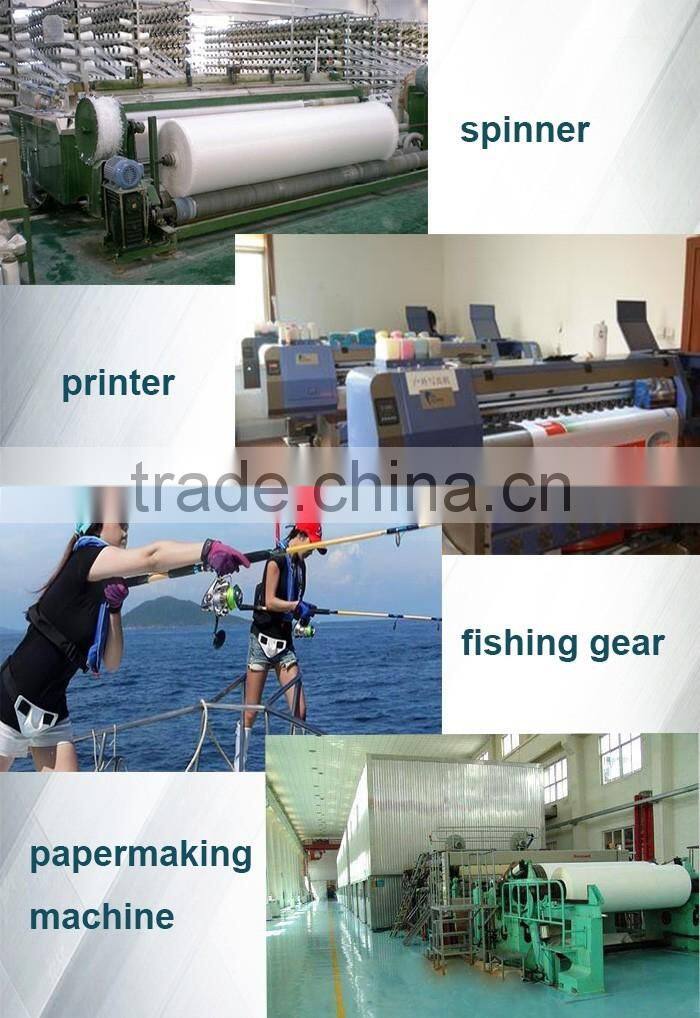

| Application | textile machines;printing machines;other machine | |
DATA LIST
| Shaft Diameter | Bearing Designation | Mass Approx | Borndary Dimensions | Pemissible Torque Md | Limiting Speed | Suitable Drawn Cup Bearings | ||||
| Fw | D | C | Rotating Shaft Min-1 | Rotatng Outer Ring Min-1 | ||||||
| mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | rpm | |||
| 3 | HF0306KF | 0.9 | 3 | 6.5 | 6 | 0.2 | 36000 | 7000 | HK0306TN | |
| 4 | HF0406KF | -- | 1 | 4 | 8 | 6 | 0.34 | 34000 | 8000 | HK0408TN |
| HF0406KFR | -- | 1 | 4 | 8 | 6 | 0.1 | 34000 | 8000 | HK0408TN | |
| 6 | HF0608KF | 2.8 | 6 | 10 | 8 | 1.5 | 20000 | 11000 | HK0608 | |
| HF0612KF | HF0612 | 3 | 6 | 10 | 12 | 1.76 | 23000 | 13000 | HK0608 | |
| HF0612KFR | HF0612R | 3 | 6 | 10 | 12 | 1.76 | 23000 | 13000 | HK0608 | |
| HF061210 | 3.5 | 6 | 12 | 10 | 3 | 20000 | 13000 | HK061208 | ||
| 8 | HF0812KF | HF0812 | 3.5 | 8 | 12 | 12 | 3.15 | 17000 | 12000 | HK0808 |
| HF0812KFR | HF0812R | 3.5 | 8 | 12 | 12 | 4 | 17000 | 12000 | HK0808 | |
| -- | HF061210 | 3.2 | 8 | 12 | 10 | 3 | 16000 | 12000 | HK0808 | |
| -- | HF081410 | 3.6 | 8 | 14 | 10 | 4.6 | 15000 | 11000 | HK081410 | |
| -- | HF081610 | 4.1 | 8 | 16 | 10 | 5.5 | 15000 | 11000 | HK081610 | |
| -- | HF081412 | 4 | 8 | 14 | 12 | 5 | 16000 | 12000 | HK081410 | |
| 10 | HF1012KF | HF1012 | 4 | 10 | 14 | 12 | 5.3 | 14000 | 11000 | HK1010 |
| HF1012KFR | HF1012R | 4 | 10 | 14 | 12 | 1.5 | 14000 | 11000 | HK1010 | |
| 12 | -- | HF1216 | 11 | 12 | 18 | 16 | 12.2 | 11000 | 8000 | HK1212 |
| 14 | -- | HF1416 | 13 | 14 | 20 | 16 | 17.3 | 9500 | 8000 | HK1412 |
| 16 | -- | HF1616 | 14 | 16 | 22 | 16 | 20.5 | 8500 | 7500 | HK1612 |
| 18 | -- | HF1816 | 16 | 18 | 24 | 16 | 24.1 | 7500 | 7500 | HK1812 |
| 20 | -- | HF2016 | 17 | 20 | 26 | 16 | 28.5 | 7000 | 6500 | HK2010 |
| 25 | -- | HF2520 | 30 | 25 | 32 | 20 | 66 | 5500 | 5500 | HK2512 |
| 30 | -- | HF3020 | 36 | 30 | 37 | 20 | 90 | 4500 | 4500 | HK3012 |
| 35 | -- | HF3520 | 40 | 35 | 42 | 20 | 121 | 3900 | 3900 | HK3512 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the HF3020 one way needle bearing ?
A: Usually HF3020 one way needle bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of HF3020 one way needl bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the HF3020 one way needle bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
