Home > Industrial Equipment & Components > Bearing > Needle Bearing > EWC;1WC Series Miniature Needle Bearing
EWC;1WC Series Miniature Needle Bearing
US$ 0.6 - 0.6
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
SUMA or OEM
Bore Size:
12,
Outside Diameter:
19,
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ; Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OWC410-203316 One Way FISHING REEL ELECTRIC BEARINGUS$ 0.9 - 0.9MOQ: 1 Piece -
HF0612R One-Way Needle Bearing (steel Springs) With Good QualityUS$ 1 - 20MOQ: 1 Piece
-
HF Hold Back Bearing With Steel Springs in Good QualityUS$ 1 - 1MOQ: 1 Piece
-
OWC 511 One Way Needle Bearing for Currency Counting MachineUS$ 0.1 - 10MOQ: 1 Piece
-
HF0612KF (plastic Springs) One Way Needle Bearing in Good QualityUS$ 0.5 - 6MOQ: 1 Piece
Brand Name
SUMA or OEM
Bore Size
12,
Outside Diameter
19,
Model Number
EWC; 1WC
Precision Rating
P0
Seals Type
non-sealed
Number of Row
Single Row
Place of Origin
Jiangsu, China
Product Description

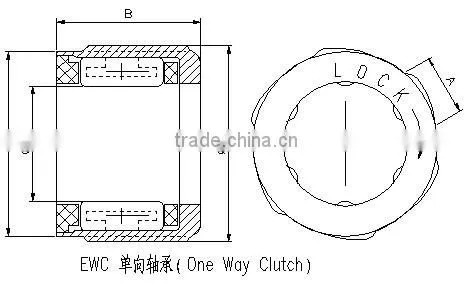

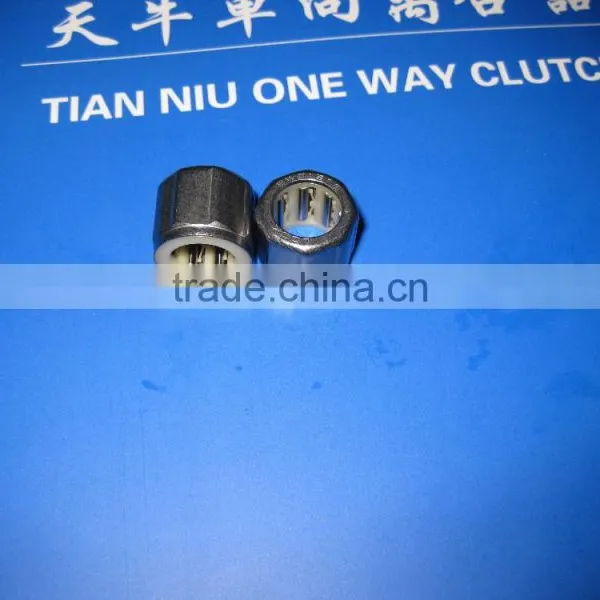

PRODUCT NAME: EWC One way clutch (outer lane has raised angles )
ID: The roller pin coupling, the addendum circle has the edges and corners, is advantageous for
the localization locking, uses on the fishing equipment, the automatic money counting machine.
MODEL: EWC
MATERIAL:Outer material: ST14 stainless steelNeedle rollerStainless steel or GCr15. Keep the
shelf: Strengthen nylon.
PACKING:Customize according to the needs of customer
DETAILS: EWCThis kind of clutch, the outer lane has raised angles, it is easy to make a
reservation to lock, used in the fishing tackle (able to bear the sea water and corrode ), some
paper money planes.
| shaft dia. | torque capacity | ||||||
| d | Fw | D1 | D2 | B | A | ||
| mm | mm | N.m (.) | Kg.cm(.) | ||||
| 4 | 4 | 8 | 8.4 | 6 | 2.6 | 0.08 | 0.82 |
| 4 | 8 | 8.4 | 6 | 2.6 | 0.15 | 1.53 | |
| 6 | 6 | 10 | 10.4 | 8 | 2.8 | 0.25 | 2.55 |
| 6 | 10 | 10.4 | 8 | 2.8 | 0.44 | 4.49 | |
| 6 | 10 | 10.4 | 8 | 2.8 | 0.44 | 4.49 | |
| 6 | 10 | 10.4 | 12 | 2.8 | 0.88 | 8.98 | |
| 8 | 8 | 12 | 12.4 | 9 | 2.6 | 0.49 | 5 |
| 8 | 12 | 12.4 | 9 | 2.6 | 0.88 | 8.98 | |
| 8 | 14.2 | 15 | 12 | 3.6 | 1.18 | 12.04 | |
| 8 | 14.2 | 15 | 12 | 3.6 | 1.96 | 20 | |
| 8 | 14.2 | 15 | 12 | 3.6 | 1.96 | 20 | |
| 8 | 14.2 | 15 | 14.5 | 3.6 | 2.65 | 27.04 | |
| 10 | 10 | 16 | 17 | 10 | 5 | 1.18 | 12.04 |
| 10 | 16 | 17 | 10 | 5 | 1.96 | 20 | |
| 10 | 16 | 17 | 12 | 5 | 1.37 | 13.98 | |
| 10 | 16 | 17 | 12 | 5 | 2.35 | 23.98 | |
| 10 | 16 | 17 | 12 | 5 | 2.35 | 23.98 | |
| 12 | 12 | 18 | 19 | 16 | 5.1 | 6.28 | 64.08 |
Certifications

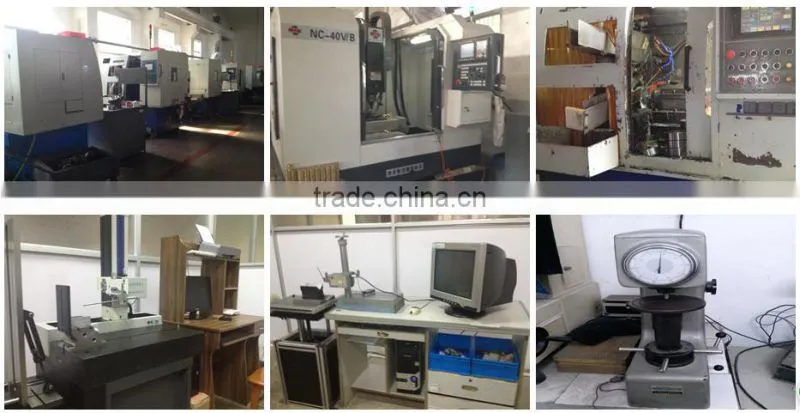

Production and Test
