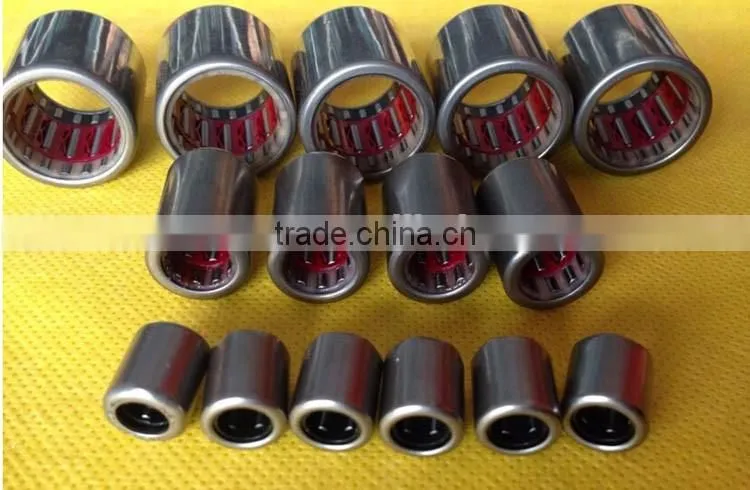

RC RCB Series One Way Needle Roller Bearing
- Shanghai Ningbo for rc needle roller bearing
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
One Way Needle Bearing EWC1216 Drawn Cup Needle Clutch
-
Needle Roller Clutch One Way Bearing Wholesaler FC10
-
HF0306 flat cage needle roller bearings with steel springs
-
Drawn Cup Needle Clutches Bearing for Wheelbarrow RCB061014-FS
-
FCB20 indexing clutch cam follower bearing for packaging machines
-
FCB20 indexing freewheel cam follower bearing for packaging machines
Product Details
| Brand Name | SUMA | Bore Size | 3.175, 25.4 | |
| Outside Diameter | 7.15, 33.338 | Model Number | RCB RC | |
| Precision Rating | P6 | Seals Type | Non sealed | |
| Place of Origin | Jiangsu, China |
Product Description

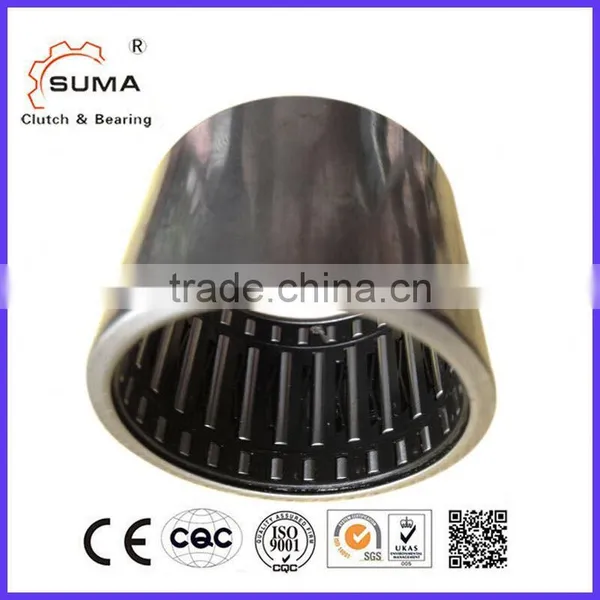

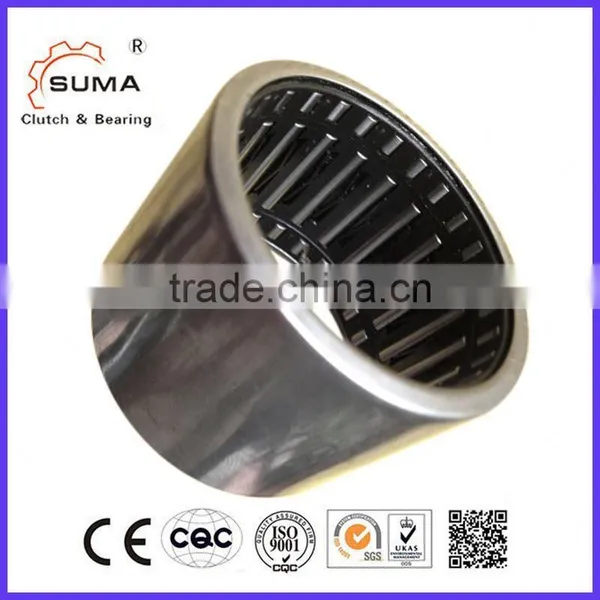

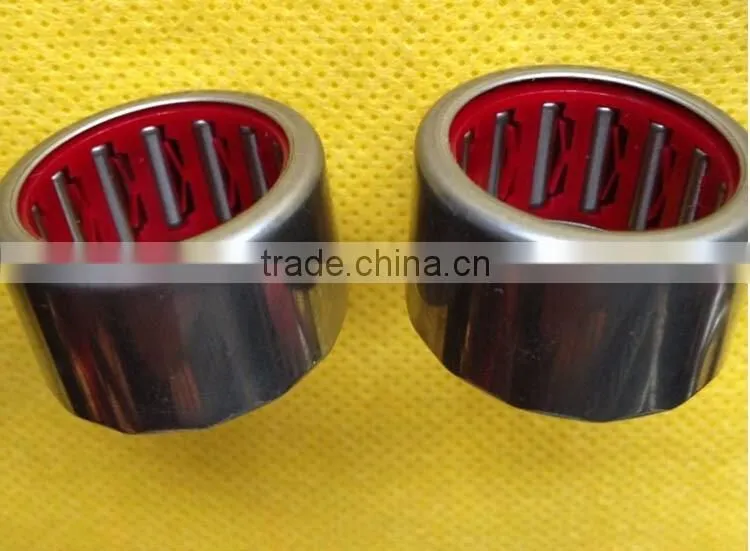

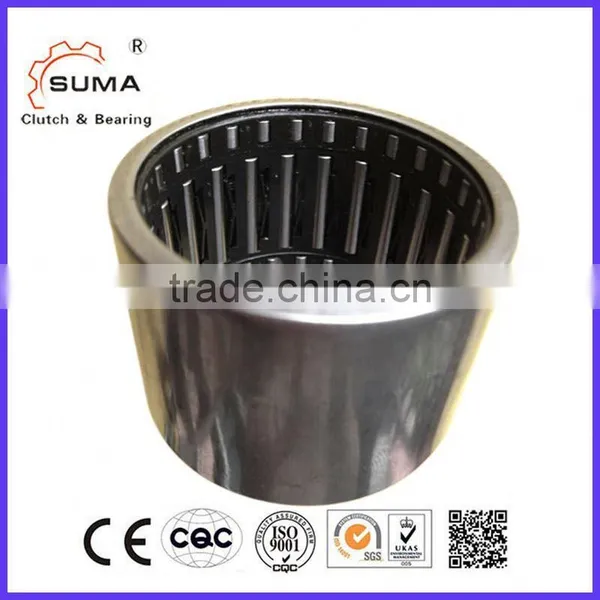

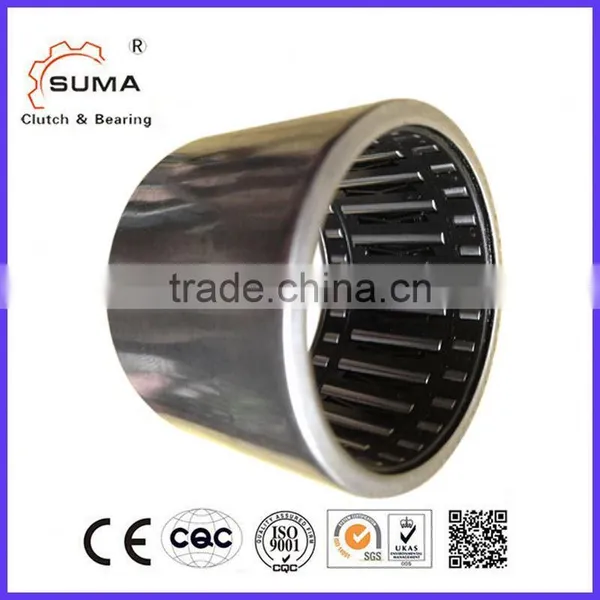

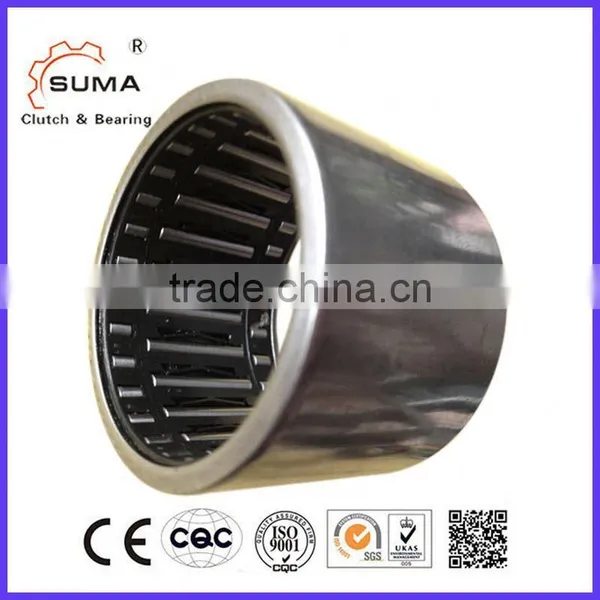

RC RCB Series One Way Needle Roller Bearing
Features of RC Needle roller bearing
♦Three pieces needles equipped to be locking assembly function.
♦Torque increases double of the normal HF Model.
♦Allow high indexing frequencies due to their low mass .
Catalogue of RC needle roller bearing for your choice
| Bearing Designation | Mass Approx | Designation | |||
| Fw | D | C | Torque | ||
| g | mm | Nm | |||
| RC02 | 2 | 3.175 | 7.15 | 6.35 | 0.32 |
| RC040708 | 3.5 | 6.35 | 11.112 | 12.7 | 2.03 |
| RC040708-FS | 3.5 | 6.35 | 11.112 | 12.7 | 2.03 |
| RC061008 | 4.7 | 9.525 | 15.875 | 12.7 | 5.45 |
| RC061008-FC | 4.7 | 9.525 | 15.875 | 12.7 | 5.45 |
| RC081208 | 9.2 | 12.7 | 19.05 | 12.7 | 8.84 |
| RC081208-FS | 9.2 | 12.7 | 19.05 | 12.7 | 8.84 |
| RC101410 | 14.5 | 15.875 | 22.225 | 15.88 | 16.9 |
| RC101410-FC | 14.5 | 15.875 | 22.225 | 15.88 | 16.9 |
| RC121610 | 16.2 | 19.05 | 25.4 | 15.88 | 23.3 |
| RC121610-FS | 16.2 | 19.05 | 25.4 | 15.88 | 23.3 |
| RC162110 | 17 | 25.4 | 33.338 | 15.88 | 49.6 |
| RC162110-FC | 17 | 25.4 | 33.338 | 15.88 | 49.6 |
| RCB061014 | 12 | 9.525 | 15.875 | 22.22 | 4.83 |
| RCB061014-FS | 12 | 9.525 | 15.875 | 22.22 | 4.83 |
| RCB081214 | 16 | 12.7 | 19.05 | 22.22 | 7.9 |
| RCB081214-FC | 16 | 12.7 | 19.05 | 22.22 | 7.9 |
| RCB101416 | 21.3 | 15.875 | 22.225 | 25.4 | 15.4 |
| RCB101416-FS | 21.3 | 15.875 | 22.225 | 25.4 | 15.4 |
| RCB121616 | 26.5 | 19.05 | 25.4 | 25.4 | 20.9 |
| RCB121616-FC | 26.5 | 19.05 | 25.4 | 25.4 | 20.9 |
| RCB162117 | 44.8 | 25.4 | 33.338 | 26.99 | 45 |
| RCB162117-FS | 44.8 | 25.4 | 33.338 | 26.99 | 45 |

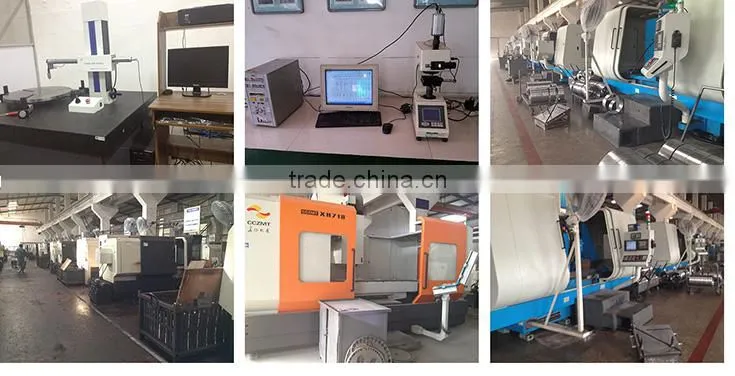

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the rc needle roller bearing ?
A: Usually rc needle roller bearing are in roll pack. It can be done as your specfic demands.
Q: Can i get the samples of rc needle roller bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the rc needle roller bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
