Home > Products > One way needle bearing > FCB20 indexing clutch cam follower bearing for packaging machines
FCB20 indexing clutch cam follower bearing for packaging machines
USD $5 - $8
/ Piece
10 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- Shanghai ; Ningbo
- T/T L/C D/P D/A Credit Card
You May Like
-
162250 GA CYLINDRICAL ROLLER BEARING High Speed Wire Rod Rolling Mill Bearing
-
F-546485.01. KL-H95 DEEP GROOVE BALL BEARING High Speed Wire Rod Rolling Mill Bearing
-
Z-507333.ZL Four-row cylindrical bearings High Speed Wire Rod Rolling Mill Bearing
-
Z-504547.ZL Cylindrical Roller Bearing Multi Row High Speed Wire Rod Rolling Mill Bearing
-
Z-533575.ZL Four - row Cylindrical roller bearing High Speed Wire Rod Rolling Mill Bearing
-
507335.KL Deep Groove Ball Bearing High Speed Wire Rod Rolling Mill Bearing
Product Details
| Brand Name: | SUMA | Bore Size: | 26, | Outside Diameter: | 26, |
| Model Number: | FCB20 | Precision Rating: | P6 | Seals Type: | no-sealed |
| Place of Origin: | Jiangsu, China |
Product Description
Product Description

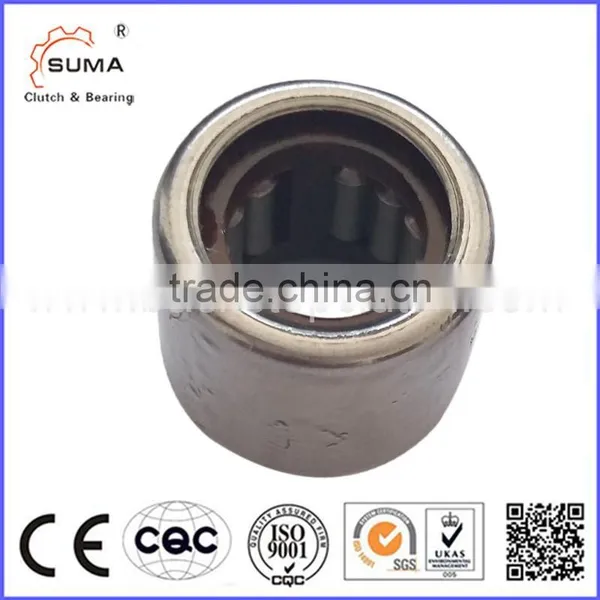

MODEL : FCB20 HOLD BACK CLUTCH BEARING
INTRODUCTION
| Item | FCB20 One Way Needle Bearing |
| Material | Gcr15, Stainless steel |
| Size (mm) | 26x26x26 |
| Weight (g) | 27 |
| Torque (N.m) | 28.5 |
| Precision | P6 |
| Gurantee | 1 year |
| Feature | Having a small cross section still has a higher load bearing capacity, therefore, especially suitable for the radial space-constrained. |
| Application | Suitable for unidirectional rotation device. |
| Operating temperature range | -30 ° C to +180 ° C |
| Customize | Accept |
DATA SHEET
| Type | Weight (g) | Dimesion | |||
| Fw | D | C | Rotational torque (N.m) | ||
| FC4K | 1 | 4 | 8 | 6 | 0.34 |
| FC6 | 3 | 6 | 10 | 12 | 1.76 |
| FC6K | 3 | 6 | 10 | 12 | 1.76 |
| FC8 | 4 | 8 | 14 | 12 | 5.3 |
| FCL8K | 3.5 | 8 | 12 | 12 | 5 |
| FC10 | 4.8 | 10 | 16 | 12 | 6 |
| FCL10K | 4 | 10 | 14 | 12 | 5.3 |
| FC12 | 11 | 12 | 18 | 16 | 12.2 |
| FC14K | 13 | 14 | 20 | 16 | 17.3 |
| FC16 | 14 | 16 | 22 | 16 | 20.5 |
| FC20 | 17 | 20 | 26 | 16 | 28.5 |
| FC25 | 30 | 25 | 32 | 20 | 66 |
| FC30 | 36 | 30 | 37 | 20 | 90 |
| FC35 | 40 | 35 | 42 | 20 | 121 |
| FCB8 | 10 | 14 | 14 | 20 | 5 |
| FCB10 | 15 | 16 | 16 | 20 | 10 |
| FCB12 | 18 | 18 | 18 | 26 | 12.2 |
| FCB16 | 22 | 22 | 22 | 26 | 20.5 |
| FCB20 | 27 | 26 | 26 | 26 | 28.5 |
| FCB25 | 44 | 32 | 32 | 30 | 66 |
| FCB30 | 51 | 37 | 37 | 30 | 90 |
| FCB35 | 58 | 42 | 42 | 30 | 121 |
Certifications

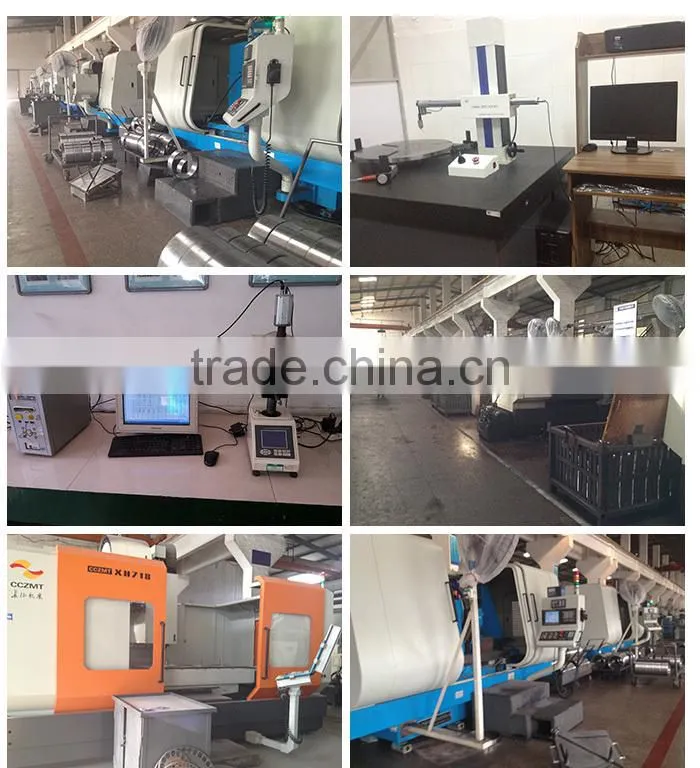

Production and Test
Contact Us
- Changzhou Suma Precision Machinery Co., Ltd.
- Contact nameEllen zhang
- Phone0086-519-85858018
- AddressDonghua Village, Hutang Town, Wujin Dist.
