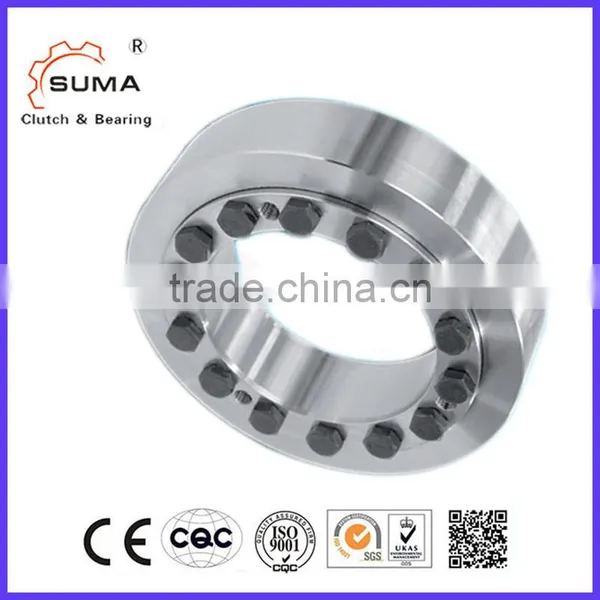

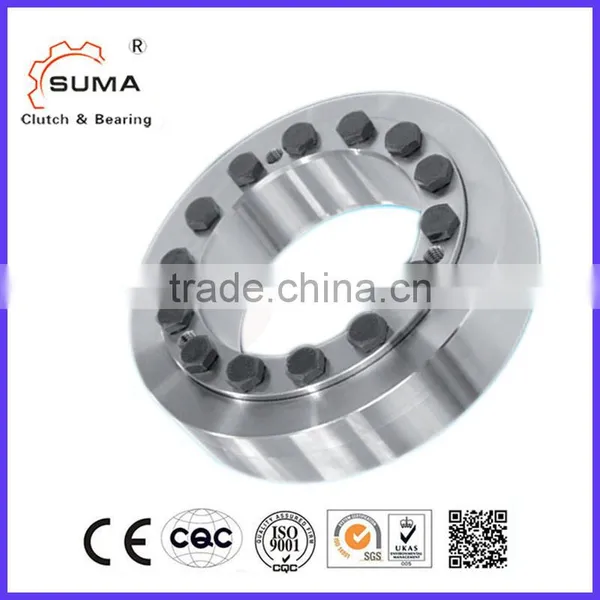

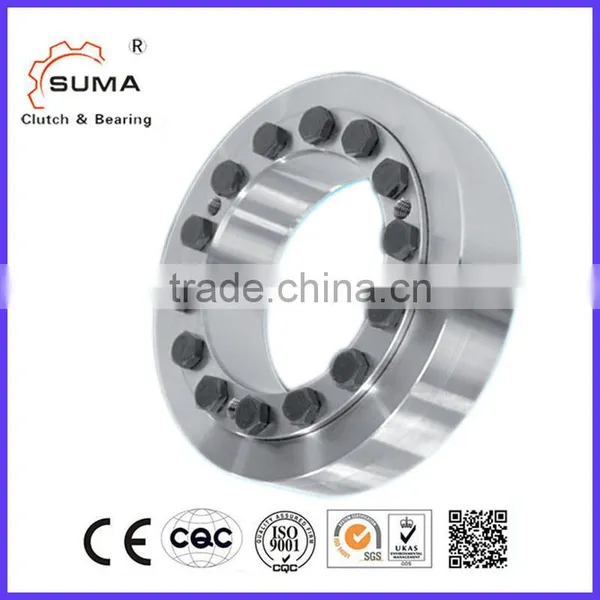

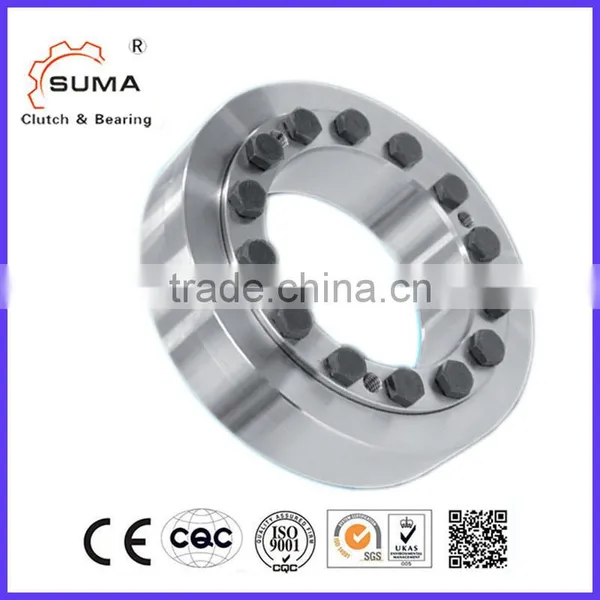

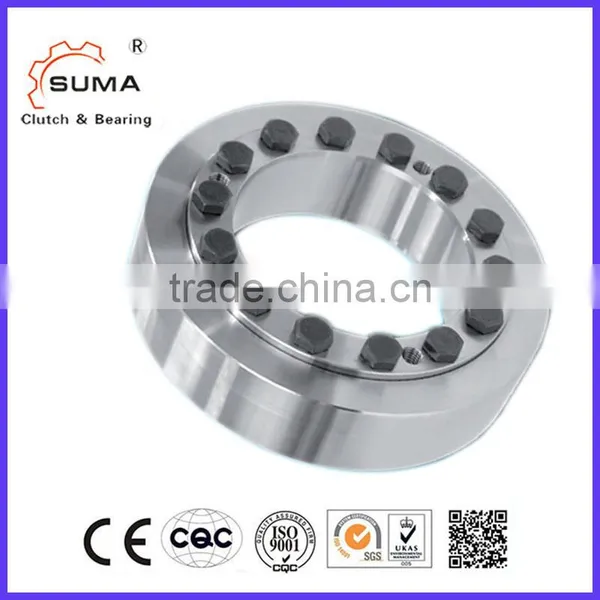

Two Part Design Rigid Stainless Steel Shrink Disc RLK606
Features of stainless steel shrink disc
• High transmissible torques
• Easy, quick assembly by tightening clamping screws without a torque wrench
• Distance-controlled assembly ensures guaranteed transmissible torques
• Enclosed design, therefore impervious to dirt
• True running even at high speeds
• Centres the hollow shaft or hub to the shaft
• For hollow shafts or hubs with outer diameters of 24 mm up to 155 mm
Product name |
Shrink Disc |
Model |
RLK606 |
Material |
Stainless Steel |
Inner Diameter |
24mm |
Outer Diameter |
50mm |
Thickness |
22mm |
Weight |
0.3kg |
Application |
Low space equipment |
Package |
Wooden box, or customizable |
Payment terms |
TT, L/C, D/A, D/P, Western Union, Paypal |
Delivery time |
7-10 days after order confirmed |

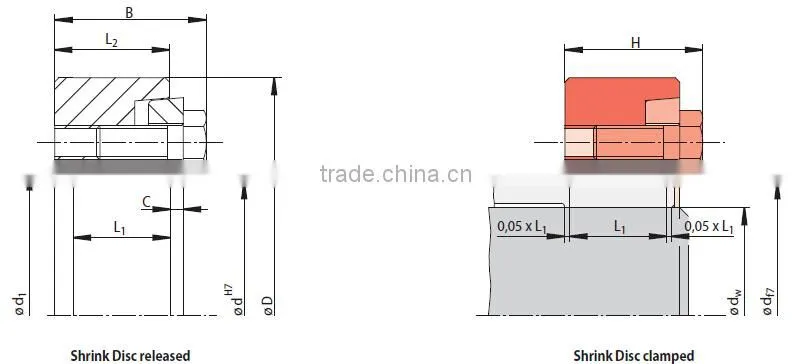

Technical Parameter of stainless steel Shrink discs
More Models for your reference
Surfaces
Average surface roughness at the contact surfaces between the shaft and the hollow shaft
Ra ≤ 3,2 μm.
Materials
The following apply to the shaft and the hollow shaft:
• Yield strength Re ≥ 340 N/mm2
• E-module ca. 206 kN/mm2
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the stainless steel shrink disc?
A: Usually stainless steel shrink disc are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of stainless steel shrink disc from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the stainless steel shrink disc in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
