Quick Assembly RLK250 Cone Clamping Elements with Factory Price
Features of cone clamping elements
• Centres the hub to the shaft
• Radial flat height is particularly suitable for small hub outer diameters
• Quick assembly by central groove nut
• Easy to release
• For shaft diameters between 15 mm and 70 mm
Product name |
Shaft hub connection |
Model |
RLK250 |
Material |
GCr15 |
Inner Diameter |
15mm |
Outer Diameter |
25mm |
Thickness |
16.5mm |
Weight |
0.06kg |
Application |
Low space equipment |
Package |
Wooden box, or customizable |
Payment terms |
TT, L/C, D/A, D/P, Western Union, Paypal |
Delivery time |
7-10 days after order confirmed |

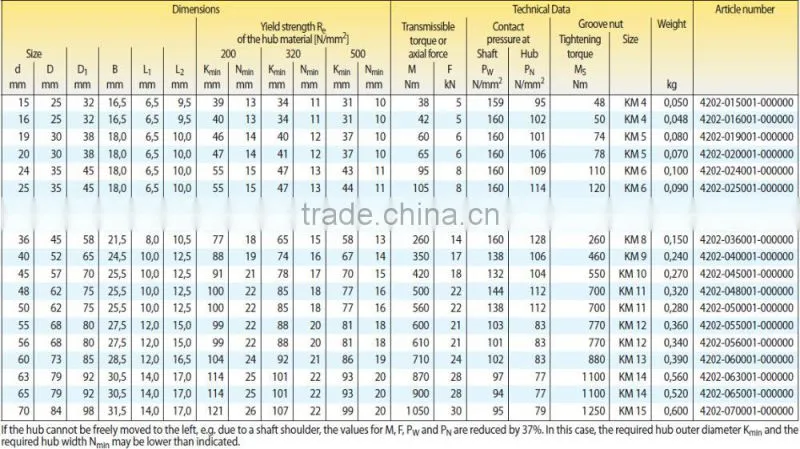

Technical Parameter of cone clamping elements manufacturer
More Models for your reference
Tolerances
• h8 for shaft diameter d
• H8 for hub bore D
Surfaces
Average surface roughness at the contact
surfaces between the shaft and the hub bore: Ra ≤ 3,2 μm.
Materials
The following apply to the shaft and the hub:
• E-module ≥ 170 kN/mm2
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the cone clamping elements manufacturer?
A: Usually cone clamping elements are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of cone clamping elements from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the cone clamping elements in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
