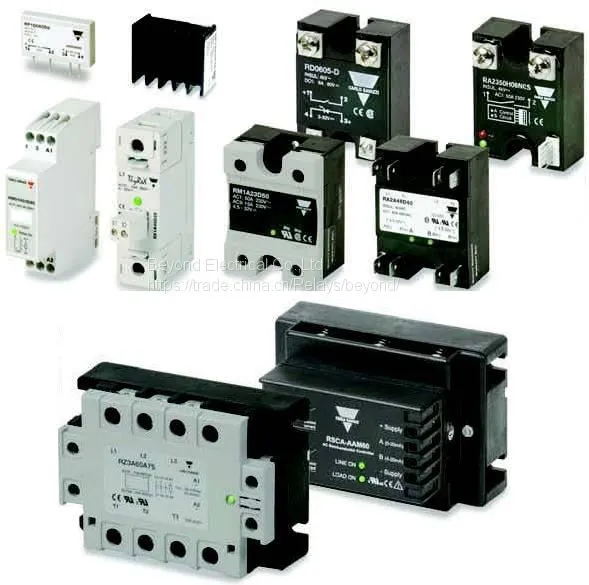

Help CenterThree Phase AC Solid State Relay RZ3A40D55
Related Products
-
Analog Input Solid State Relay RM1EUS$ 50 - 55MOQ: 100 Pieces -
Peak Switch Solid State Relay RM1CUS$ 50 - 55MOQ: 100 Pieces
-
Three Phase Motor Reversing Power Module RR2I4005HDPUS$ 90 - 105MOQ: 100 Pieces
-
Motor Controller Soft Starting Soft Stopping RSC-AAM60US$ 90 - 105MOQ: 100 Pieces
-
Motor Controller Soft Starting Soft Stopping RSC-HD0M60US$ 90 - 105MOQ: 100 Pieces
Introduction:
the industrial, three phase relay with antiparallel thyristor output is the most widely used industrial SSR due to its multiple application
Possibilities.the relay can be used for resistive, inductive and capacitive loads. the zero switching relay switches on when the
Sinusoidal curve crosses zero and switches off when the current crosses zero. the instant on relay with DC control input can be used
for phase control. the built in varistor secures transient protection for the heavy industrial applications, and the LED indicates the status of the control input. the clip on cover is securing touch protection to IP 20. Protected output terminals can handle cables up to 16mm2
3PSS60A75,RZ3A40LD25,RZ3A40LD40,RZ3A40LD55,RZ3A40LD75,RZ3A40D25,RZ3A40D40,RZ3A40D55,RZ3A40D75,RZ3A40A25,RZ3A40A40,RZ3A40A55,RZ3A40A75,RZ3A60LD25,RZ3A60LD40,RZ3A60LD55,RZ3A60LD75,RZ3A60D25,RZ3A60D40,RZ3A6055,RZ3A60D75,RZ3A60A25,RZ3A60A40,RZ3A60A55,RZ3A60A75
Property:
Zero switching or instant-on
3 phase AC Solid State Relay
Direct copper bonding (DCB) technology
LED indication for input and overtemperature alarm status
Integrated with heatsink,Fan,DIN-rail mounting
Built-in varistor 230, 400, 480, 600V
Internal snubber networks
Clip-on IP10 protection cover
Self-lifting terminals
Housing free of moulding mass
Nput ranges: 4-32VDC
Operational current:3X25,40,55 or 75AACrms
Operational voltage:up to 600VACrms
Blocking voltage: up to 1400Vp
Opto isolation: > 4000VACrms
