Home > Products > New Products > Single Screw Pump
Single Screw Pump
- 3000 Unit / Units per Month
- Qingdao
- T/T
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Shandong, China | Brand Name: | RUITE | Model Number: | G50-2V-W105 |
Theory: | Rotary Pump | Structure: | Screw Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, power |
Pressure: | Low Pressure | Application: | Other, liquid transfer |
Product Description

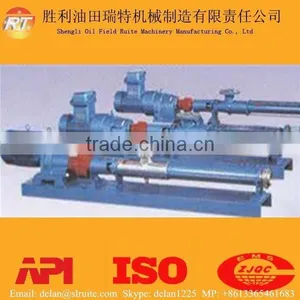

Single Screw Pump
Food industry: wine for the winery transportation, waste and liquor flow in the cast ingredient delivery
Textile industry: synthetic fiber for transporting liquid, liquid glue, dye, ink, nylon powder-liquid.
Manufacturing industry: pulp black liquor delivery
Oil industry: for a variety of oils, grease products, floor pump
Chemical industry: for transporting a variety of suspensions, latex, acid, alkali, salt solution, etc.
Shipbuilding: for delivery residues, stripping and sewage, water, etc.
Construction: transporting mortar, plaster
Nuclear industry: for transporting radioactive liquid particles
Metallurgy and mining industry: for delivery oxides and wastewater, mine drainage and liquid explosives delivery
Power plant: CWS for delivery
Maximum Pump Pressure
| 1.6MPa |
|
Maximum Output Pressure Single-stage Double-stage |
0.6MPa 1.2MPa |
Also consider the pressure seal allowed |
Maximum Degree of Vacuum | 0.085MPa |
Depends on operating conditions, stages, direction of rotation and shaft seal.
|
Maximum Medium Temperature
| 150℃ | Depends on the medium and elastomer material used in pump delivery. |
Maximum Viscosity | 270000cst | Depends on the medium delivered ,pump speed and specification. |
Maximum Permissible Solids Content
| 60% | Depends on the pump size and the solid features and size. |
Shengli Oil Field Ruite Machinery Manufacturing Co., Ltd has been founded in 2002, integrates the research, development, production and marketing of oilfield equipment such as downhole screw pump, multiphase pump, downhole motor, pump unit, wellhead assembly, medium and high pressure valves, X-mas, well control throttle pipe assembly, flow meters, oil rig brake blocks, etc.
We set complete manufacturing workshops including casting, forging, heat treatment, welding, machining & finished product assembly and advanced R&D laboratories. With strit quality control system and high qualification of
ISO9001:2008, API and TS, we have been the member of first-tier supply
network of Sinopec, PetroChina and No.1 member of China Oil Energy,
enjoying good reputation among North America, South America, Russia,
Kazakhstan as well as domestic markets.
R&D Laboratory
QC System
Certificates
Factory Inspection & Exhibition
