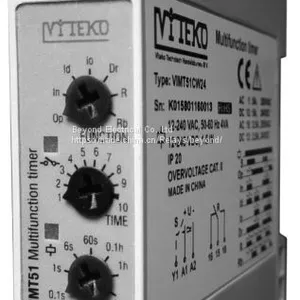

Multifunction Timer Relay VIMT51CW24

Multifunction Timer Relay VIMT51CW24 thumbnail-1
Multifunction Timer Relay VIMT51CW24 photo-1
US$ 50 - 55 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
VITEKO
Place of Origin:
China
Model Number:
VIMT51CW24
Contact Supplier Request Quote Chat Now
Beyond Electrical Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name VITEKO
Place of Origin China
Model Number VIMT51CW24
Size Miniature
Usage General Purpose
Contact Load High Power
Protect Feature Epoxy
Theory Time Relay

Introduction:
Multivoltage timer with 7 knob selectable functions and 7 knob selectable timer ranges within 0.1s and 100h.

for mounting on DIN rail. Housing 17.5 mm wide for SPDT version,Wide power supply range:12 to 240 VAC,VDC

Selectable time range 0.1 s to 100 h

Property:
7 knob selectable functions
Op:delay on operate
in:interval
Io:interval on trigger open
ID:double interval
Dr:delay on release
R:symmetrical recycler on first
Rb:symmetrical recycler off first
Automatic or manual start
Repeatability no more than 0.2%
Output: 5 A SPDT
for mounting on DIN rail in accordance with DIN EN 50 022
Combined AC and DC power supply
LED indication for relay status and power supply ON.

Product Tags: multifunction timer relay , delay on operate timer relay , delay on release timer relay
